Curiosis Celloger Mini Plus Automated Live Cell Imaging System
Curiosis Celloger Mini Plus Automated Live Cell Imaging System
Buy Curiosis automated live cell imaging systems from MSE supplies at the best value.

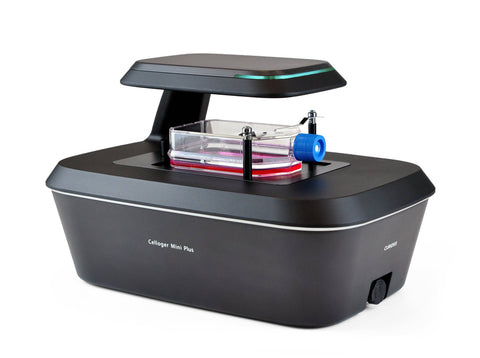

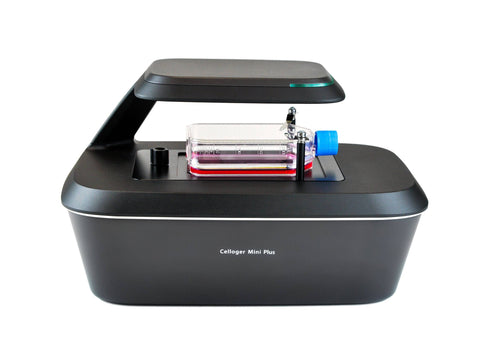

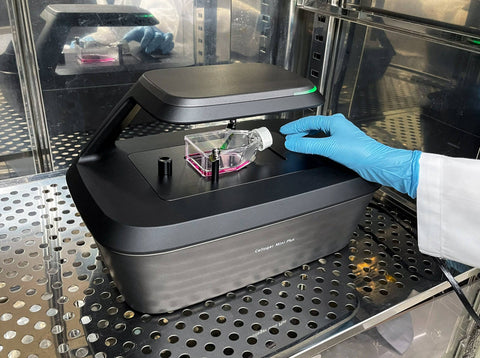

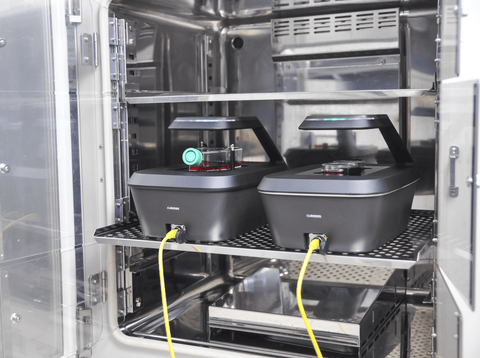

Celloger Mini Plus is an automated live cell imaging system that is equipped with an advanced fluorescence and bright field microscopy, autofocusing and real time multi-position imaging technology. Improve your research productivity by performing real-time cell monitoring and analysis. Perform complex research and data analysis without taking the cells out of the CO2 incubator, saving you precious time and effort while maintaining the quality of your experiments. It is equipped with advanced fluorescence and bright-field technology providing the highest quality images and time-lapse videos. It provides you all the tools you need to acquire the best quality images and accurate research results. Various cell-based research workflows and applications such as wound healing assay, cell proliferation, cytotoxicity assay, transfection efficiency, co-cultures, cell growth and confluence can be examined using this all-around system.
MSE supplies is an authorized distributor of Curiosis live cell imaging products and accesories.
What is live cell imaging?
Live cell imaging is a method of examining living cells over a period of time using the images acquired by time-lapse microscopy. Dynamic cellular processes and events are being observed in real time to study and understand the biological changes of living cells. Live cell imaging has become an essential method in many fields of life science, especially in research areas such as cell biology, stem cells, developmental biology, pharmaceuticals, drug discovery, and more.
Key Features
- Real time walk away monitoring
- Multi-position imaging
- Stable imaging performance
- Compatible with various vessel types
Applications
- Cell monitoring: study morphological changes of the cell and find the best time for subculture or harvest.
- Wound healing assay: check cell migration by scratching the cell and monitor wound healing.
- Cell proliferation: quantify the increasing number of cells and provide the growth curve.
- Cytotoxicity assay: stimulation of healthy cells to compare cell activity over drug effects.
-
Transfection efficiency assessment: inserting genes into eukaryotic cells to assess efficiency.
Models
- SKU # CRCLG-MPB02: Celloger Mini Plus Bright Field 2X
- SKU # CRCLG-MPB04: Celloger Mini Plus Bright Field 4X
- SKU # CRCLG-MPB10: Celloger Mini Plus Bright Field 10X
- SKU # CRCLG-MPBG04: Celloger Mini Plus Bright Field Green Fluorescence 4X
- SKU # CRCLG-MPBG10: Celloger Mini Plus Bright Field Green Fluorescence 10X
- SKU # CRCLG-MPBR04: Celloger Mini Plus Bright Field Red Fluorescence 4X
- SKU # CRCLG-MPBR10: Celloger Mini Plus Bright Field Red Fluorescence 10X
Technical Data
| Dimension (mm) | 226 x 358 x 215 |
| Weight (kg/lbs) | 5.6 / 12.3 |
| Objective lens | 4X / 10X |
| Field of view 4X (mm) | 1.4 x 1.0 |
| Field of view 10x (mm) | 0.5 x 0.4 |
| Travel range (mm) | 75 x 117 |
| Imaging modes | Brightfield, Fluorescence (Green / Red) |
| Fluorescence Green | Excitation (470/40x) / Emission (510lp) |
| Fluorescence Red | Excitation (540/25x) / Emission (575lp) |
| Light Source | LED |
| Camera | 5MP CMOS |

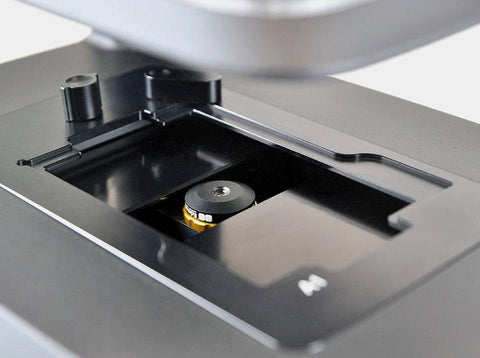

| Stage | Motorized XYZ |
| Imaging positions | Multiple |
| File export format | TIFF, AVI (JPEG, PNG) |
| Culture vessels | Flask, dish, well plate, slide |
|
Operating environment (Co) |
10~40, 20~95% humidity |
| Power requirements ~50/60Hz (V) | 100-240 |
| Output ports | Ethernet |
| O/S required | Window 10 |
| Recommended processor | CPU 3G |
| Recommended storage | 1TB |
Curiosis Inc, is a company that develops, produces, and supplies laboratory equipment in the field of life science. They provide solution for improving the efficiency of cell-based research processes and endeavor to become a leading company in the bioindustry. Based on their core technologies in mechanical engineering, biophysics, and electrical engineering; they aim to provide high-quality products to their customers as well as contribute towards a better future for humanity.
