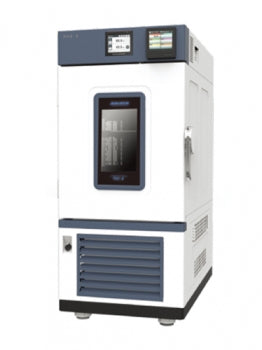

Lab Companion Temperature & Humidity Chamber Basic (TH3-E)
Lab Companion Temperature & Humidity Chamber Basic (TH3-E)
Buy Lab Companion products from MSE Supplies at the best value.
MSE Supplies offers Lab Companion Temperature & Humidity Chamber Basic Type (TH3-E) from Jeio Tech. Despite with limited test conditions, it is stable in climate control and a cost-beneficial solution for the customer.
Country of Origin: Made in South Korea
Manufacturer: Jeio Tech
Main Features:
- Convenient operation with 5.6 inch color touch display controller.
- Water level check function enables water replenishment at the right time.
- The door part is a double-sealed structure that provides enhanced air tightness.
- Ensures that the surface temperature is kept below 60°C.
- Overcurrent and short circuit protection of device.
- Easy observation of samples with tempered glass door with built in heating wire and LED lamp.
- PID zone subdivided into 9 zones for more precise control stability.
Accessories:
- Wire Shelf
- Perforated Shelf
- Recorder (Paper)
- Recorder (Digital)
- Cable Port
- Signal Lamp
- Water Purifier
- Inner Glass Door
- Stand (1 Stage)
- Stand (2 Stage)
For accessories, please contact us so we can help you choose appropriate products for your needs.
Technical Specifications:
|
SKU# |
AAH841102K |
AAH841112K |
|
|
Electrical requirements (AC230V, 1ph, 50~60Hz) |
15A |
16A |
|
|
Interior dimension |
Chamber volume (L) |
201 |
398 |
|
Width (inch) |
19.7 |
23.6 |
|
|
Depth (inch) |
26.4 |
32.7 |
|
|
Height (inch) |
23.6 |
31.5 |
|
|
Quantity of shelves (standard/max.) |
2 / 9 |
2 / 10 |
|
|
Distance of between shelves (inch) |
1.6 |
||
|
Max. load per shelf (lbs) |
44.1 |
55.1 |
|
|
Permitted total load (lbs) |
110.2 |
132.3 |
|
|
Cable port (Ø, inch) |
2.0 |
2.6 |
|
|
Water tank capacity (L) |
20 |
20 |
|
|
Weight (lbs) |
440.9 |
595.2 |
|
|
Temperature data |
Range without humidity (℃ / ℉) |
0 to 90 / 32 to 194 |
|
|
Fluctuation (±℃ / ℉) |
0.5 / 0.9 |
||
|
Variation (±℃ / ℉) |
0.8 / 1.44 |
||
|
Heating time (0℃ to 90℃) (min) |
80 |
||
|
Cooling time (90℃ to 0℃) (min) |
90 |
||
|
Humidity data |
Range (%RH) |
35 to 85 |
|
|
Fluctuation (±%RH) |
1 |
||
|
Variation (±%RH) |
3 |
||
About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.
MSE Supplies is an authorized distributor for Jeio Tech.
