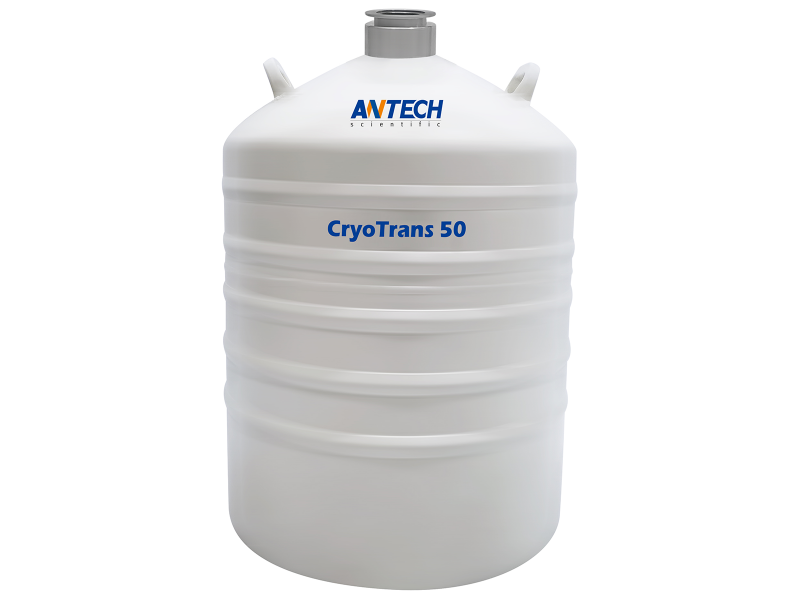

Antech 50L Liquid Nitrogen (LN2) Dewar, for LN2 Storage & Transportation
SKU: CryoTrans 50
Antech 50L Liquid Nitrogen LN2 Dewar, for LN2 Storage & Transportation
Buy Antech products from MSE Supplies at the best value.
CryoTrans series Liquid nitrogen storage Container is designed for storage and short-distance transportation of small amount of liquid nitrogen. It is equipped with rubber protection rings and prefixed bottom pad for safety. Stainless steel roller base is optional for convenient transportation.
CryoTrans series is widely used in animal husbandry and laboratories.
- Strong, lightweight aluminum construction
- Low liquid nitrogen evaporation
- Unique liquid nitrogen transportation design
- CE Certificate
- 5-year vacuum warranty
MSE Supplies offers a variety of Antech Products. Please contact us for more information.
Specifications:
| SKU# | CryoTrans 50 |
| LN2 Capacity | 50 L |
| Neck diameter | 50 mm |
| Overall height | 757 mm |
| Outer diameter | 508 mm |
| Inner diameter | 420 mm |
| Weight empty | 21 Kg |
Maximum Storage Capacity:
| Model | CryoTrans 3 | CryoTrans 6 | CryoTrans 10 | CryoTrans 16 | CryoTrans 20 | CryoTrans 30 | CryoTrans 35 | CryoTrans 35P | CryoTrans 50 |
| Performance | |||||||||
| LN2 capacity (L) | 3 | 6 | 10 | 16 | 20 | 30 | 35 | 35 | 50 |
| Neck diameter (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Static evaporation rate (L/day) | 0.12 | 0.12 | 0.12 | 0.12 | 0.12 | 0.12 | 0.12 | 0.15 | 0.23 |
| Dimensions | |||||||||
| Overall height (mm) | 441 | 468 | 546 | 618 | 668 | 661 | 760 | 580 | 757 |
| Outer diameter (mm) | 224 | 300 | 300 | 396 | 396 | 451 | 451 | 508 | 508 |
| Inner diameter （mm） | 160 | 231 | 231 | 296 | 296 | 376 | 376 | 420 | 420 |
| Weight empty (kg) | 3.5 | 4.8 | 6.5 | 10 | 12 | 16 | 16.4 | 18 | 21 |
| Weight full (kg) | 6 | 10 | 15 | 23 | 28 | 40 | 45 | 46 | 62 |
| Accessories | |||||||||
| KF NW50 connection | / | / | / | / | / | Standard | Standard | Standard | Standard |
| Roller base (optional) | / | / | / | / | / | RB-30 | RB-30 | RB-30 | RB-47 |
| LN2 dispenser (optional) | / | / | CryoPump 1000M (manual) | CryoPump 1000M (manual); CryoPump 2000A (auto) | |||||
| LN2 dipper | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | |
