ATP Colorimetric Assay Kit
SKU: E-BC-K157-M-96
ATP Colorimetric Assay Kit
SKU # | E-BC-K157-M |
Detection Instrument | Microplate reader (630 nm-640 nm, optimum wavelength: 636 nm) |
Detection method | Colorimetric method |
Product Details
Properties
Synonyms | ATP |
Sample Type | Animal tissue |
Sensitivity | 0.01 mmol/L |
Detection Range | 0.03-1.5 mmol/L |
Detection Method | Colorimetric method |
Assay type | Quantitative |
Assay time | 60 min |
Precision | Average inter-assay CV: 5.400% | Average intra-assay CV: 5.100% |
Other instruments required | Micropipettor, Tubes, Vortex mixer, Incubator, 100℃ Water bath, Centrifuge |
Storage | Reagent 4:-20℃;Others:2-8℃ |
Valid period | 12 months |
Dilution of Sample
It is recommended to take 2~3 samples with expected large difference to do pre-experiment before formal experiment and dilute the sample according to the result of the pre-experiment and the detection range (0.03-1.5 mmol/L).
The recommended dilution factor for different samples is as follows (for reference only):
Sample type | Dilution factor |
10% Rat muscle tissue homogenate | 2-4 |
10% Rat liver tissue homogenate | 2-4 |
10% Mouse brain tissue homogenate | 2-4 |
10% Rat kidney tissue homogenate | 2-4 |
10% Rat lung tissue homogenate | 2-4 |
Note: The diluent is double distilled water.
Detection Principle
Creatine kinase catalyzes adenosine triphosphate and creatine to produce creatine phosphate. The content of phosphocreatine was determined by colorimetric method to reflect the content of ATP.
Kit Components & Storage
Item | Component | Size 1(48 T) | Size 2(96 T) | Storage |
Reagent 1 | Extraction Solution |
30 mL × 1 vial | 60 mL × 1 vial | 2-8°C, 12 months |
Reagent 2 | Substrate | Powder × 1 vial | Powder × 2 vials | 2-8°C, 12 months |
Reagent 3 | Buffer Solution | 12 mL × 1 vial | 24 mL × 1 vial | 2-8°C, 12 months |
Reagent 4 | Enzyme Reagent | Powder × 1 vial | Powder × 2 vials | -20°C, 12 months |
Reagent 5 | Protein Precipitator | 3 mL × 1 vial | 6 mL × 1 vial | 2-8°C, 12 months |
Reagent 6 | Chromogenic Agent A | 6 mL × 1 vial | 12 mL × 1 vial | 2-8°C, 12 months, shading light |
Reagent 7 | Chromogenic Agent B | 2 mL × 1 vial | 4 mL × 1 vial | 2-8°C, 12 months |
Reagent 8 | Stop Solution | 6 mL× 1 vial | 12 mL× 1 vial | 2-8°C, 12 months |
Reagent 9 | Standard | Powder × 2 vials | Powder × 4 vials | 2-8°C, 12 months |
Microplate | 96 wells | No requirement | ||
Plate Sealer | 2 pieces |
Note: The reagents must be stored strictly according to the preservation condition in the above table. The reagents in different kits cannot be mixed with each other. For a small volume of reagents, please centrifuge before use, so as not to obtain sufficient amount of reagents.
Technical Data:
Parameter:
Intra-assay Precision
Three rat liver tissue samples were assayed in replicates of 20 to determine precision within an assay. (CV = Coefficient of Variation)
Parameters | Sample 1 | Sample 2 | Sample 3 |
Mean (mmol/L) | 0.55 | 0.98 | 1.25 |
%CV | 5.3 | 5.1 | 4.9 |
Inter-assay Precision
Three rat liver tissue samples were assayed 20 times in duplicate by three operators to determine precision between assays.
Parameters | Sample 1 | Sample 2 | Sample 3 |
Mean (mmol/L) | 0.55 | 0.98 | 1.25 |
%CV | 5.2 | 5.8 | 5.2 |
Recovery
Take three samples of high concentration, middle concentration and low concentration to test the samples of each concentration for 6 times parallelly to get the average recovery rate of 94%.
Standard 1 | Standard 2 | Standard 3 | |
Expected Conc. (mmol/L) | 0.85 | 1.05 | 1.3 |
Observed Conc. (mmol/L) | 0.8 | 1.0 | 1.2 |
Recovery rate (%) | 99 | 92 | 91 |
Sensitivity
The analytical sensitivity of the assay is 0.01 mmol/L. This was determined by adding two standard deviations to the mean O.D. obtained when the zero standard was assayed 20 times, and calculating the corresponding concentration.

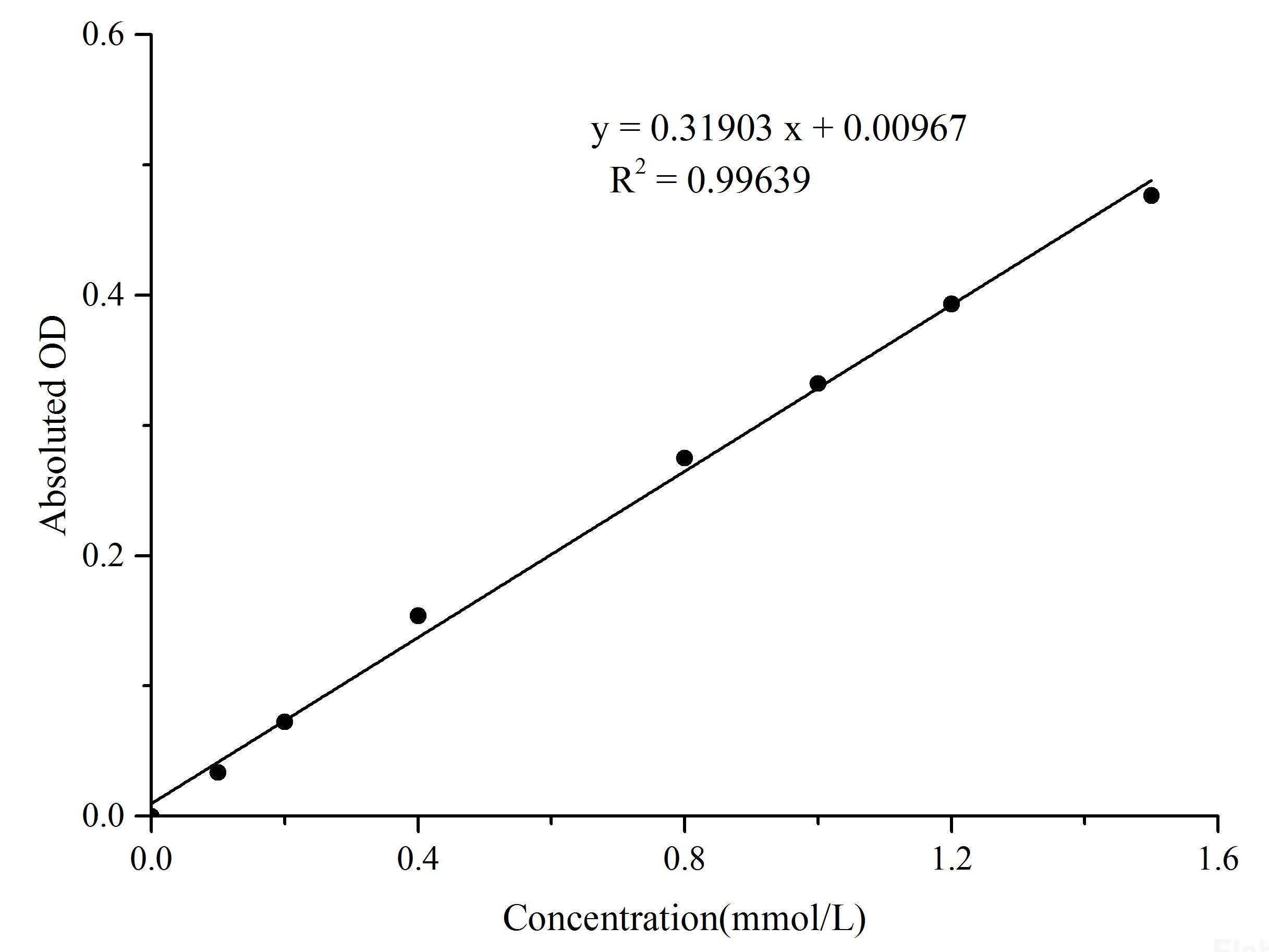

Standard Curve
As the OD value of the standard curve may vary according to the conditions of the
actual assay performance (e.g. operator, pipetting technique or temperature effects),
so the standard curve and data are provided as below for reference only.
Concentration (mmol/L) | 0 | 0.1 | 0.2 | 0.4 | 0.8 | 1 | 1.2 | 1.5 |
Average OD | 0.092 | 0.125 | 0.164 | 0.245 | 0.366 | 0.424 | 0.484 | 0.568 |
Absoluted OD | 0 | 0.033 | 0.072 | 0.153 | 0.274 | 0.332 | 0.392 | 0.476 |
