ATTO SJ-1211Ⅱ-H Peristaltic pump
SKU: SJ-1211Ⅱ-H-110V

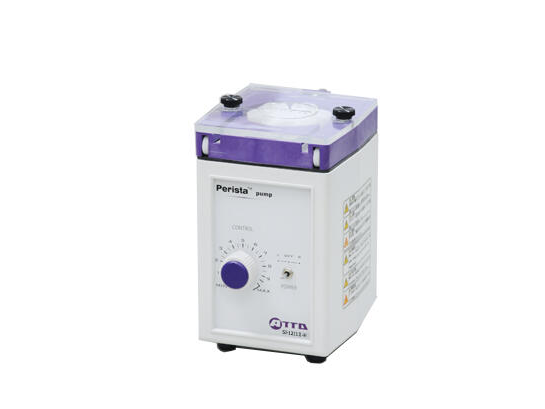

ATTO SJ-1211Ⅱ-H Peristaltic pump
Buy ATTO products from MSE Supplies at the best Value.
SJ-1211Ⅱ-H Peristaltic pump is used for general purpose/popular type of liquid delivery.
Purpose and Application
- Flow rate: 7 to 700 mL/h (using silicone tube with inner diameter of 1 to 3 mm and wall thickness of 1 mm).
- It can be used as a pump for chromatography, fermentation culture liquid, and chemical reflux experiments.
-
It can be used for a wide range of purposes, including not only research facilities but also production plants.
MSE Supplies is an authorized distributor of ATTO products.
Technical Data:
| Model and name | SJ-1211Ⅱ-H Peristaltic pump |
|---|---|
| Number of channels |
1 flow path |
| Amount of liquid delivered |
7 to 700mL/h (using tubes with inner diameters of φ1 to φ3mm) |
| Flow rate variable range |
1-20 times |
| Flow Accuracy |
Repeatability within ±1% |
| Maximum (discharge/suction) pressure |
Discharge 205.9kPa (2.1kg/cm2) / Suction 9.8kPa (0.1kg/cm2) |
| Head/Compatible Viscosity |
21m maximum / 1.5Pa･s(1500cP) maximum |
| Ambient temperature |
0 to 40°C |
| Motor |
Induction motor |
| Drive circuit |
Constant speed automatic control circuit |
| Dimensions (mm) |
110(W)×150(D)×180(H) |
| Weight(Kg) |
2.0 |
