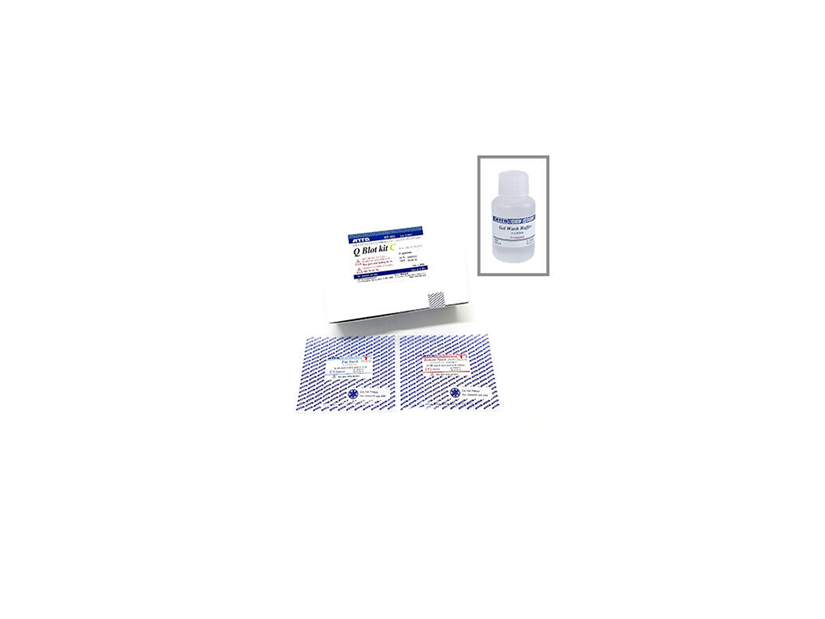

ATTO WSE-4056 QBlot kit C-Transfer Pack

ATTO WSE-4056 QBlot kit C-Transfer Pack

SKU: WSE-4056

  • $ 17095

ATTO WSE-4056 QBlot kit C-Transfer Pack

Buy ATTO products from MSE Supplies at the best Value.

This is a transfer pack for transferring proteins from gels to membranes after electrophoresis. A membrane equilibrated with transfer buffer and a water-absorbing sheet instead of filter paper are packed separately for the cathode and anode. Since no preparation is required, it can be used immediately out of the bag.

Features:

  • Ready to use. Can be set immediately after breaking the seal.
  • The improved water-absorbing sheet further improves adhesion! Reduces pattern loss and uneven blotting due to air bubbles.
  • High-speed transfer of protein bands with molecular weight up to ~250 kDa
  • QBlot kit: Dedicated transfer buffer for even greater transfer efficiency
  • Compatible with mini size, compact size, and wide size gels
  • Alcohol-free



MSE Supplies is an authorized distributor of ATTO products.

Technical Data:

  Blotting conditions

Model
name

 WSE-4056 QBlot kit C

 WSE-4057QBlot kit M
 WSE-4058 QBlot kit W
Standard
(Constant Voltage)

12V c.v.
(Current value: 100~200mA)
15~30min

12V c.v.
(Current value: 100~400mA)
15~30min

12V c.v.
(Current value: 200~600mA)
15~30min
Standard
(constant current)

150mA/gel c.c.
(Approximate voltage value: 5~15V)
15~30min

250mA/gel c.c.
(Approximate voltage value: 5~15V)
15~30min

300mA/gel c.c.
(Approximate voltage value: 5~15V)
15~30min
High Speed
(Constant Voltage)

24V c.v.
(Current value: 200~400mA)
5~10min

24V c.v.
(Current value: 500~800mA)
5~10min

24V c.v.
(Approximate current value: 700~1100mA)
5~10min
High speed
(constant current)

300mA/gel c.c.
(Approximate voltage value: 15~25V)
5~10min

600mA/gel c.c.
(Approximate voltage value: 15~25V)
5~10min

900mA/gel c.c.
(Approximate voltage value: 15~25V)
5~10min



Model
name

 WSE-4056 QBlot kit C

 WSE-4057 QBlot kit M

 WSE-4058 QBlot kit W
Adaptive gel size(mm)

60×60
(compact size gel)

90×83
(mini size gel)

140×80
(Wide-size gel)
configuration Top Stack (Water Absorbent Sheet) 65×65mm (10 packs)
Bottom Stack (PVDF Membrane, Water Absorbent Sheet) 65×65mm (10 packs)
Gel Wash Buffer (5×) 100mL		 Top Stack (Water Absorbent Sheet) 90×85mm (10 packs)
Bottom Stack (PVDF Membrane, Water Absorbent Sheet) 90×85mm (10 packs)
Gel Wash Buffer (5×) 100mL		 Top Stack (Water Absorbent Sheet) 145×85mm (6 Packs)
Bottom Stack (PVDF Membrane, Water Absorbent Sheet) 145×85mm (6 Pack)
Gel Wash Buffer (5×) 100mL
Retention period 1 year (refrigerated)
capacity 10 servings/box 10 servings/box 6 servings/box
