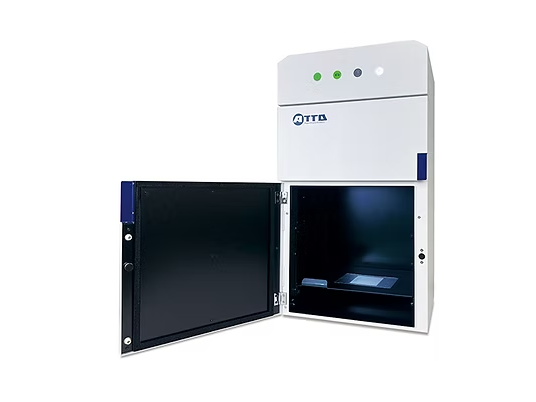

ATTO WSE-6170 LuminoGraph I CMOS-Gel Imaging System
SKU: WSE-6170
ATTO WSE-6170 LuminoGraph I CMOS-Gel Imaging System
Buy ATTO products from MSE Supplies at the best Value.
The WSE-6170 LuminoGraph I CMOS is equipped with a new-generation cooled CMOS camera that enables anyone to easily capture chemograms (Auto-Expo function and marker image auto-merge function). High-sensitivity Ultra mode can also be used for high-sensitivity detection approaching high-end models.
Purpose and Application
-
Chemiluminescence imaging of Western blotting
-
Fluorescent imaging of fluorescent staining gels and fluorescent proteins (optional)
-
Bright-field imaging of CBB staining gels (optional)
-
Quantitative analysis of samples from the image (Concentration and Molecular weight)
-
Merge image of the chemiluminescent image and pre-stained marker of membrane image
MSE Supplies is an authorized distributor of ATTO products.
Technical Data:
| Model | WSE-6170 |
| camera | High sensitivity cooled CMOS camera Number of pixels 2688 x 1512 (4 M pixels) |
| Tone | 16-bit (65,536 gradations) |
| lens | prime lens F0.95 |
| Binning function | Binning function: 2×2/4×4 |
| Sensitivity (Gain Switching) | HQ / STD / High / Ultra |
| Optical Filters | Interchangeable holder (50 mm square) (Option: YA-3 filter (LPF560) / ND filter) |
| Light source device | Epi-illumination white light source (Option: Transmitted white light source (Flat view: for staining gel imaging)) (Option: Cyano transmitting light source (CyanoViewII: for fluorescent gel imaging)) |
| control | Windows PC (OS Windows 10/11) (PC sold separately) Connection: USB3.0 Type-A terminal (Optional: Control software as standard) |
| size(mm) | Body: 363 (W) × 307 (D) × 660 (H) |
| mass (Kg) | 18 |
| power | 100 - 240 VAC 50 / 60 Hz 150W |
