ATTO WSL-1565 Kronos HT-Bioluminescence measurement system for living cell and tissues
SKU: WSL-1565

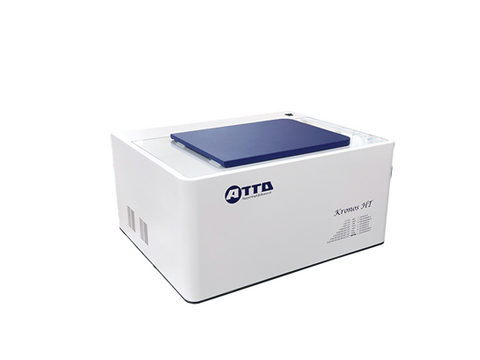

ATTO WSL-1565 Kronos HT-Bioluminescence measurement system for living cell and tissues
Buy ATTO products from MSE Supplies at the best Value.
The Kronos HT is performing to detect high sensitivity for dim and weak luminescence consecutively in culture samples such as cells and tissues in 24 well plates for a long time. 96 well plates and 35 mm dishes also applicable.
Features
-
Sample stage is in the incubation chamber in which temperature and CO2 gas concentration is controlled and humidity is kept >90%RH.
-
24・96 wells micro plate applicable.
-
Long-time detection available *1hour～30days
-
2 plates are measured by 2 PMTs (one PMT to one plate)
-
Plates are not moved, PMTs are moved to each well. > No shaking cells, so less damage to delicate cells and applicable to floating cells such as hematocytes.
-
PMTs are cooled to 10℃ > The dark noise is lower.
-
Built in filters for Multi-color luciferase assay
MSE Supplies is an authorized distributor of ATTO products.
Technical Data:
| Model | WSL-1565 |
| Detector | PhotoMultiplier Tube (PMT) (10℃ cooling) x 2 units |
| Measurement | Photon counting method |
| Measurement time | 1 - 60s/well, for 1 h - 30 days |
| Format |
24 well clear bottom plate x 2 (standard) 96 well clear bottom plate x 2 (optional) 35 mm dish x 12 (optional) |
| Detection plate | 2 PMTs (one PMT to one plate) |
| Number of specimens |
48 samples (24 well plate x 2) standard 192 samples (96 well plate x 2) optional 12 samples (35 mm dish x 12) optional |
| Incubation temperature control | Room temperature +5°C~45°C (0.1°C steps) in a room temperature environment of 20~28°C |
| CO₂ gas control | Adjust CO2 gas concentration with CO2 gas mixing unit and introduce it into the cabinet (setting range: 1.0 - 20%) |
| Humidification | Setting of water receiver in incubator and humidified 5% CO₂ gas flowing intermittently by humidifying out Maintaining > 90% RH |
| Multi-color assay | Measurement with automatically selected optical filter up to 2 colors |
| PC requirements | OS: Windows 11, 64/32 bit, Memory: 4GB HDD: more than 20 GB |
| PC interface | USB 2.0 x 1 port |
| Dimension(mm) | 650 (W) x 520 (D) x 340 (H) |
| Weight (Kg) | 40 |
| Power | AC 100~240V 50/60Hz 400W (Max) |
|
Name |
CO2 gas inlet unit for Kronos HT |
|
CO2 control |
Adjust the concentration in CO2 gas mixing unit and introduce it into the culture tank (setting range: 1.0 - 20%) |
|
Humidification |
Introducing CO2 gas into the Kronos HT culture tank via a humidification unit |
|
Dimensions (mm) |
CO2 gas mixing unit: 121 (W) × 174 × 157 (H) Humidification unit: 170 (W) × 140 (D) × 115 (H) |
|
Weight(Kg) |
CO2 gas mixing unit: 1.6 Humidification unit: 1.6 |
|
Power |
CO2 gas mixing unit: AC100~240V, 50/60Hz. 25W Humidification Unit: AC100~240V, 50/60Hz, 30W |
