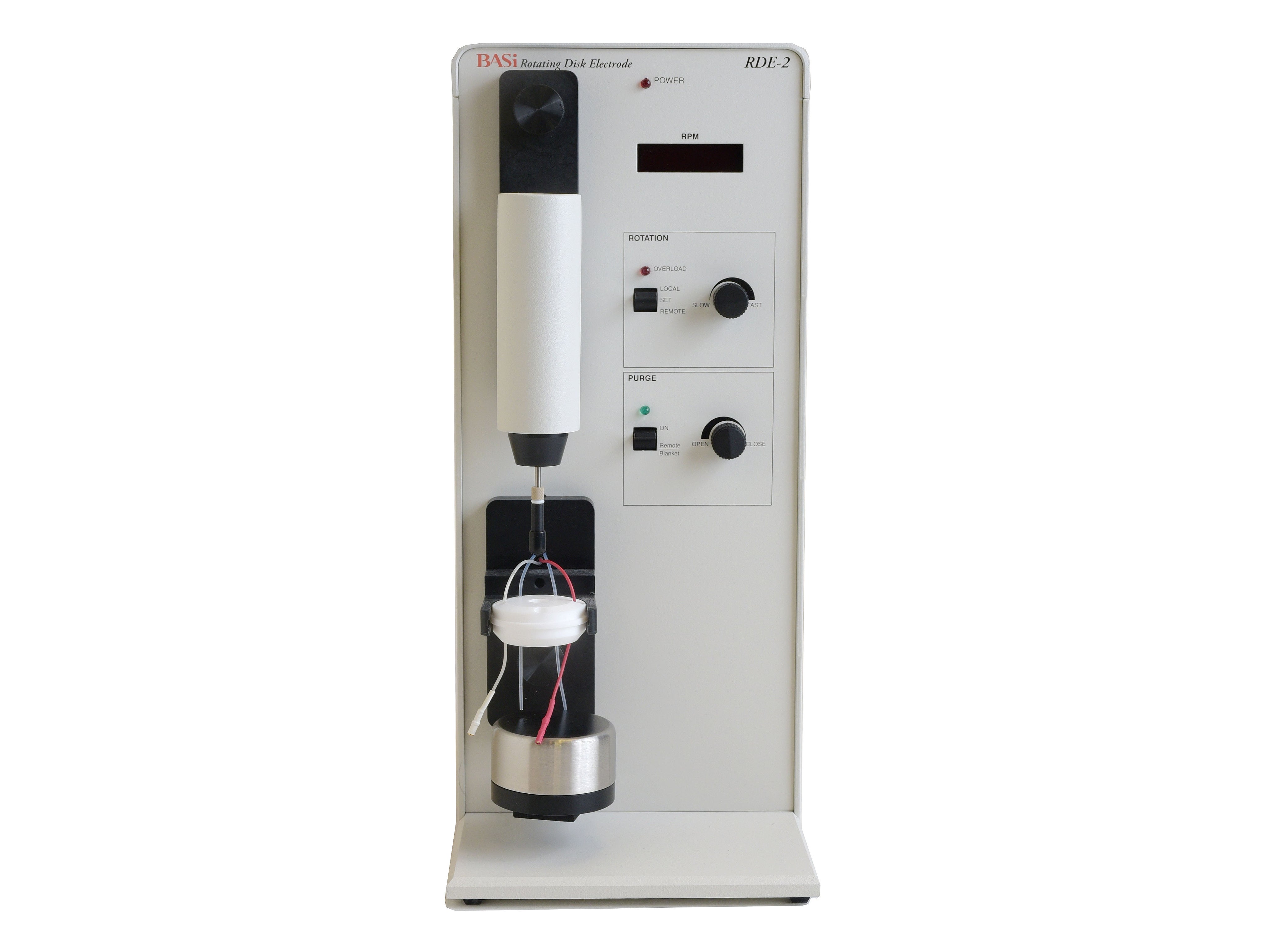

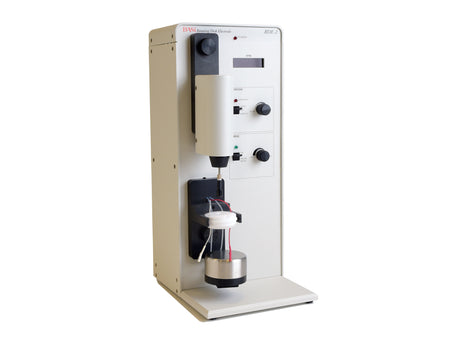

BASi RDE-2 Rotating Disk Electrode

BASi RDE-2 Rotating Disk Electrode

Buy BASi Products from MSE Supplies at the best value.

The RDE-2 Cell Stand is a rotator system for rotating disk electrode experiments. It is capable of 50-10,000 rpm rotation rates and has an integrated gas purge function that can be controlled manually or remotely. The rotator unit is easily raised and lowered into the solution for electrochemistry experiments.

Features

• Remote control of stirring and gas purging by BASi® PC-controlled potentiostats
• Manual control when used with other potentiostats
• Small sample volume (10 - 15 mL)
• Optional water-jacketed cell vials
• Standard addition port
• "Quick-connect" input gas line connector
• Mounted cell top compatible with BASi® stationary voltammetry electrodes
• Easy and rapid exchange of electrodes
• Low-noise electrode contact
• Excellent rotation speed, acceleration and deceleration

Specifications

• Rotation Range: 50-10,000 RPM
• Accuracy: <1% at >1,000 RPM, <2% at <1,000 RPM
• Inlet Gas Pressure: 5 psi
• Power: 100-240 VAC, 50/60 Hz
• Dimensions: 42 cm (16.5”) height x 18 cm (7”) width x 23 cm (9”) depth
• Weight: 12 lbs

RDE-2 Includes:
Power Cord (please specify power requirements)
RDE-2 Power Cable
RDE-2 Accessories Cable
ER-9862 – Epsilon EClipse Cell Stand Cable (if you do not have an Epsilon EClipse please let us know the make and model of your potentiostat if you have one)
ER-7526 Control Cable 37 Pin Female to 37 Pin Male (1)

RDE Cell Stand Accessories Kit includes:
MF-1208 Glass Cell Vial (12)
MF-1998 Cell Lead Clips Kit (1)
MF-2052 RE-5B Ag/AgCl (3M NaCl) Reference Electrode (3)
MF-2060 PK-4 Polishing Kit (1)
MR-4404 Gas Inlet Barb Fitting (1)
MR-5275 Reference Electrode Storage Vial w/Cap (1)
MW-1033 Coiled Platinum Wire Auxiliary Electrode for RDE (1)
MW-1034 Cell Top Plug (1)
MF-2066 Glassy Carbon Electrode (3.0 mm Diameter) for RDE (1)
MW-2130 RDE Shaft Assembly
MR-3839 Cell Top

For UK customers, please contact us before placing an order.

MSE Supplies offers a variety of electrochemistry products. Please contact us for more information.
