BASi Screen Printed Electrode AC1 (2mm Gold Working; Silver/Silver Chloride Reference)

AC1 (2mm Gold Working; Silver/Silver Chloride Reference) 20/PK

AC1: Typical Three-Electrode SPE Configuration; WE Dia. – 1mm; Pack – 20 Units

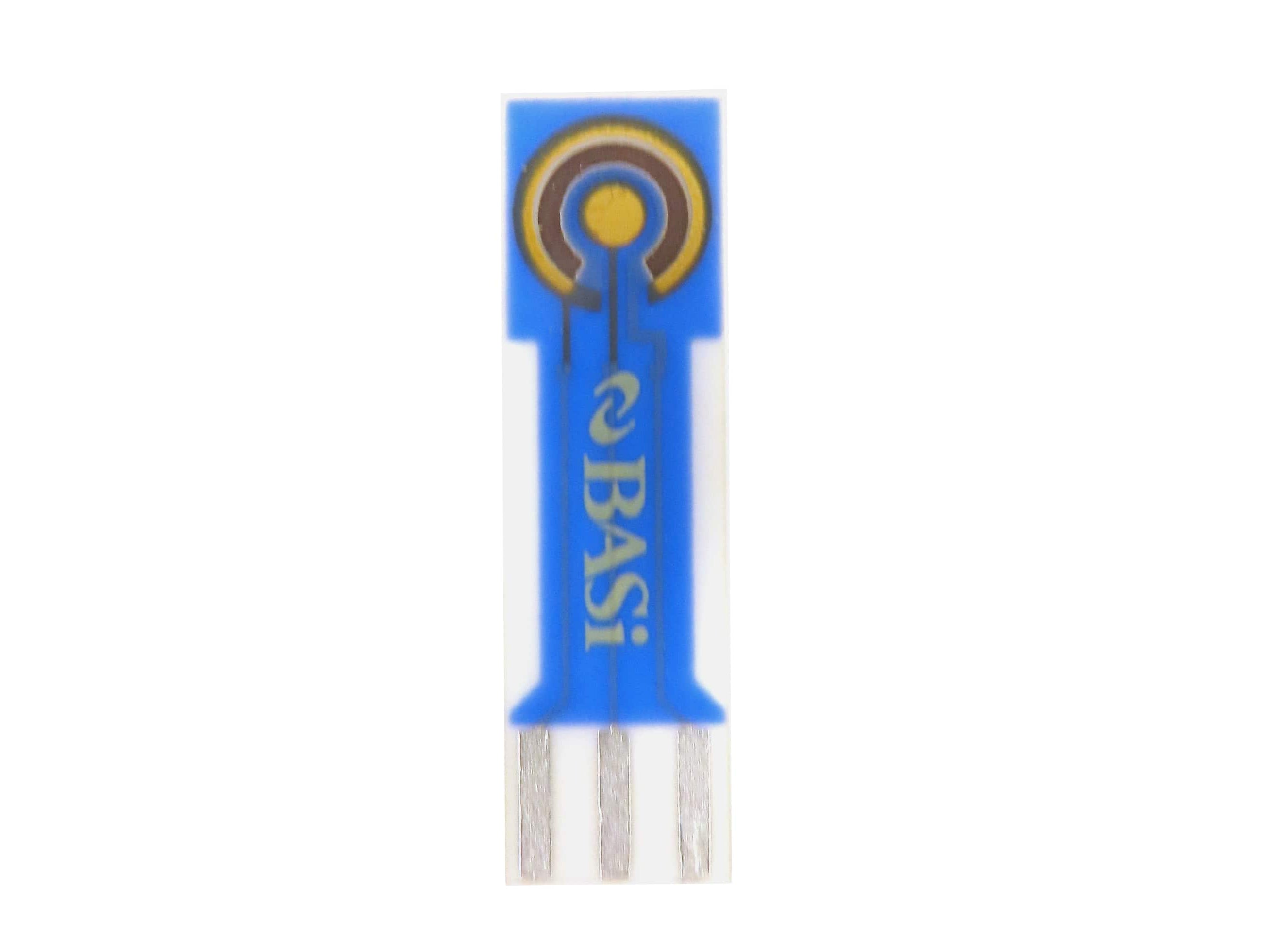

This screen printed amperometric sensor has three electrodes configuration and is formed on a corundum ceramic base. It is 2.54 cm long, 0.73 cm wide, 0.63 mm thick, and weighs 0.5 grams. The available diameters for the working electrode area are 1.00 mm, 2.00 mm or 4.00 mm. There is a silver electrical contact at the end of each sensor and this conductive path is covered by a dielectric protection layer. They can be ordered in multiples of 20 sensors (with the exception of SP-1108). A wide variety of materials can be used for each of the three electrodes as desired. The PALM-SPEHOLDER-2MM is an appropriate adapter for these sensors.
