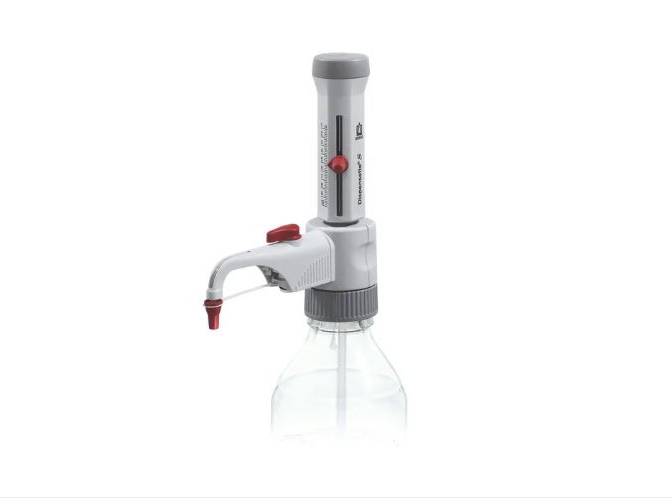

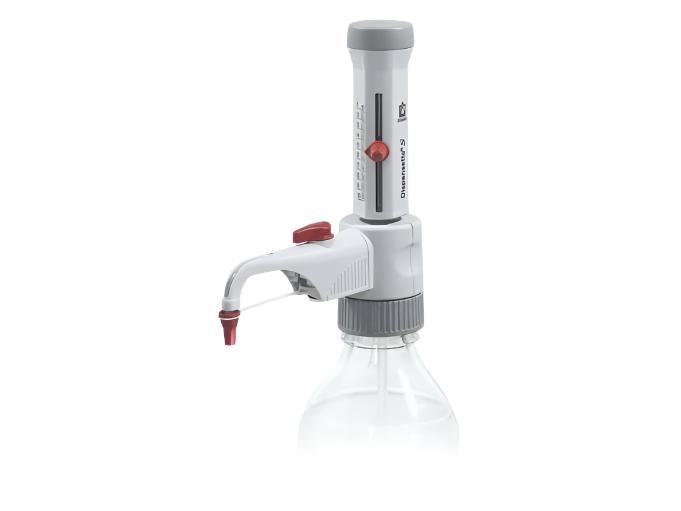

BrandTech Bottle-Top Dispensers Dispensette® S, Analog-aAdjustable, DE-M

BrandTech Bottle-Top Dispensers Dispensette® S, Analog-aAdjustable, DE-M

SKU: BT4600100

  • $ 54195

BrandTech Bottle-Top Dispensers Dispensette® S, Analog-aAdjustable, DE-M

Buy BrandTech Products from MSE Supplies at the best value.

Technical Details

SKU Volume range Accuracy in % (±) Accuracy in µl (±) Coefficient of variation (%) Coefficient of variation (µl) Recirculation valve Subdivision Adapter for bottle thread Filling tube length
BT4600100 0.1 ml - 1 ml 0.5 % 5 µl 0.1 % 1 µl without 0.02 ml GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 125-240 mm
BT4600101 0.1 ml - 1 ml 0.5 % 5 µl 0.1 % 1 µl with 0.02 ml GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 125-240 mm
BT4600120 0.2 ml - 2 ml 0.5 % 10 µl 0.1 % 2 µl without 0.05 ml GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 125-240 mm
BT4600121 0.2 ml - 2 ml 0.5 % 10 µl 0.1 % 2 µl with 0.05 ml GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 125-240 mm
BT4600130 0.5 ml - 5 ml 0.5 % 25 µl 0.1 % 5 µl without 0.1 ml GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 125-240 mm
BT4600131 0.5 ml - 5 ml 0.5 % 25 µl 0.1 % 5 µl with 0.1 ml GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 125-240 mm
BT4600140 1 ml - 10 ml 0.5 % 50 µl 0.1 % 10 µl without 0.2 ml GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 125-240 mm
BT4600141 1 ml - 10 ml 0.5 % 50 µl 0.1 % 10 µl with 0.2 ml GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 125-240 mm
BT4600150 2.5 ml - 25 ml 0.5 % 125 µl 0.1 % 25 µl without 0.5 ml GL 32-33, GL 38, S 40 170-330 mm
BT4600151 2.5 ml - 25 ml 0.5 % 125 µl 0.1 % 25 µl with 0.5 ml GL 32-33, GL 38, S 40 170-330 mm
BT4600160 5 ml - 50 ml 0.5 % 250 µl 0.1 % 50 µl without 1 ml GL 32-33, GL 38, S 40 170-330 mm
BT4600161 5 ml - 50 ml 0.5 % 250 µl 0.1 % 50 µl with 1 ml GL 32-33, GL 38, S 40 170-330 mm
BT4600170 10 ml - 100 ml 0.5 % 500 µl 0.1 % 100 µl without 1 ml GL 32-33, GL 38, S 40 170-330 mm
BT4600171 10 ml - 100 ml 0.5 % 500 µl 0.1 % 100 µl with


Product Detail

Whether you are dispensing solvents, acids, alkalis or saline solutions – the Dispensette® S bottle-top dispenser makes it easy, safe and efficient.
With both the Dispensette® S and Dispensette® S Organic, you will always have the right dispenser at hand for a wide range of media. For efficient volume adjustment, you can choose between digital and analog adjustment, or fixed volume. Do you dispense long series, sterile applications or moisture-sensitive media? With numerous accessory options, the Dispensette® S also offers efficient solutions for special applications.

Dispensette® S (red color-code): Ideal for dispensing aggressive reagents, including concentrated bases and acids such as H3PO4, H2SO4 (except e.g., HCl, HNO3 und HF), saline solutions, as well as many organic solvents.

Analog-adjustable Model: Rapid and safe volume setting with new internal scalloped track. Simple calibration adjustment with a supplied tool.

Limitations of use:

Operating temperature from +15 °C to +40 °C (from 59 °F to 104 °F) of instrument and reagent

Vapor pressure up to max. 600 mbar. Aspirate slowly above 300 mbar, in order to prevent the liquid from boiling

Kinematic viscosity up to 500 mm² /s (dynamic viscosity [mPas] = kinematic viscosity [mm² /s] x density [g/cm³)

Density up to 2.2 g/cm³

Items Supplied

Dispensette® S bottle-top dispenser, for threaded bottles GL 45, DE-M marking, with performance certificate, telescoping filling tube, recirculation valve and recirculation tube (optional), mounting tool and adapters of polypropylene (Nominal volume: 1, 2, 5, 10ml: GL 24-25, GL 28/S28, GL 32-33, GL38, S40 / Nominal volume 25, 50, 100ml: GL 32-33, GL38, S40)
