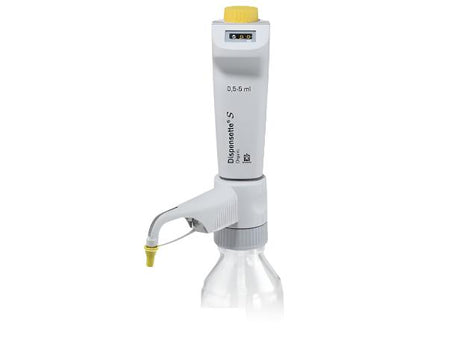

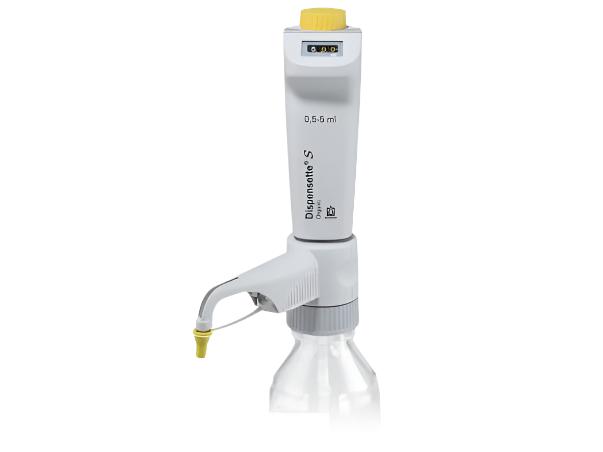

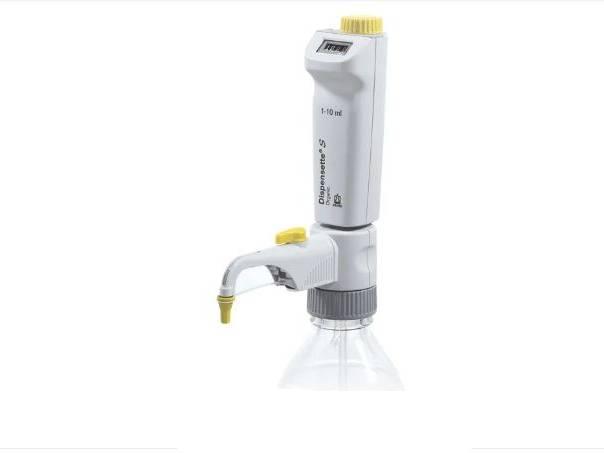

BrandTech Bottle-Top Dispensers Dispensette® S Organic, digital, DE-M
SKU: BT4630330
BrandTech Bottle-Top Dispensers Dispensette® S Organic, Digital, DE-M
Buy BrandTech Products from MSE Supplies at the best value.
Technical Details
| SKU | Volume range | Accuracy in % (±) | Accuracy in µl (±) | Coefficient of variation (%) | Coefficient of variation (µl) | Recirculation valve | Subdivision | Adapter for bottle thread | Filling tube length |
|---|---|---|---|---|---|---|---|---|---|
| BT4630330 | 0.5 ml - 5 ml | 0.5 % | 25 µl | 0.1 % | 5 µl | without | 0.02 ml | GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 | 125-240 mm |
| BT4630331 | 0.5 ml - 5 ml | 0.5 % | 25 µl | 0.1 % | 5 µl | with | 0.02 ml | GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 | 125-240 mm |
| BT4630340 | 1 ml - 10 ml | 0.5 % | 50 µl | 0.1 % | 10 µl | without | 0.05 ml | GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 | 125-240 mm |
| BT4630341 | 1 ml - 10 ml | 0.5 % | 50 µl | 0.1 % | 10 µl | with | 0.05 ml | GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 | 125-240 mm |
| BT4630350 | 2.5 ml - 25 ml | 0.5 % | 125 µl | 0.1 % | 25 µl | without | 0.1 ml | GL 32-33, GL 38, S 40 | 170-330 mm |
| BT4630351 | 2.5 ml - 25 ml | 0.5 % | 125 µl | 0.1 % | 25 µl | with | 0.1 ml | GL 32-33, GL 38, S 40 | 170-330 mm |
| BT4630360 | 5 ml - 50 ml | 0.5 % | 250 µl | 0.1 % | 50 µl | without | 0.2 ml | GL 32-33, GL 38, S 40 | 170-330 mm |
| BT4630361 | 5 ml - 50 ml | 0.5 % | 250 µl | 0.1 % | 50 µl | with |
Product Detail
Whether you are dispensing solvents, acids, alkalis or saline solutions – the Dispensette® S bottle-top dispenser makes it easy, safe and efficient.
With both the Dispensette® S and Dispensette® S Organic, you will always have the right dispenser at hand for a wide range of media. For efficient volume adjustment, you can choose between digital and analog adjustment, or fixed volume. Do you dispense long series, sterile applications or moisture-sensitive media? With numerous accessory options, the Dispensette® S also offers efficient solutions for special applications.
Dispensette® S Organic (yellow color-code): Ideal for dispensing organic solvents, including chlorinated and fluorinated hydrocarbons (e.g., trichlorofluoroethane and dichlormethane), acids like concentrated HCl and HNO3 (except HF), trifluoroacetic acid (TFA), tetrahydrofuran (THF) and peroxides.
Digital design: Especially easy to read digital display. The selected dosed volume can be adjusted precisely and is easy to reproduce. Easy calibration technology for adjustment in seconds without tools. Automatic designation if factory default changed.
Limitations of use:
Operating temperature from +15 °C to +40 °C (from 59 °F to 104 °F) of instrument and reagent
Vapor pressure up to max. 600 mbar. Aspirate slowly above 300 mbar, in order to prevent the liquid from boiling
Kinematic viscosity up to 500 mm² /s (dynamic viscosity [mPas] = kinematic viscosity [mm² /s] x density [g/cm³)
Density up to 2.2 g/cm³
Items supplied
Dispensette® S bottle-top dispenser, for threaded bottles GL 45, DE-M marking, with performance certificate, telescoping filling tube, recirculation valve and recirculation tube (optional), mounting tool and adapters of polypropylene (Nominal volume: 1, 2, 5, 10ml: GL 24-25, GL 28/S28, GL 32-33, GL38, S40 / Nominal volume 25, 50, 100ml: GL 32-33, GL38, S40)
