MSE PRO Circular Cylindrical Lenses

SKU: CS0037

To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

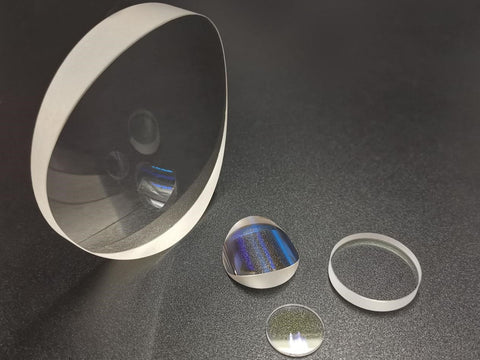

MSE PRO™ Circular Cylindrical Lenses

MSE supplies offers customized Circular Cylindrical Lenses with different materials, dimension, surface qualify, etc.

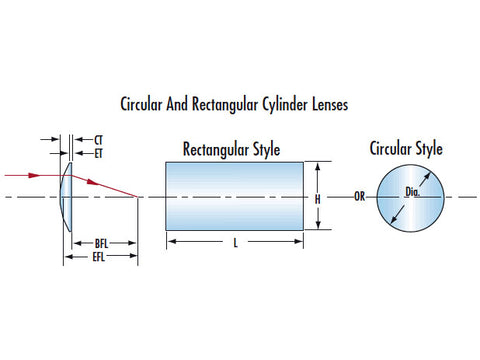

As indicated by the name, Circular Cylindrical Lenses are in circular cylindrical shape. The purpose of a circular cylindrical lens is to converge or expand light in one dimension and correct aberration. They are widely used in anamorphic beam shaping, generating laser lines and focusing a diverging beam on a detector array.

MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.

Technical Data:

Parameters Value
Material
  • Optical Glass
  • Fused Silica
  • Silicon
  • Germanium
  • ZnSe
  • Sapphire
  • CaF2
  • MgF2
  • BaF2
Size (mm) 2-500
Size Tolerance (mm) +0/-0.01~+0/-0.1
Thickness Tolerance (mm) ±0.01~±0.1
Focal Length Tolerance (%) ±1
Irregularity (P-V) @ 632.8nm λ/10~λ/2
Surface Quality 10/5~60/40
Centration <30”~3'
Clear Aperture (%) >90
Bevel Protective bevel as needed
Coating Uncoated, AR, BBAR
