Customized GaN-on-SiC Epitaxial Wafers, 100mm and 150mm
SKU: CS0064
To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

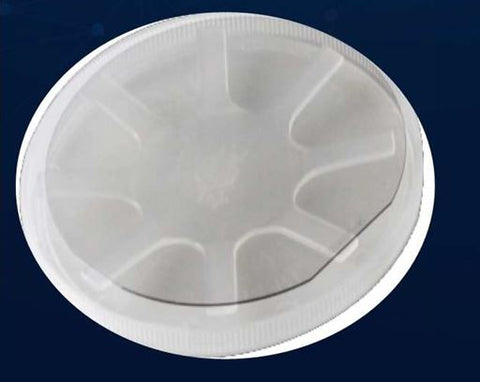

Gallium Nitride on Silicon Carbide Epitaxial Wafers
Customized GaN-on-SiC epitaxial wafers are available from MSE Supplies. Please contact us for a quote for customized GaN on SiC epi-wafers.
100mm or 150mm GaN Epi-wafers on SiC substrates (both N type and Semi-Insulating type are available). Our GaN-on-SiC wafers are grown by the MOCVD process using AIXTRON and Veeco equipment. Custom-made wafers in 4 inch and 6 inch sizes are available. Our GaN epi-wafers have been proven for high performance DC/RF applications.

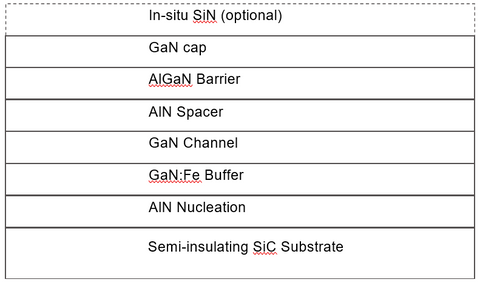

An example of GaN-on-SiC wafer epitaxial layer structure
|
In-situ SiN (optional) |
Optional in-situ nitride available upon request |
|
GaN cap |
|
|
AlGaN Barrier |
Barrier customized based on applications |
|
AlN Spacer |
High -uniformity spacer for mobility boost |
|
GaN Channel |
|
|
GaN:Fe Buffer |
Buffer profile designed for high isolation and low RF trapping |
|
AlN Nucleation |
|
|
Semi-insulating SiC Substrate |
|
|
Epi Structure |
Key Specs |
Characterization |
|
Substrate thickness (μm) |
500 ±25 or customized |
Microsense Profilometer |
|
Total epi thickness (micron) |
0.6 ~ 2.5 or customized |
PL |
|
Dislocation density (/cm2) |
≤ 108 |
XRD |
|
XRD Rocking Curve |
(004) ≤ 200 arc sec (102) ≤ 250 arc sec |
XRD |
|
Epi sheet resistance (Rsh) |
225 ~ 450 Ω/sq or customized |
Lehighton |
|
Rsh uniformity |
Rsh Stdev. ≤ 2% |
Lehighton |
|
Carrier concentration (/cm2) |
0.8 ~ 1.1 X1013 or customized |
Lehighton |
|
Carrier mobility（cm2V-1s-1) |
≥2100 |
Lehighton |
|
Epi surface roughness (RMS) |
≤ 0.5 nm |
AFM |
|
Wafer thickness (TTV) |
≤ 10 μm |
Microsense Profilometer |
|
Wafer Bow & Wrap |
≤ 30 μm |
Microsense Profilometer |
|
In situ Nitride |
Available upon request |
Available upon request |
Representative device performance data using 0.45um process
|
Performance Target |
||
|
Pinch-off Voltage (Ids=1mA/mm) |
-2.7 ~ -3.3 |
V |
|
Idss (Vgs=0V, Vds=10V) |
700~800 |
mA/mm |
|
Idmax (Vgs=1V, Vds=10V) |
950~1100 |
mA/mm |
|
Max. GM (Vds=10V) |
~300 |
mS/mm |
|
Breakdown VDG (Id=0.1mA/mm) |
>200 |
V |
|
Ft (Vds=50V) |
>15 |
GHz |
|
Rc |
~0.35 |
Ohm.mm |
|
Drain and gate leakage current (Vgs=- 5V, Vds=50V) |
<0.01 |
mA/mm |
|
Vf |
1.2~1.3 |
V |
|
Pulsed IV Drain Lag |
>80 |
% |
