FILTRA IRIS FTL-0200 Electromagnetic Sieve Shaker
SKU: FTL-0200

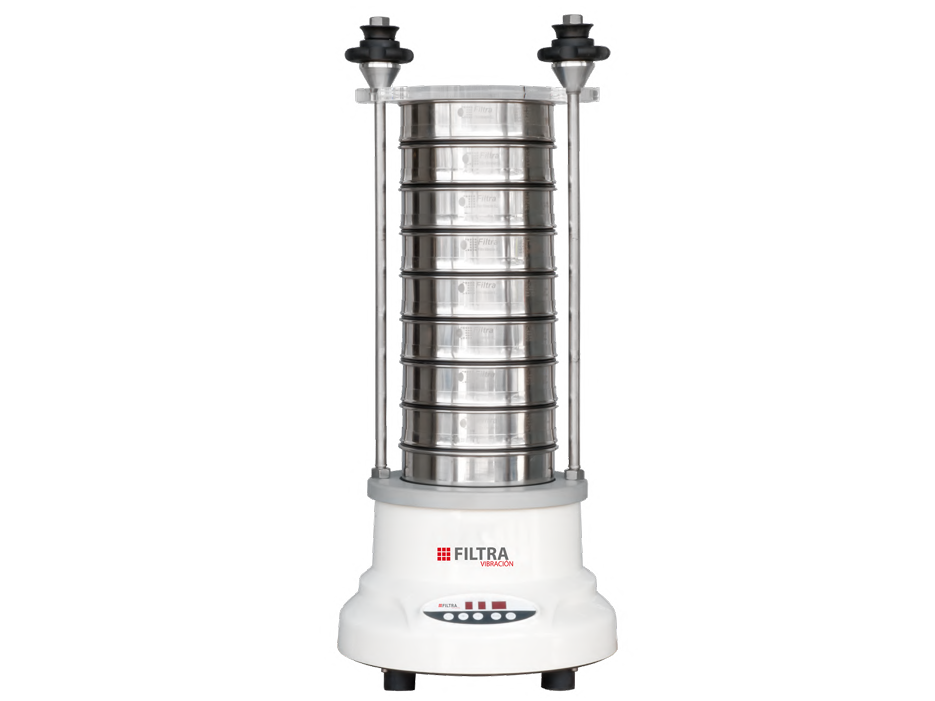

FILTRA IRIS FTL-0200 Electromagnetic Sieve Shaker
Overview
The FILTRA IRIS FTL-0200 Electromagnetic Sieve Shaker is a compact and lightweight device designed for sieves ranging from Ø60 to Ø203 mm. Its three-dimensional movement across the sieve column ensures exceptional efficiency for particle size separation tests, whether dry or wet.
Constructed from anodized aluminum with a durable polyurethane resin housing, the shaker features a digital control panel for power regulation, sieving time adjustment, and options for continuous or intermittent sieving. The sieves are securely fastened using threaded rods, bakelite knobs, and a methacrylate lid, ensuring stability and precision during operation.
Benefits
- Three-dimensional motion
- Highly effective
- Sieving for dry and wet test
- Ergonomic design
- Digital adjustment of sieving parameters
- Easy to operate
- Integrated interface
- Anti-vibration system
- Silent
- Maintenance free
Package
- Sieve shaker
- Connecting cable
- Methacrylate lid Threaded closing system
- User manual
- CE declaration of conformity
- Accessories in wet (optional)
Accessories (Upon Request)
- Methacrylate lid for dry test
- Methacrylate lid with stainless steel diffusing ball for wet test
- Stainless steel receiver for dry test
- Stainless steel receiver with outlet for wet test (including hose and flange)
- Stainless steel lid
- “Easy-Press“ rapid anchoring system (smooth rods and pressurized tightening knobs)
- Feed balls to ease the passage of the product in the sieve.
- Cleaning brushes
- Freeing tool
Specification
| Model | FTL-0200 |
| Sieve Shaker Type | Electromagnetic |
| Dry Test | YES |
| Wet Test | YES |
| Power Levels | 9 |
| Particle’s Size* | From 20 μm to125 mm wet |
| From 40 μm to 125 mm dry | |
| Number of sieves (mm) | 8 (ø200/203 X 50 mm) |
| 16 (ø200/203 X 25 mm) | |
| Sieves diameter (mm) | 60 to 203 |
| Timing (min) | 1 to 99 |
| Power Supplies | 110V/60Hz |
| Intensity (A) | 1.8 |
| Power (kW) | 0.4 |
| Weight (Kg) | 40 |
| Interval | 1 to 9 s |
| Max. Width | 2 mm |
| Dimensions (L x A x h) mm | 360 x 300 x 800 |
MSE Supplies offers a range of Laboratory Sieve. Please contact us for more information.
