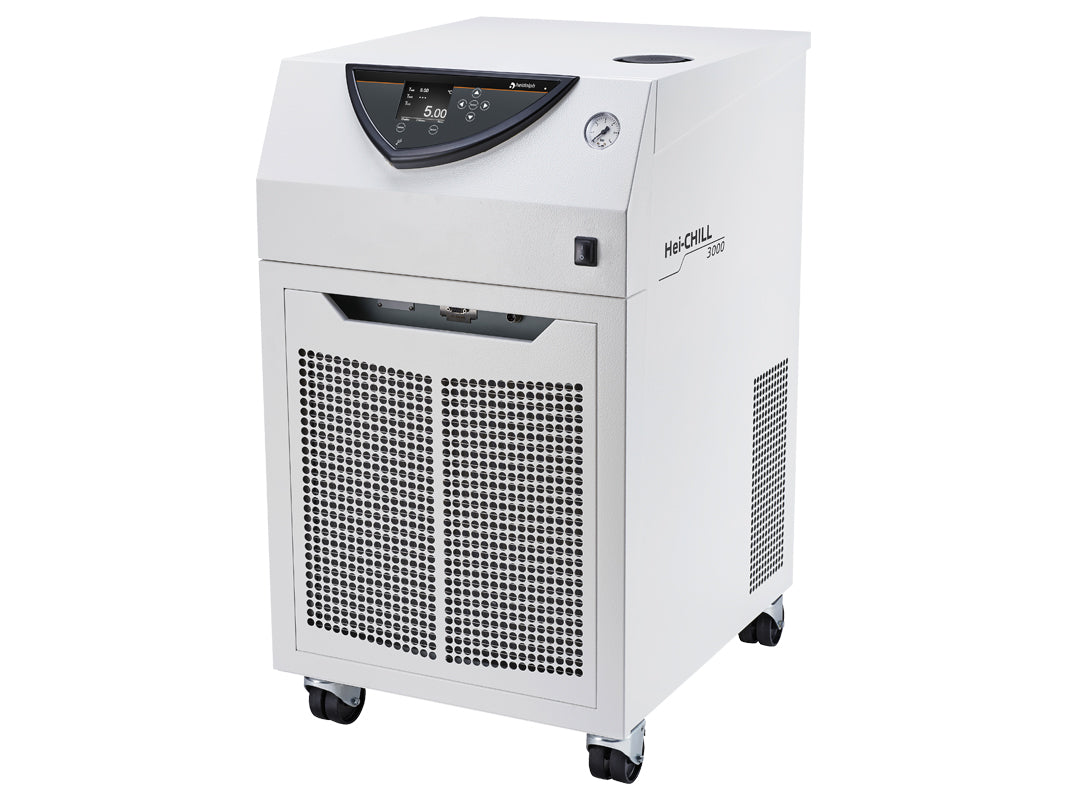

Heidolph Hei-CHILL 3000 Recirculating Chiller
SKU: 036306521
Heidolph Hei-CHILL 3000 Recirculating Chiller
Comprehensive spectrum of services for demanding temperature control tasks with a cooling capacity of 3,000 W.
- Filling opening at the top, drain tap at the rear
- Integrated programmer with 150 segments, can be divided into 5 programs
- Electronic level indicator and low-level alarm
- SmartCool system for digital, energy-saving cooling control, including automatic compressor control
- Clearly arranged control elements, large TFT display and membrane keypad
- USB interface and an alarm contact are integrated as standard features
Product Parameters
Admissible Session | 5 – 31 °C at 80 % rel. humidity 32 – 40 °C decreasing lineary up to max 50% rel. humidity |
Weight | 93 kg |
Protection class (EN 60529) | IP 32 |
Display | 3.5" TFT display (320 x 240 pixels) |
Temperature range | -20 – +40 °C |
Thermal fluid fill volume | 20 – 33 l |
Cooling capacity at +20 °C (20 °C ambient temp.) | 3,000 W |
Cooling capacity at 0 °C (20 °C ambient temp.) | 1,680 W |
Cooling capacity at -10 °C (20 °C ambient temp.) | 1,030 W |
Cooling capacity at -20 °C (20 °C ambient temp.) | 600 W |
Dimensions (w/d/h) | 550 x 650 x 970 mm |
Digital Interface | USB |
Noise level | < 70 dB(A) |
Ambient temperature range (storage) | -20 – 50 °C |
Pump pressure max. | 2 bar |
Pump flow max. | 20 l/min |
Overvoltage Category | II |
Alarm output connection | max. 30 V DC, 0.2 A |
Contamination level | 2 |
Distance to surroundings (front and rear) | 50 cm |
Classification according to DIN 12876-1 | I/NFL |
Refrigerant | R-449A |
GWP(100a) according to IPCC IV | 1397 |
Cooling | Air-cooled |
Standard supply voltage | 230 V (50 Hz) or 208 – 220 V (60 Hz) |
Cooling output | 3,000 W |
Rated Power | 230 V 1,800 W / 208 – 220 V 2,300 W |
Temperature stability | ± 0.05 K |
