Heidolph Hei-VAP Industrial - Glassware Set Shorty RC - MSE Supplies LLC

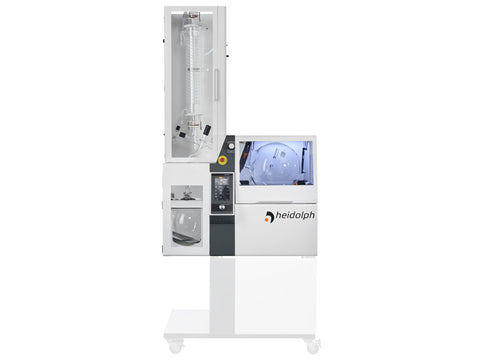

Heidolph Hei-VAP Industrial - Glassware Set Shorty RC

SKU: 036072015

  • $ 62,38195

Heidolph Hei-VAP Industrial - Glassware Set Shorty RC

  • Picture similar
  • Excellent user safety with high-impact transparent PMMA door
  • Non-fogging safety glass and metal frame guard hood provides excellent user protection
  • The evaporation flask is illuminated during operation for increased visibility
  • Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C
  • Receiver cassettes and additional PMMA door housing protect against threat of glassware breakage
  • Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom
  • Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories
  • Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ)
  • Large touch screen control panel with illuminated displays for all process parameters, programmable ramps

Hei-VAP Industrial model with glassware shorty RC - Ideal in laboratories for hood applications or where height is restricted

Identical to glassware R, but features a condenser that is 320 mm shorter; Distillation capacity remains the same.
This glassware assembly includes one ascending condenser, one 20-l evaporating flask, two 10-l receiving flasks.

Programs for your process control

SETpressure
Program for solvent separations

  • This program holds a set vacuum constant and uses a hysteresis
  • Optionally, the process can be predefined via programmable ramps

AUTOaccurate
Supports very precise automatic pressure control for solvent evaporation and separations.

  • This program identifies multiple boiling points automatically by reducing vacuum.

Product Parameters

Rotation speed indicator digital
Permissible ambient conditions 5 – 31 °C at 80 % rel. humidity 32 – 40 °C decreasing lineary up to max 50% rel. humidity
Protection class (EN 60529) IP 20
Lift motor lift
Height adjustment speed 45 mm/s
Height adjustment 180 mm
Drive EC-motor
Heating capacity 4,000 W
Temp. range heating bath 20 – 180 °C
Bath temperature setting digital
Material heating bath stainless steel V4A
Diameter heating bath 400 mm
Volume heating bath 18 l (H2O) / 14 l (oil)
Display vapor temperature yes
Required accessories for display vapor temperature temperature sensor
Integrated vacuum controller yes
Timer yes
Vacuum program SETpressure yes
Vacuum program AUTOaccurate requires AUTOaccurate sensor yes
Programmable ramps yes
Supply Power 4,600 W
Weight without glassware assembly approx. 120 kg
Display 7" Touchpanel
Rotation speed range 6 – 160 rpm
Temperature measurement accuracy ±1 °C
Overheat cut-off protection yes
Automatic heating bath control micro processor
Level regulation of water bath automatically due to level sensor and refill function
Indicating range vapor temperature sensor 0 – 200 °C (accuracy 0.1 °C)
Dimensions (w/d/h) 970 x 690 x 1600 mm (2120 mm incl. Base cart)
Max. condensing surface 1.2 m²
