Heidolph Overhead Stirrer Hei-TORQUE Ultimate 100 USB & RS232 Interface
SKU: 036093090

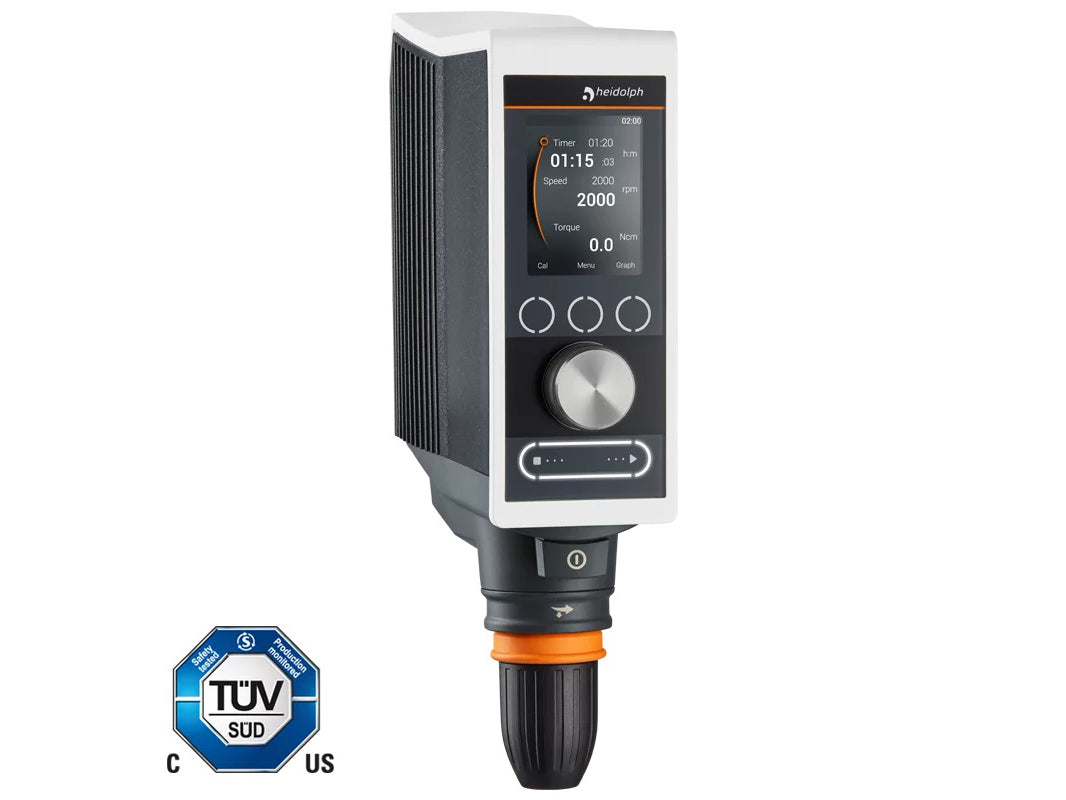

Heidolph Overhead Stirrer Hei-TORQUE Ultimate 100 USB & RS232 Interface
The devices of the Hei-TORQUE Ultimate line are Heidolph high performance overhead stirrers.
The Hei-TORQUE Ultimate 100 is a overhead stirrer with a wide speed range (10 - 2,000 rpm) and a maximum torque of 100 Ncm. It can powerfully stir viscosities up to 60,000 mPas or volumes up to 50 liters (H2O).
In addition, the Hei-TORQUE Ultimate 100 offers, above all, the possibility of ramp programming, process monitoring (including timer function, torque trend display as a value), as well as the necessary equipment for documenting your application parameters. For this it is equipped with two interfaces - USB and RS232 - which give you the greatest flexibility to connect the device to a PC, a programmable logic controller (PLC) or an automation system such as e.g. LabManager. The scope of delivery includes the free Hei-Control software for remote control of up to 4 devices via PC.
The overhead stirrer Hei-TORQUE Ultimate 100 performs every stirring task with minimal noise thanks to the latest engine technology. The safety-related start/stop touch-function serves to minimize the risk of unintentional switching on.
Suitable for use in fume hoods or as a drive for reactor superstructures, the Hei-TORQUE Ultimate 100 has a quick-action chuck (quick chuck with safety ring) with a diameter of 10.5 mm, which can be combined with a large number of stirring tools.
100 Ncm
Performance graph of Hei-TORQUE Ultimate 100
Product Parameters
| Power rating motor input | 90 W |
| Power rating motor output | 50 W |
| Number of speed gears | 1 |
| Rotation speed indicator | Digital color 3.2" |
| Speed control | Electronic |
| Max. torque | 100 Ncm |
| Torque indicator | Precise value |
| Overheat protection | Automatic cut-out |
| Motor protection | Temperature control software |
| Viscosity max. | 60,000 mPa s |
| Stirring cap. (H2O), max. | 50 l |
| Analog / digital interface | USB and RS 232 |
| Admissible Session | Continuous operation |
| Counter/ Timer | Yes |
| Shaft diameter, max. | 10.5 mm |
| Permissible ambient conditions | 5 – 31 °C at 80 % rel. humidity 32 – 40 °C decreasing linearly up to max. 50 % rel. humidity |
| Weight | 4.4 kg |
| Protection class (EN 60529) | IP 54 |
| Rotation speed range | 10 – 2,000 rpm |
| Stay bar size (dia. x l) | 13 x 160 mm |
| Dimensions (w/d/h) | 86 x 247 x 350 mm |
| Rotation direction change | Yes |
| Throught-shaft design | Yes |
