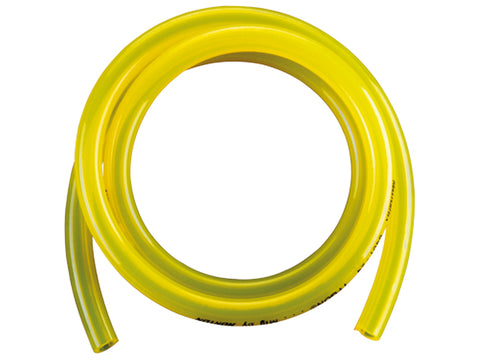

Heidolph Peristaltic Pump Tubing: Tygon (Hydrocarbon) (ID 1.7mm, OD 4.9mm, WT 1.6mm) - MSE Supplies LLC

Heidolph Peristaltic Pump Tubing: Tygon (Hydrocarbon) (ID 1.7mm, OD 4.9mm, WT 1.6mm)

SKU: 036304210

  • $ 4495

Heidolph Peristaltic Pump Tubing: Tygon (Hydrocarbon) (ID 1.7mm, OD 4.9mm, WT 1.6mm)

For Single- and Multi-Channel use (not suitable with cassette small)

  • Application: Especially for hydrocarbons, mineral oil products and distillates
  • Features:
    • Ideal for petrol, kerosene, heating oil, cutting solutions and coolants on a glycol base
    • Resistant to ozone and UV
  • Material: Thermoplastic soft PVC, translucent yellow
  • Complies with the standards: GLP conform
  • Temperature range: -40 to +75 °C
  • Sterilization: Sterilization is not recommended
  • Restriction: Not suitable for concentrated acids, lyes, food and pharmaceutics

Used with

  • Acids: good
  • Lyes: good
  • Solvents: conditional
  • Pressure: good
  • Vacuum: good
  • Viscous media: excellent
  • Sterile media: conditional

Shortcut Description

  • wt: Wall thickness
  • id: Inner diameter
  • od: Outer diameter

Product Parameters

Length 1 meter
Inner diameter  1.7 mm
Outer diameter 4.9 mm
Wall thickness (wt) 1.6 mm
Max. Pressure (continuous / short time) 0.7 / 1.7 bar
Suction height 8.8 mH2O
SP quick Advantage 06 / Precision 06 (min/max) 8 – 186 ml/min
SP quick Value 06 (min/max) 17 – 197 ml/min
SP quick Advantage 01 / Precision 01 (min/max) 2 – 40 ml/min
SP quick Value 01 (min/max) 3 – 41 ml/min
SP standard/vario Advantage 06 / Precision 06 (min/max) 11 – 257 ml/min
SP standard/vario Value 06 (min/max) 22 – 249 ml/min
SP standard/vario Advantage 01 / Precision 01 (min/max) 2 – 55 ml/min
SP standard/vario Value 01 (min/max) 5 – 61 ml/min
Hei-FLOW Advantage 01 / Precision 01 - pump head C 12 - Cassette small (min/max) not suitable
Hei-FLOW Advantage 01 / Precision 01 - pump head C 4 - Cassette small (min/max) not suitable
Hei-FLOW Value 01 - pump head C 12 - Cassette small (min/max) not suitable
Hei-FLOW Value 01 - pump head C 4 - Cassette small (min/max) not suitable
Hei-FLOW Value 01 - pump head C 8 - Cassette medium (min/max) 2.17 – 27 ml/min
Hei-FLOW Value 01 - pump head C 8 - Cassette large (min/max) 2 – 27 ml/min
Hei-FLOW Advantage 01 / Precision 01 - pump head C 8 - Cassette medium (min/max) 1 – 26 ml/min
Hei-FLOW Advantage 01 / Precision 01 - pump head C 8 - Cassette large (min/max) 1 – 27 ml/min
Flow rates pertain to Tygon® (Standard) tubing and water
