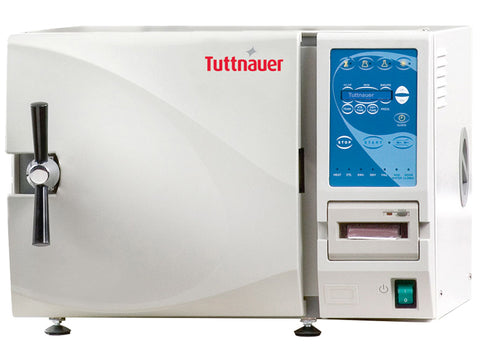

Heidolph Tuttnauer Electronic Autoclave 3870EAP, 230V
SKU: 023210673
Heidolph Tuttnauer Electronic Autoclave 3870EAP, 230V
Every stage of the cycle, including water-fill, heating, sterilization, exhaust and drying, are microprocessor-controlled and completely automatic with these electronic models.
The digital display continuously show you temperature, pressure and running time. Four fully adjustable, single-button programs make these sterilizers easy to use and ensure reproducible runs.
The hand battery backup ensures that all parameter setting and controls are retained in the event of a power failure.
The Electronc sterilizer features:
- Sterilization time to 59 minutes
- Temperature selection from 105 to 137 Degrees celcius (221 to 279 Fahrenheit
- In-line particle filter to protect valves
- Electronic pressure and temperature sensors
- Low-water alarm- sounds when reservoir needs to be refilled.
- Standby heating- keeps chamber warm for quicker cycles
Product Parameters
Power Supply |
2400 W |
|
Current |
13.6 A |
|
Phase |
1 |
|
Chamber Volume |
Gallons |
22 |
Liters |
84 |
|
Chamber Dimensions (Dia. x D) |
Inches |
15 x 27 |
Centimeters |
38.1 x 68.6 |
|
Tray Dimensions (W x D x H) |
Inches |
14 x 26 x 1 |
Centimeters |
35 x 67 x 2.5 |
|
Overall Dimensions (W x D x H) |
Inches |
26 x 34 x 21 |
Centimeters |
66 x 86.4 x 53.3 |
|
Reservoir Volume (W x D x H) |
Gallons |
1.6 |
Liters |
6 |
|
Minimum Water Volume in Reservoir |
Gallons |
0.53 |
Liters |
2 |
|
Net Weight |
Pounds |
225 |
Kilograms |
102 |
|
4980 Erlenmeyer Flask Size |
125 ml |
68 |
500 ml |
17 |
|
1 L, short neck |
10 |
|
2 L, short neck |
4 |
|
500 ml Media Bottle |
17 |
|
Bottom Tray to Top of Chamber |
12 in |
|
Middle Tray |
- |
|
Top Middle Tray |
- |
|
Top Tray |
7 3/8 in |
|
Voltage |
220V |
|
Max. Allowable Working Pressure (MAWP) |
27.6 bar (40 psi) |
|
Water Pump Fuse |
1.25 amps |
|
Air Pump Fuse |
120 V |
2.0 amps |
220 V |
1.25 amps |
|
Shipping Weight |
Pounds |
225 |
Kilograms |
102 |
|
Cubic Feet |
26.8 |
|
Shipping Volume |
m3 |
0.76 |
