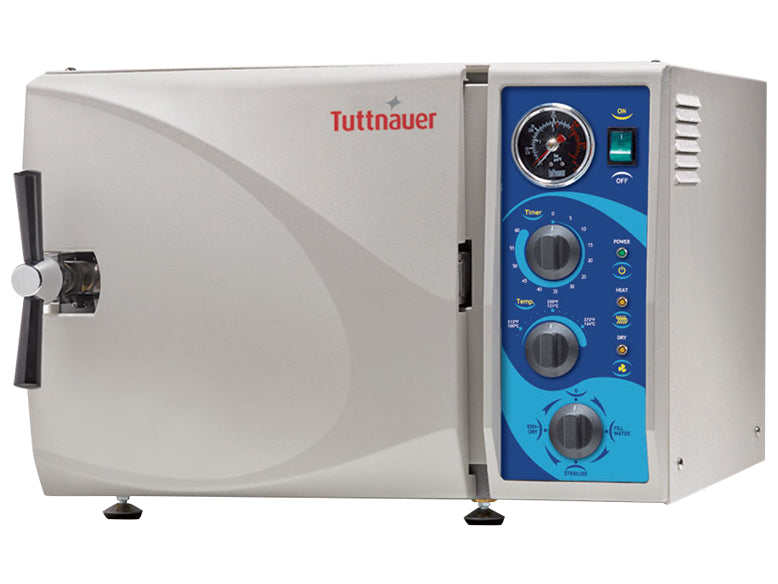

Heidolph Tuttnauer Manual Analog Autoclave 3870M, 230V
SKU: 023210550
Heidolph Tuttnauer Manual Analog Autoclave 3870M, 230V
The 3870M sterilizer has a chamber size with a diameter of 15 inches and a depth of 27 inches. This unit requires single phase, 230 V power and comes standard with an autoclave stand, 2 SS trays, a boost transformer to boost 208 V to 230 V, and a NEMA 6-15 plug.
Product Parameters
| Power Supply | 2400 W |
|
| Current | 13.6 A | |
| Phase | 1 | |
| Chamber Volume | Gallons | 22 |
| Liters | 84 |
|
| Chamber Dimensions (Dia. x D) | Inches | 15 x 27 |
| Centimeters | 38.1 x 68.6 |
|
| Tray Dimensions (W x D x H) | Inches | 14 x 26 x 1 |
| Centimeters | 35 x 67 x 2.5 |
|
| Overall Dimensions (W x D x H) | Inches | 26 x 34 x 21 |
| Centimeters | 50.8 x 50.8 x 38.1 |
|
| Reservoir Volume (W x D x H)) | Gallons | 1.6 |
| Liters | 6 | |
| Minimum Water Volume in Reservoir | Gallons | 0.53 |
| Liters | 2 |
|
| Net Weight | Pounds | 225 |
| Kilograms | 102 | |
| 4980 Erlenmeyer Flask Size | 125 ml | 68 |
| 500 ml | 17 | |
| 1 L, short neck | 10 | |
| 2 L, short neck | 4 | |
| 500 ml Media Bottle | 17 | |
| Bottom Tray to Top of Chamber | 12 in |
|
| Middle Tray | - |
|
| Top Middle Tray | - |
|
| Top Tray | 7 3/8 in |
|
| Voltage | 220 V | |
| Max. Allowable Working Pressure (MAWP) | 2.76 bar (40 psi) | |
| Water Pump Fuse | 1.25 amps | |
| Air Pump Fuse | 120 V | 2.0 amps |
| 220 V | 1.25 amps | |
| Shipping Weight |
Pounds | 225 |
| Kilograms | 102 |
|
| Cubic Feet | 26.8 |
|
| Shipping Volume | m3 | 0.76 |
