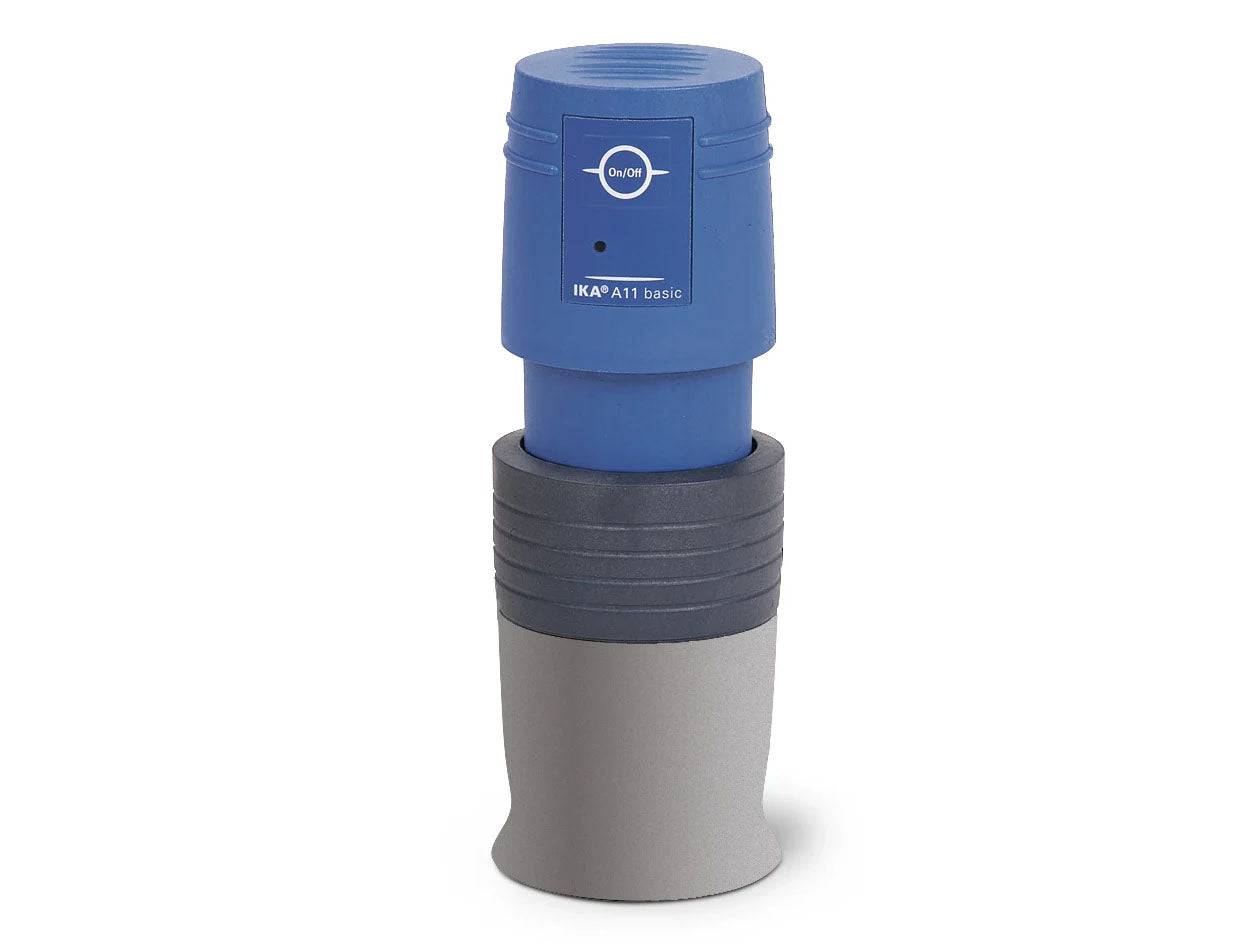

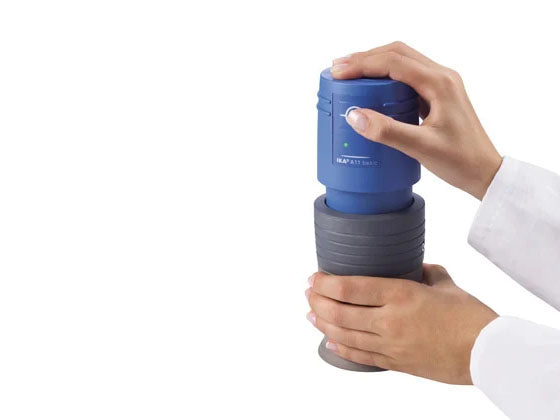

IKA A 11 Basic Analytical Mills (28000 rpm)

SKU: 0002900001

  • $ 2,63995



Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0002900001

Batch mill for 2 different grinding procedures:
Impact grinding of hard, brittle or non-elastic grinding materials with high-grade stainless steel beater. This beater can be used for a Mohs hardness up to 6 (incl. with delivery).
Cutting grinding for pulverizing soft, fibrous materials with a cutting blade (not incl. with delivery).

  • Moist and gluey materials can be pulverized by adding water
  • Grinding chamber made of Tefcel (PTFE, glass fiber-reinforced) with stainless steel inlet (1.4571), useful volume 80 ml (incl. with delivery). For embrittlement of grinding materials with liquid nitrogen in the grinding chamber
  • Optionally, a 250 ml grinding chamber is available

Scope of delivery

  • A 11 basic Analytical mill
  • A 11.1 Spare beater

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA A 11 Basic Analytical Mills (28000 rpm)

Process type batch
Operating principle cutting/impact
Motor rating input 160 W
Motor rating output 100 W
Speed max. 28000 rpm
Circumferential speed max. 53 m/s
Useable volume max. 80 ml
Feed hardness max. 6 Mohs
Feed grain size max. 10 mm
Material beater/cutter stainless steel 1.4034
Material milling chamber stainless steel 1.4571
Power-ON time 1 min
Power-OFF time 10 min
Mill feed can be cooled in milling chamber with dry ice yes
Mill feed can be cooled in milling chamber with liquid nitrogen yes
Dimensions (W x H x D) 85 x 240 x 85 mm
Weight 1.5 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 43
Voltage 100 - 115 V
Frequency 50/60 Hz
Power input 160 W
