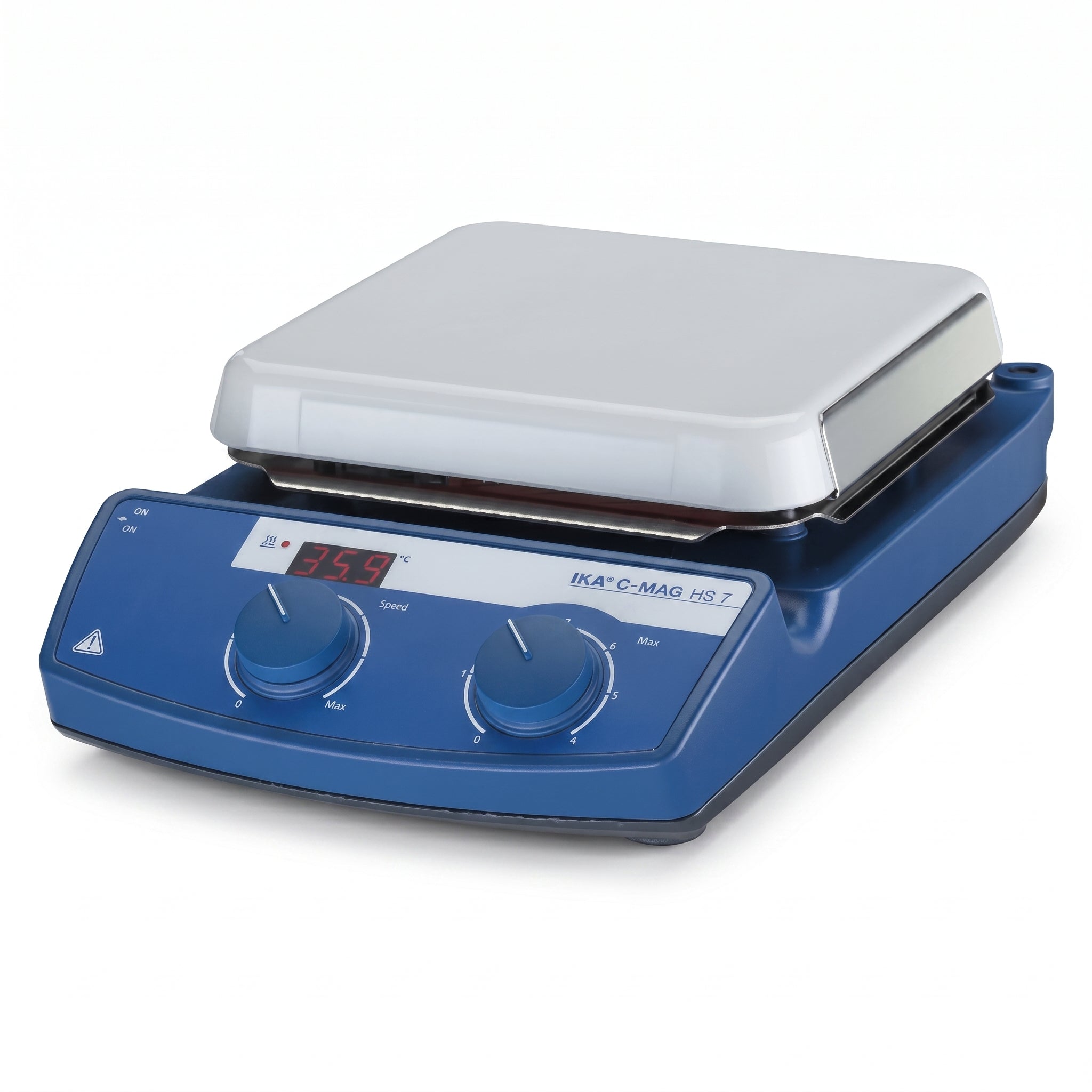

IKA C-MAG HS 7 Magnetic Stirrers (1500rpm, 500°C)
SKU: 0003581201
IKA C-MAG HS 7 Magnetic Stirrers (1500rpm, 500°C)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0003581201
Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 10 L (H2O)
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!
- Exact temperature setting via digital display (LED)
- Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
- Digital error code display
- Elevated control panel for protection against leaking liquids
Scope of delivery
- C-MAG HS 7
- IKAFLON® 20 Magnetic stirring bar
- IKAFLON® 30 Magnetic stirring bar
- IKAFLON® 40 Magnetic stirring bar
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA C-MAG HS 7 Magnetic Stirrers (1500rpm, 500°C)
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) | 10 L |
Motor rating output | 1.5 W |
Direction of rotation | left |
Speed adjustment | scale 0 - 6 |
Speed range | 100 - 1500 rpm |
Stirring bar length max. | 80 mm |
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | +1 K |
Heat output | 1000 W |
Temperature display set-value | LED |
Heating temperature range | 50 - 500 °C |
Heat control | Turning knob |
Heating rate heating plate | 5 K/min |
Temperature setting resolution of heating plate | 5 K |
Connection for ext. temperature sensor | ETS-D5 |
Fixed safety circuit | 550 °C |
Set-up plate material | ceramic |
Set-up plate dimensions | 180 x 180 mm |
Dimensions (W x H x D) | 220 x 105 x 335 mm |
Weight | 5 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 21 |
Voltage | 120 V |
Frequency | 50/60 Hz |
Power input | 1020 W |
