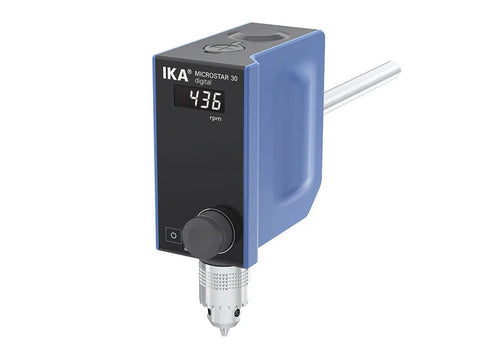

IKA MICROSTAR 30 Digital Overhead Stirrers (20 L, 500 rpm)
SKU: 0025004884
IKA MICROSTAR 30 Digital Overhead Stirrers (20 L, 500 rpm)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025004884
The space-saving high performers from IKA MICROSTAR and MINISTAR series have been complemented by additional models. The new and easy-to-use stirrers convince with perfect basic functionalities, as well as with a compact design.
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:
Compact design
The reduced design and the focus on the most essential aspects make the new IKA MICROSTAR and MINISTAR stirrers reliable laboratory companions.
Constant torque
All models of the IKA MICROSTAR and MINISTAR series guarantee a constant torque over the entire rpm range. The new devices are available in six different versions with rpms of up to 2,000 rpm and a torque of up to 80 Ncm.
Ease of operation
Operation takes place using a stable rotary knob. The display clearly shows the rotational speed.
Rapid updates
Regular software updates can be undertaken rapidly and simply via the USB interface.
Scope of delivery
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:
Compact design
The reduced design and the focus on the most essential aspects make the new IKA MICROSTAR and MINISTAR stirrers reliable laboratory companions.
Constant torque
All models of the IKA MICROSTAR and MINISTAR series guarantee a constant torque over the entire rpm range. The new devices are available in six different versions with rpms of up to 2,000 rpm and a torque of up to 80 Ncm.
Ease of operation
Operation takes place using a stable rotary knob. The display clearly shows the rotational speed.
Rapid updates
Regular software updates can be undertaken rapidly and simply via the USB interface.
Scope of delivery
- MICROSTAR 30 digital
- R 300 shaft protector
- Fasten screws for R 300 (2 pcs.)
- chuck key
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA MICROSTAR 30 Digital Overhead Stirrers (20 L, 500 rpm)
| Stirring quantity max. per stirring position (H2O) | 20 L |
| Motor rating input | 32 W |
| Motor rating output | 22 W |
| Motor principle | Brushless DC |
| Speed display | LED |
| Speed range | 0/50 - 500 rpm |
| Viscosity max. | 20000 mPas |
| Output max. at stirring shaft | 15.7 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 30 Ncm |
| Speed adjustment | Turning knob |
| Setting accuracy speed | ±1 rpm |
| Deviation of speed measurement n > 300rpm | ±1 % |
| Deviation of speed measurement n < 300rpm | ±3 rpm |
| Stirring element fastening | chuck |
| Chuck range diameter | 0.5 - 8.2 mm |
| Hollow shaft, inner diameter | 8.5 mm |
| Hollow shaft (push-through - when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 13 mm |
| Extension arm length | 160 mm |
| Nominal torque | 0.3 Nm |
| Timer display | none |
| Housing material | alu-cast coating / thermoplastic polymer |
| Dimensions (W x H x D) | 60 x 173 x 126 mm |
| Weight | 1.26 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 54 |
| USB interface | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 32 W |
| Power input standby | 0.3 W |
| DC Voltage | 24 V |
| Current consumption | 1300 mA |
