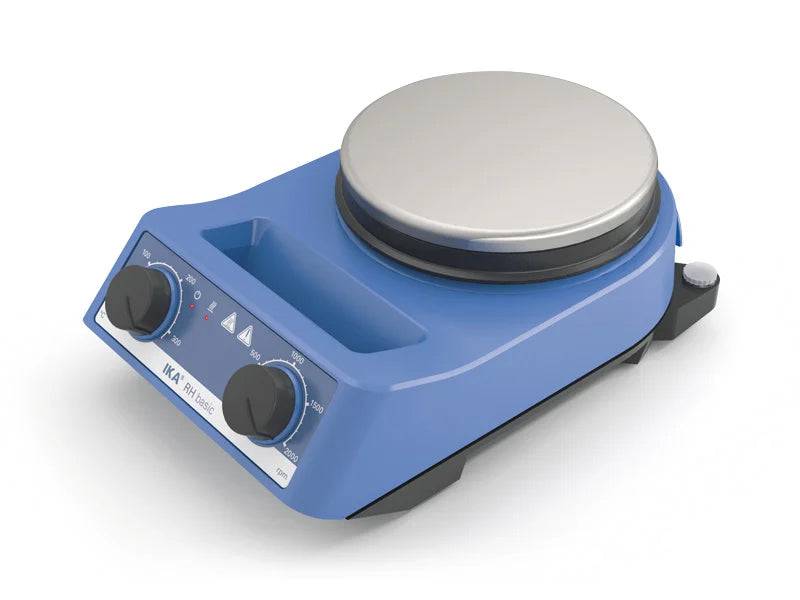

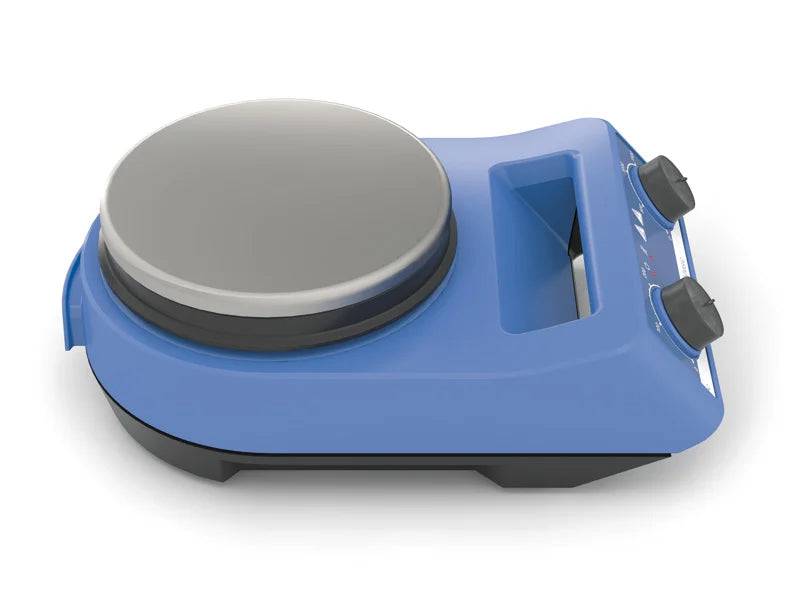

IKA RH Basic Magnetic Stirrers (2000rpm, 320°C) - MSE Supplies LLC

IKA RH Basic Magnetic Stirrers (2000rpm, 320°C)

SKU: 0005019701

  • $ 66395

IKA RH Basic Magnetic Stirrers (2000rpm, 320°C)

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0005019701

Newly designed, economic magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. High heat output of 600 watts and stainless steel compound hot plate ensures rapid heating. Adjustable safety temperature from 100 to 360 °C.
  • Soft-start of the stirring motor
  • Includes M 10 thread for a support rod
  • Strong magnetic field and wide speed range for volumes up to 15 liters
Scope of delivery
  • RH basic
  • IKAFLON® 20 Magnetic stirring bar
  • IKAFLON® 30 Magnetic stirring bar
  • IKAFLON® 40 Magnetic stirring bar
  • H 102 Cover for RH basic
  • H 102.1 Protection handle
  • Screwdriver (use for safety circuit)

                  About IKA

                  Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

                  Technical Data of IKA RH Basic Magnetic Stirrers (2000rpm, 320°C)

                  Number of stirring positions 1
                  Stirring quantity max. per stirring position (H2O) 15 L
                  Motor rating output 2 W
                  Direction of rotation left
                  Speed display set-value scale
                  Speed adjustment Turning knob
                  Speed range 100 - 2000 rpm
                  Stirring bar length 20 - 80 mm
                  Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) +28 K
                  Heat output 600 W
                  Temperature display set-value scale
                  Temperature unit °C
                  Heating temperature range 50 - 320 °C
                  Heat control scale
                  Temperature setting range 0 - 320 °C
                  Connection for ext. temperature sensor ETS-D5
                  Characteristics in the medium with temperature sensor 1L M50 Oil at H1500
                  Heating rate medium 6 K/min
                  Adjustable safety circuit 100 - 360 °C
                  Set-up plate material stainless steel 1.4301
                  Set-up plate dimensions Ø 135 mm
                  Dimensions (W x H x D) 160 x 100 x 250 mm
                  Weight 3.135 kg
                  Permissible ambient temperature 5 - 40 °C
                  Permissible relative humidity 80 %
                  Protection class according to DIN EN 60529 IP 21
                  Voltage 115 V
                  Frequency 50/60 Hz
                  Power input 620 W
