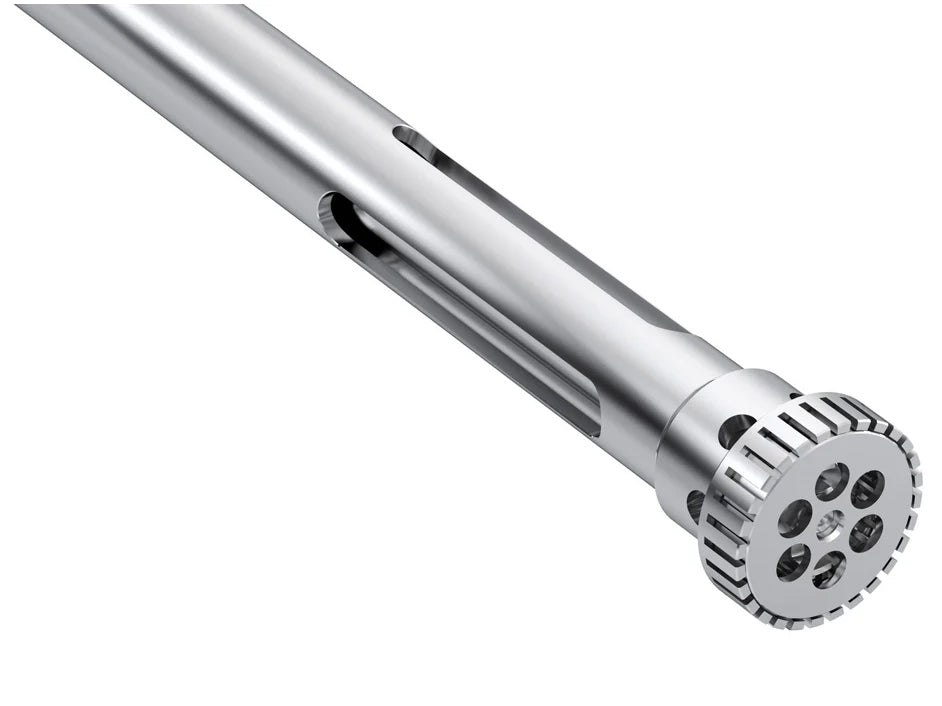

IKA S 65 C - G 65 F Dispersing Tool Dispersers
SKU: 0010001667
IKA S 65 C - G 65 F Dispersing Tool Dispersers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0010001667
Dispersing tool for the disperser T 65 basic/digital
Type of sealing and bearing: Ball-bearing and ceramic plain bearing
Product-touching material: AISI 316L, ceramic
Suitable for solvents: Yes
Sterilizable: all methods (except ball bearing)
Suitable for vacuum: No
Max. working temperature [°C]: 180
Shaft length [mm]: 520
Diameter stator/rotor [mm]: 65/58
Gap between [mm]: 0.5
Recommend emersion depth [mm]: 95 - 450
Recommend working range [ml]: 2,000 - 30,000
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA S 65 C - G 65 F Dispersing Tool Dispersers
| Volume range (H2O) | 2 - 30 l |
| Stator diameter | 65 mm |
| Rotor diameter | 53 mm |
| Gap between rotor and stator | 0.5 mm |
| allowable Speed max. | 9500 rpm |
| Circumferential speed max. | 28.8 m/s |
| Immersion depth | 90 - 450 mm |
| Shaft length | 520 mm |
| Material in contact with medium | AISI 316L, ceramic |
| pH range | 2 - 13 |
| Suitable for solvents | yes |
| Working temperature max. | 180 °C |
| Sterilization methods | all methods |
| Ultimate fineness, suspensions | 5 - 20 µm |
| Ultimate fineness, emulsions | 1 - 10 µm |
| Weight | 3.94 kg |
| Permissible ambient temperature | 5 - 40 °C |
