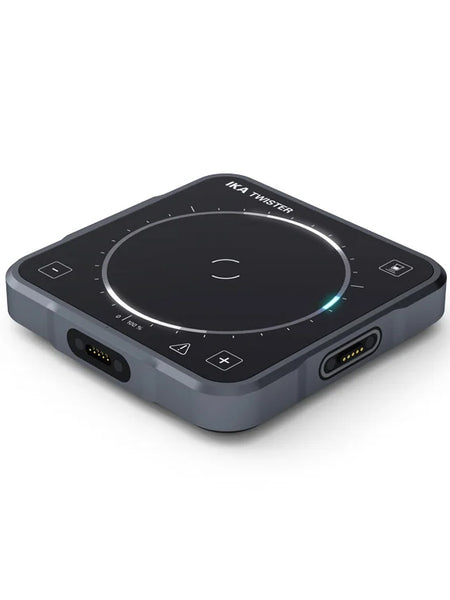

IKA Twister Add-on Unit Magnetic Stirrers (3000 rpm)
SKU: 0020112621
IKA Twister Add-on Unit Magnetic Stirrers (3000 rpm)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0020112621
Add-on unit for existing TWISTER setups.
It is supplied without power supply and without accessories.
Please check whether the power of your currently used power supply is sufficient to supply the planned number of TWISTER devices:
Up to 2 devices: power supply from TWISTER SET 1 & 2
2 to 4 devices: TW. PWR.1 or power supply from TWISTER SET 3 & 4
4 to 30 devices: TW.PWR.2
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA Twister Add-on Unit Magnetic Stirrers (3000 rpm)
| umber of stirring positions | 1 |
| Stirring quantity min. per stirring position (H2O) | 0.005 l |
| Stirring quantity max. per stirring position (H2O) | 5 l |
| Motor rating output | 5 W |
| Direction of rotation | right / left |
| Speed display set-value | LED |
| Speed display actual-value | LED |
| Speed adjustment | Touch key |
| Speed range | 100 - 3000 rpm |
| Setting accuracy speed | 100 rpm |
| Stirring bar length | 10 - 30 mm |
| Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | +6 K |
| Set-up plate material | glass |
| Set-up plate dimensions | 124 x 124 mm |
| Automatic reverse rotation | yes |
| Intermittent mode | yes |
| Viscosity trend measurement | yes |
| Time setting min. | 6 s |
| Time setting max. | 30 min |
| Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) | ±2 % |
| Modular expandable stirring system (2-30 units) | yes |
| Leader- follower operation (minimum 2 units required, leader unit controls synchronously follower unit) | yes |
| Vessel detection (optional activated/deactivated) | yes |
| Dimensions (W x H x D) | 135 x 24 x 135 mm |
| Weight | 0.6 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 66 |
| USB interface | optional |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 10 W |
| Power input standby | 2 W |
| DC Voltage | 24 V= |
| Current consumption | 400 mA |
