IKA VOL-SP-13.5 Viscometers
SKU: 0025006852
IKA VOL-SP-13.5 Viscometers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025006852

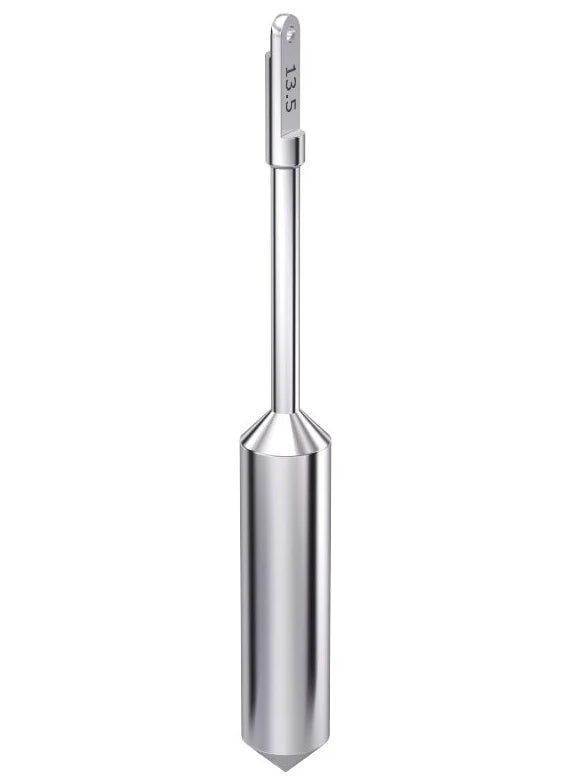

VOL-SP-13.5 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 13.5 ml.
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA VOL-SP-13.5 Viscometers
| Spindle geometry | Cylinder |
| Connection | Thread M2.5 LH |
| Hook connector | yes |
| Diameter | 7.6 mm |
| Immersion depth | 33.6 mm |
| Spindle length | 66.7 mm |
| Sample volume | 13.5 ml |
| Flow Jacket | yes |
| Mounting Bracket | yes |
| Sample container: | Specified chamber |
| Working temperature max. | 100 °C |
| Viscosity Accuracy (FSR) | 2 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 468.7 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 93730 mPa.s |
| Min. FSR match ROTAVISC me-vi | 5000 mPa.s |
| Max. FSR match ROTAVISC me-vi | 1000000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 10000 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 2000000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 40000 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 8000000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 10 x 69 x 10 mm |
| Weight | 0.012 kg |
| Permissible ambient temperature | 5 - 40 °C |
