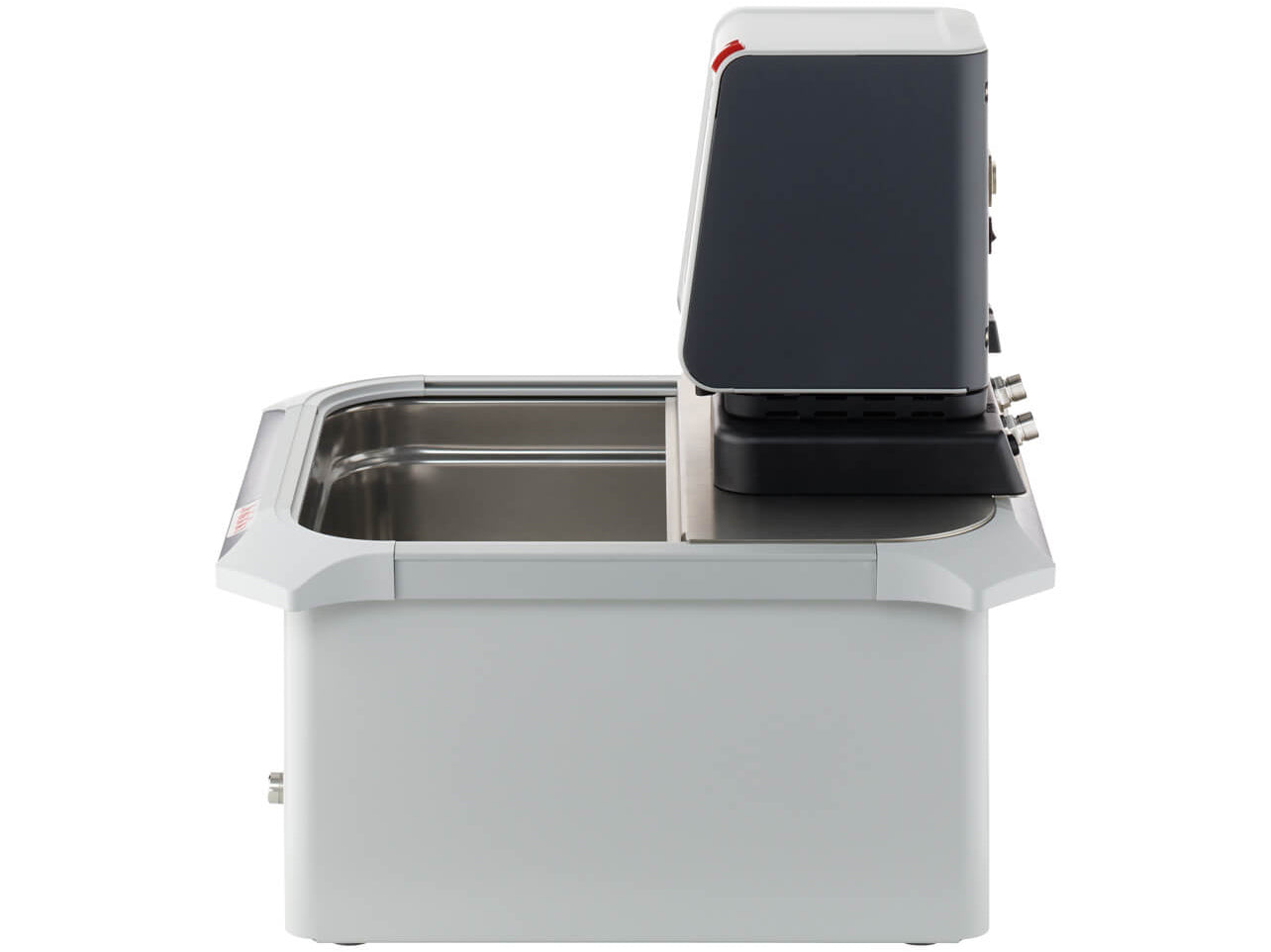

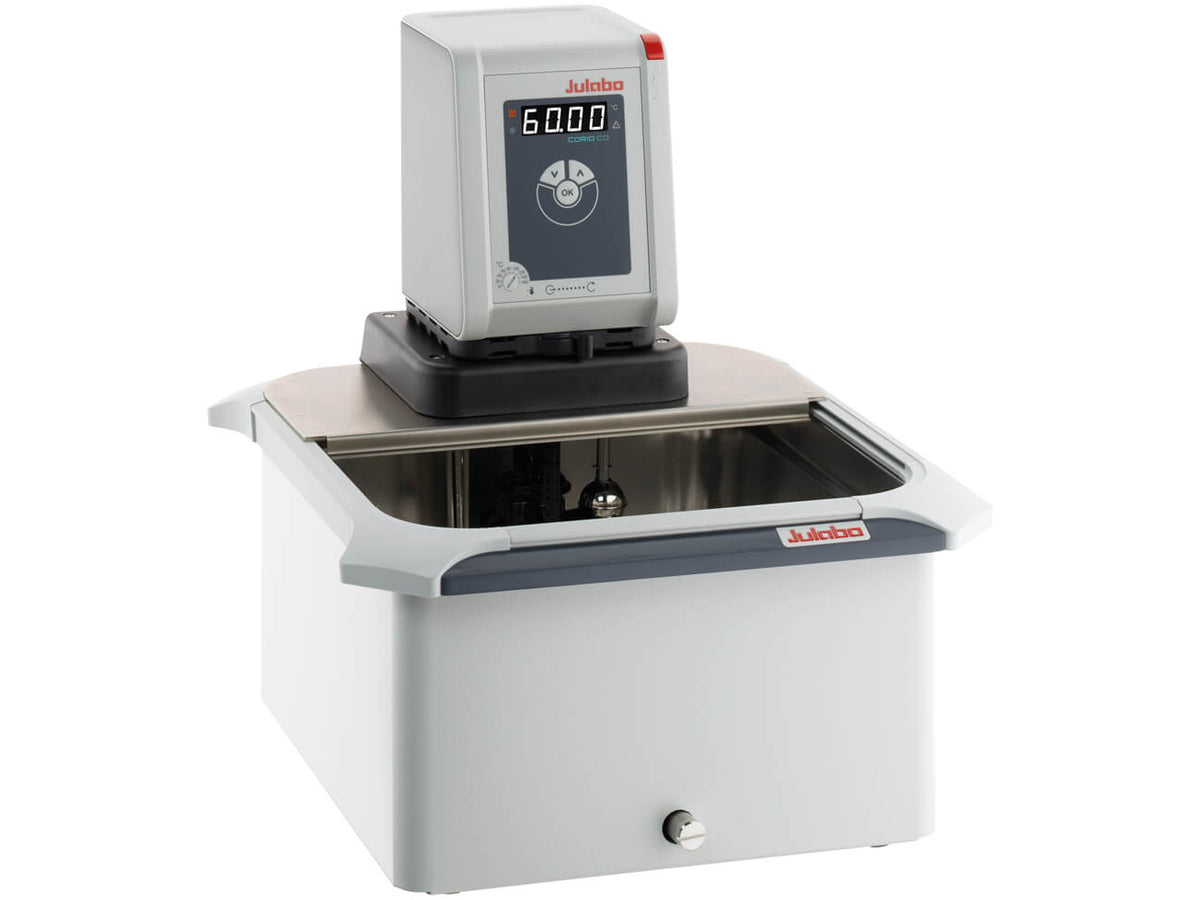

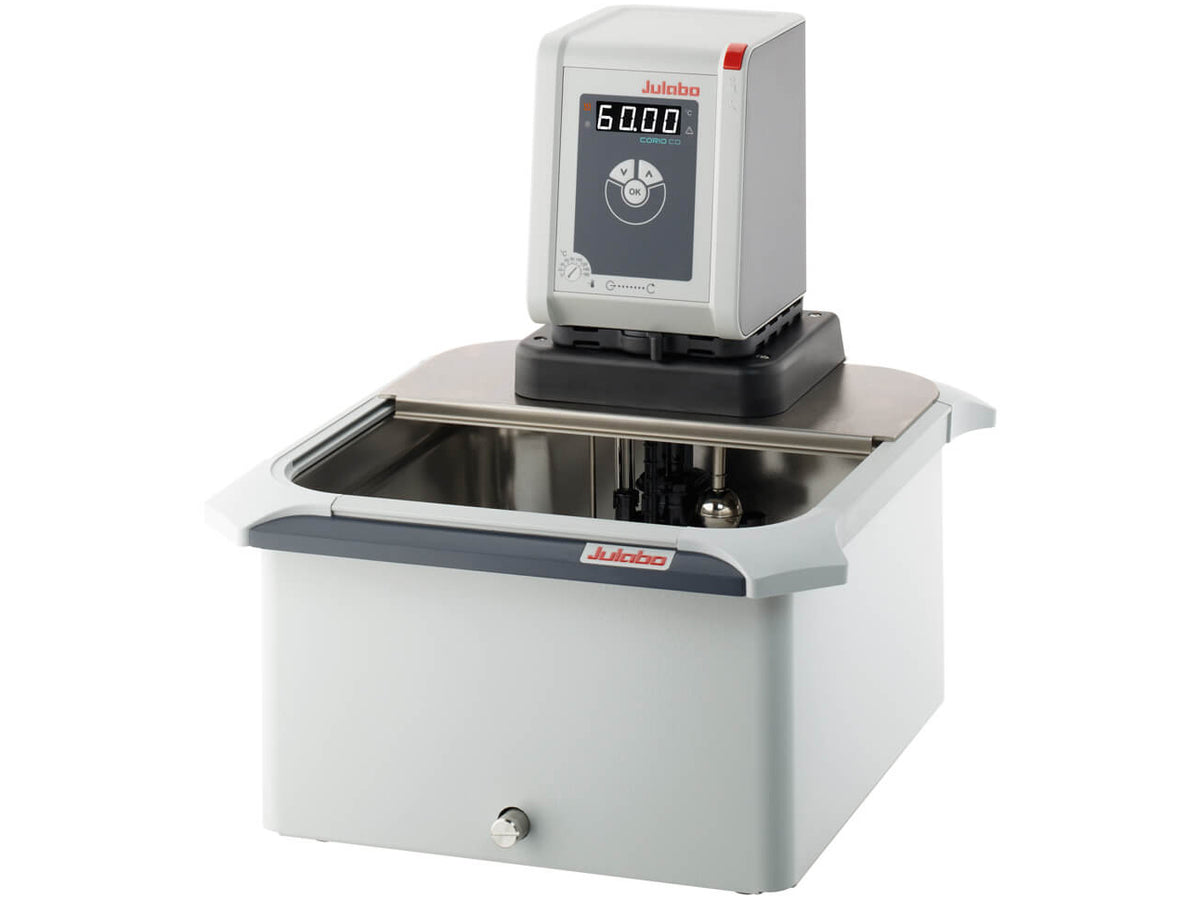

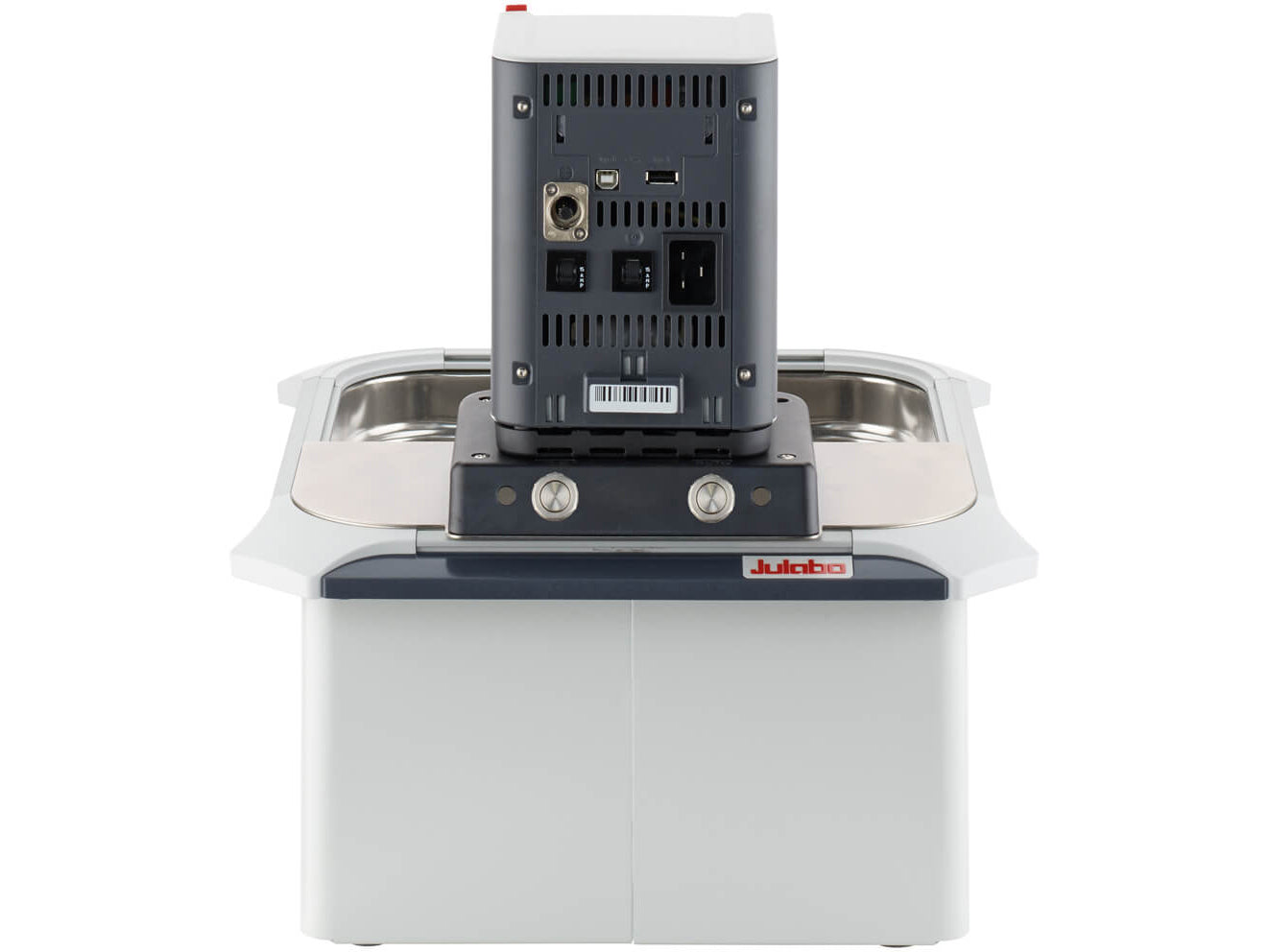

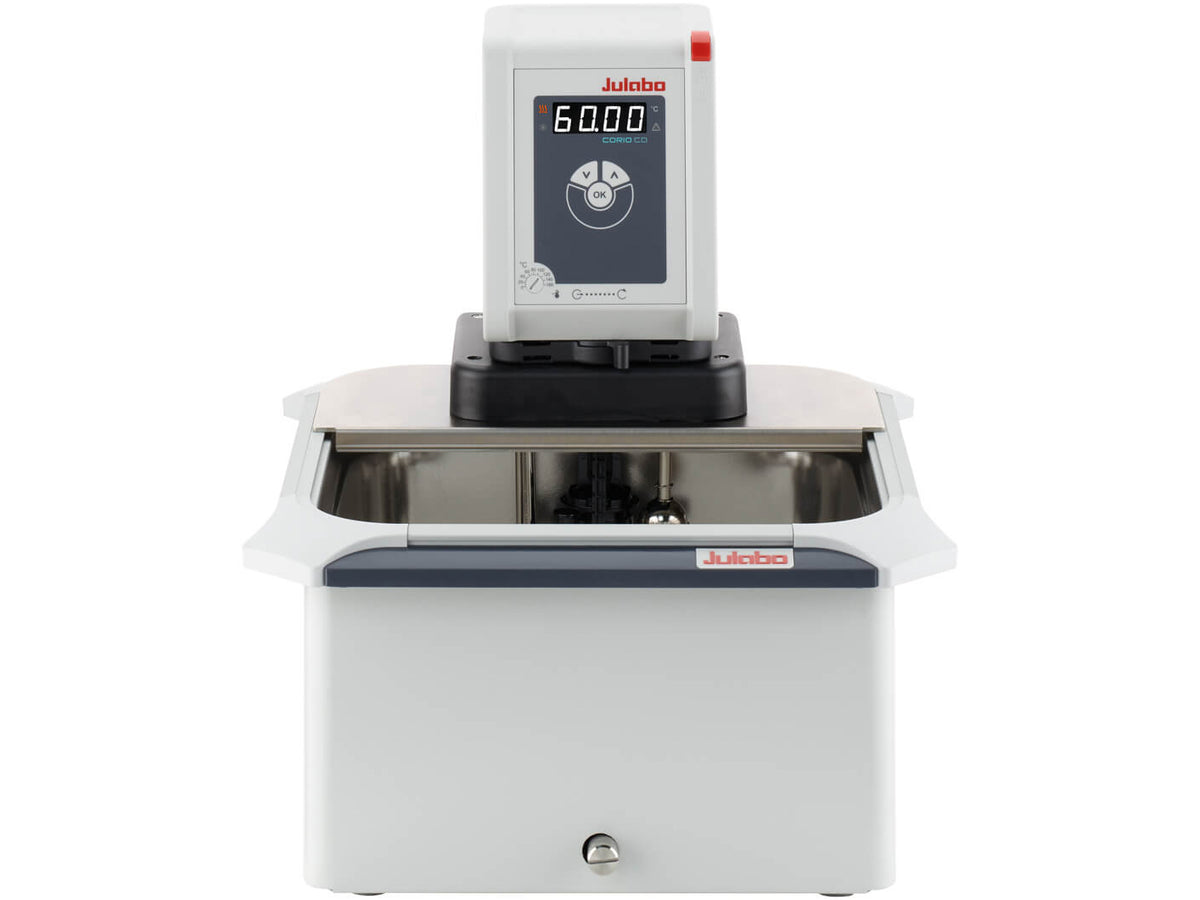

Julabo CORIO CD-B13 Immersion Heating Circulator Open Bath
SKU: 9012413.02
Julabo CORIO CD-B13 Immersion Heating Circulator Open Bath
CORIO™ CD Immersion Heating Circulator Open Bath combinations with transparent or stainless steel bath tanks for routine laboratory tasks. Units include bright LED display and easy operation.
The CORIO™ CD immersion circulator provides temperatures to 100 °C in plastic tanks and to 150 °C in stainless steel tanks. Integrated pump enables temperature incubation for internal or external bath applications. A lever below the display enables simple adjustment between internal and external flow. Pump capacity: 15 L/min; 5.1 PSI. The integrated USB port provide external PC communication for control / monitoring and data logging.
The CORIO™ CD has M16x1 male pump connections and comes with sets of 8 and 12 mm hose barbs. Stainless steel tanks from 13 – 39 L include drain port.
Included with each unit: 2 barbed fittings suitable for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).
Specifications
Part Number |
9012413.02 |
9012413.13 |
Voltage Version |
115V/60Hz |
230V/60Hz |
NRTL |
Yes |
No |
Heating & Cooling |
Heating |
Heating |
Working Temp Range (°C) |
20 - 150 |
20 - 150 |
PCF Pressure (psi) |
4.8 |
4.8 |
PCF Rate (l/min) |
16 |
16 |
