Julabo DYNEO DD Heating Immersion Circulators
SKU: 9021000.04
Julabo DYNEO DD Heating Immersion Circulators

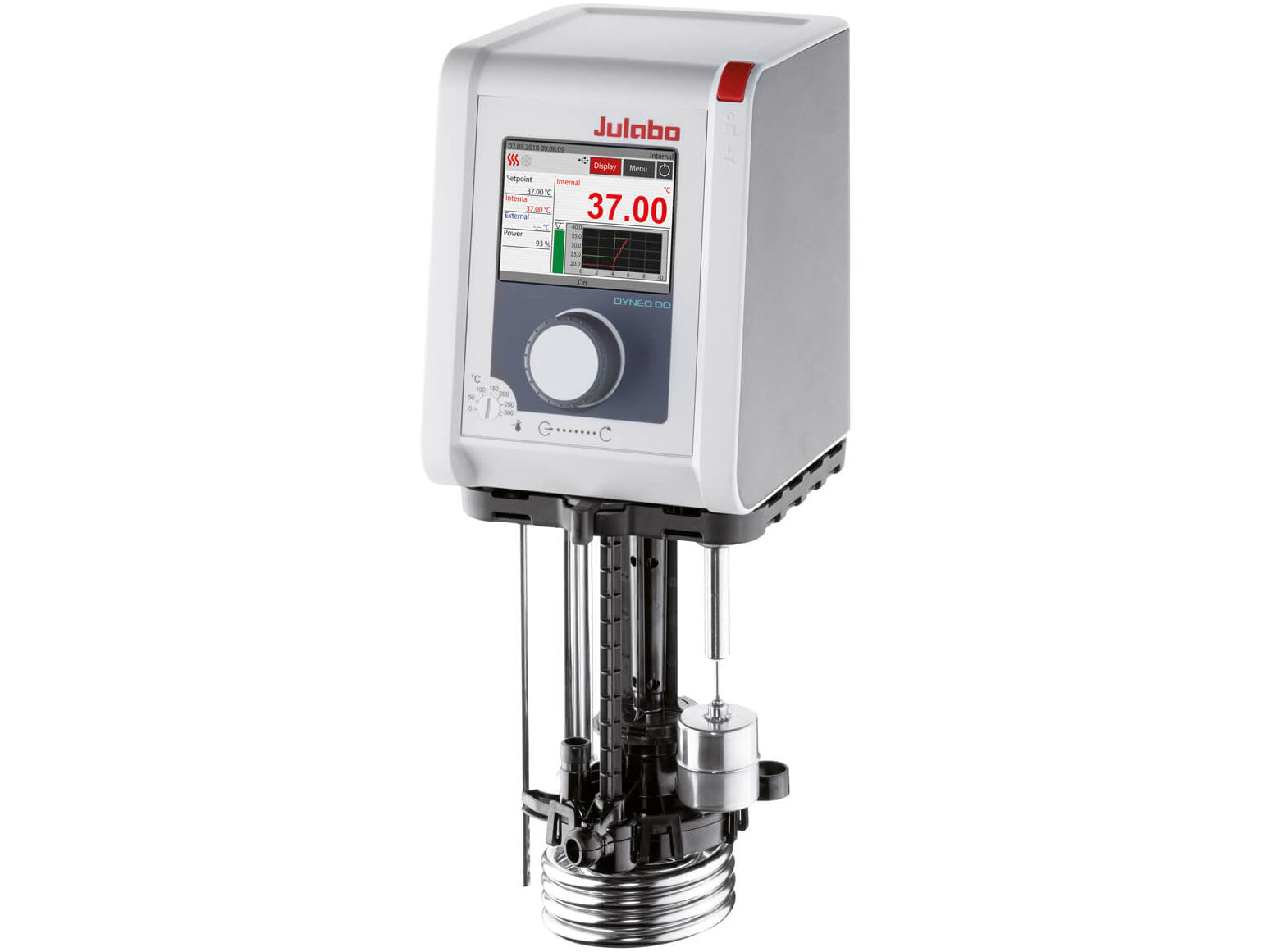

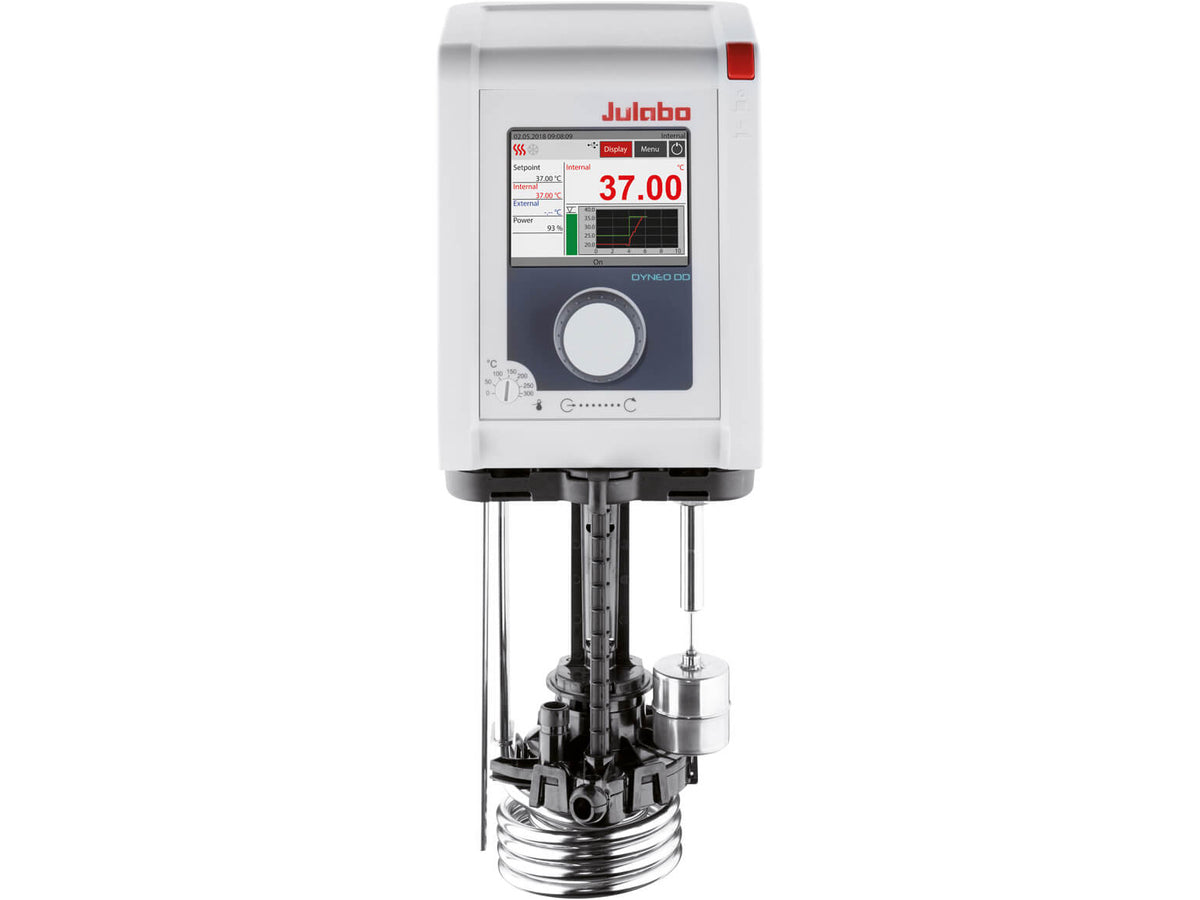

DYNEO™ DD Immersion Circulator for routine laboratory tasks. Unit includes a color TFT display with central rotary knob controller. A quick connect bath clamp is included.

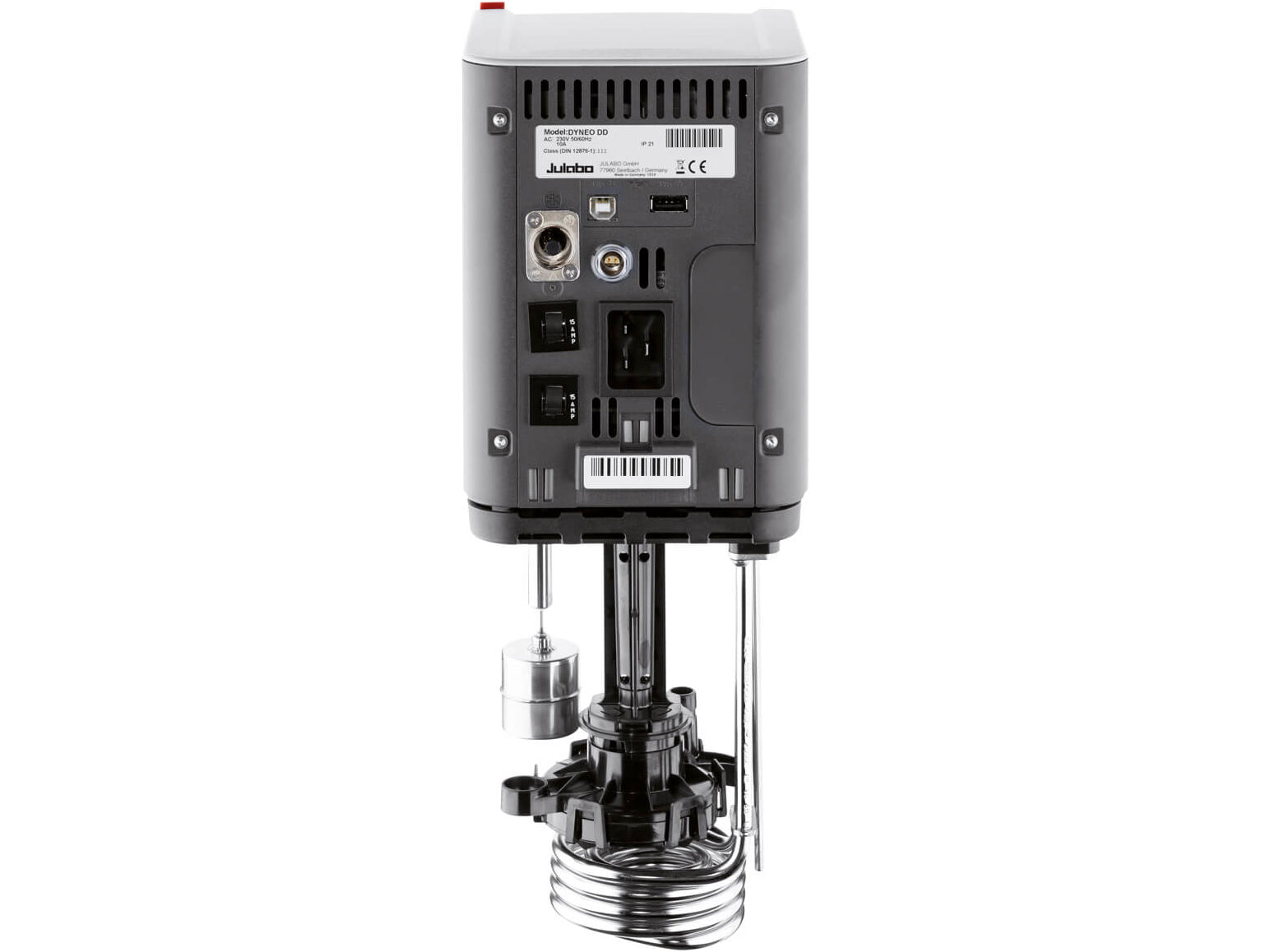

The DYNEO™ DD immersion circulator provides temperatures to 200 °C for internal bath applications up to 50 L. The DD includes a USB port for external PC control / communication and data-logging with optional modules for RS232 or analog (for voltage or current control). Pt100 port for external temperature control. With an optional pump set the DD can circulate to external applications with flow control via a manual lever. Adjustable pump speed enables flow rates from 8…27 L/min with pressures from 1.5…10.2 PSI..
Specifications
Part Number |
9021000.22 |
9021000.22.A |
9021000.22.D |
9021000.33 |
9021000.33.A |
9021000.33.D |
Voltage Version |
100V-115V/50-60Hz |
100V-115V/50-60Hz |
100V-115V/50-60Hz |
200-230V/50-60Hz |
200-230V/50-60Hz |
200-230V/50-60Hz |
Interface |
Base |
Analog |
Digital |
Base |
Analog |
Digital |
Working Temp Range (°C) |
20 - 200 |
20 - 200 |
20 - 200 |
20 - 200 |
20 - 200 |
20 - 200 |
PCF Pressure (psi) |
1.5 - 10.2 |
1.5 - 10.2 |
1.5 - 10.2 |
1.5 - 10.2 |
1.5 - 10.2 |
1.5 - 10.2 |
PCF Rate (l/min) |
8 - 27 |
8 - 27 |
8 - 27 |
8 - 27 |
8 - 27 |
8 - 27 |
