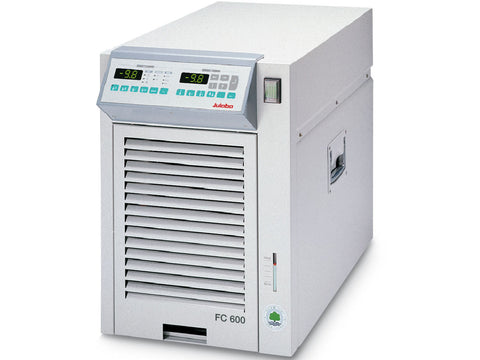

Julabo FC600 FC Series Recirculating Chillers

JULABO FC Series of environmentally friendly recirculating coolers save tap water and provide powerful cooling for short cool-down times.

FC units feature two separate Multi-Displays (LED) for actual and set point values. Models designated FCW are water-cooled which reduces the noise level and reduced heat generation to the laboratory environment. The units feature permanent performance supervision via sensors and pump motor and compressor overload protection. FC models have early warning systems with audible signal for low liquid level with high/low temperature limits as well as freezing/dry running protection. Units are conveniently filled from the front and have a removable venting grid.

FC units feature a built-in heater to facilitate cooling and heating applications for temperatures from -25 °C to +80 °C with an adjustable ratio for inlet/outlet temperature. Models FC1600T and FCW2500T have a Pt100 sensor connection for external measurement and control, temperature recorder and connections for external programming. All FC units have RS232 interface with connections for standby input and alarm output. FC models supplied with 2 barbed fittings for 8 and 12 mm internal ID tubing.

All models feature proportional cooling control which adjusts cooling capacity based upon the application and lowers energy consumption.

Included with each unit: 2 Barbed fittings for tubing 8 and 12 mm ID. (Pump connections M16x1 male).
