Kern Counting System CCA 6K-5M
SKU: CCA 6K-5M

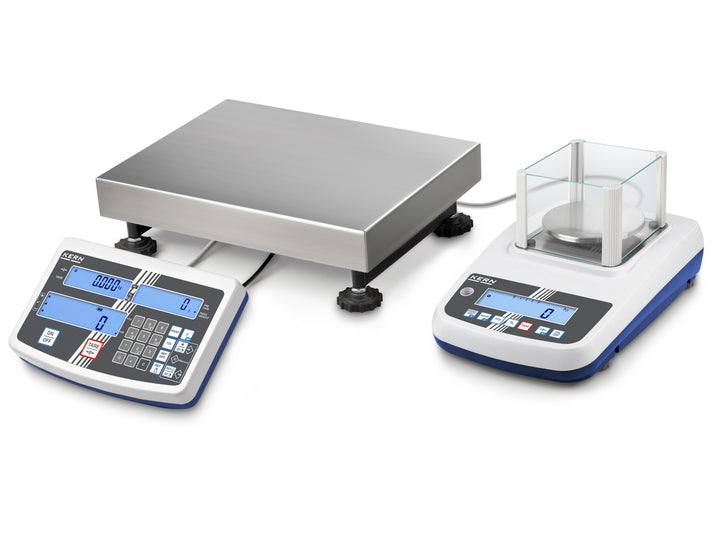

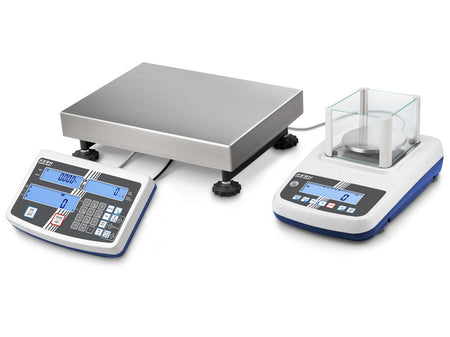

Kern Counting System CCA 6K-5M
MSE Supplies offers a Counting System from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
High-resolution counting system to count the smallest parts in large quantities, maximum number of parts which can be displayed is 999,999, verification optional.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- The highly accurate KERN CCA counting system can replace a whole range of individual balances, efficiently and at a reasonable price
- Thanks to optional verification, it is also suitable for use in verified applications
- The balances are connected to one another with an RS-232 Y-cable, which also allows you to connect a printer
Reference scale KERN EWJ
- This precision balance, which can be used as an individual balance, also fulfils the highest demands through connection with a high-capacity platform
- Automatic internal adjustment, time-controlled every 2 h, guarantees high degree of accuracy and makes the balance independent of its location
- Draught shield standard, weighing space W×D×H 134×128×80 mm
- Protective working cover included with delivery
Quantity scale KERN IFS
- The high-accuracy quantity counting takes place on the weighing platform IFS. In this way even the smallest of parts can be counted in large volumes
- Tough industry standard suitable for use in harsh industrial applications
- Ergonomic display device with large keypad and high-contrast LCD display for easy entry and reading of, e.g., tare weights, reference weights, limit values etc.
- Three displays for weight display, reference weight, total pieces
- 100 item memories for master data such as reference weight, reference quantity, container weight (PRE-TARE) etc.
- Precise counting: The manual reference weight optimisation gradually improves the average value of the piece weight
- Totalising of pieces when counting
- Printout with date and time
- Aluminium single point load cell (1×3000 e), protection against dust and water splashes IP65
- Protective working cover over the display device included with the delivery.
Product Parameters
| Quantity scale - Weighing capacity [Max] | 3 kg; 6 kg |
| Reference scale - Readability [d] | 10 mg |
| Units | kg |
| Dimensions weighing platform (W×D×H) | 300×240×105 mm |
| Dimensions weighing surface (W×D) | 300×240 mm |
| Reference scale - Linearity | 30 mg |
| Quantity scale - Linearity | 0,001 kg; 0,002 kg |
| Ambient temperature | 0 °C – 40 °C |
| Smallest piece weight when piece counting - normal conditions | 200 mg |
| Conformity assessment possible ex works | ü |
| Display type | LCD |
| Display digit height | 20 mm |
| Material weighing plate | coated metal |
| Display device cable length | 5 m |
| Material housing | plastic |
| Net weight approx. | 9 kg |
| IP protection - complete device | IP23 |
| IP protection - platform | IP65 |
| IP protection - load cell | IP65 |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
