Kern Digital Force Gauge (External) FH 100 EXT
SKU: FH 100 EXT

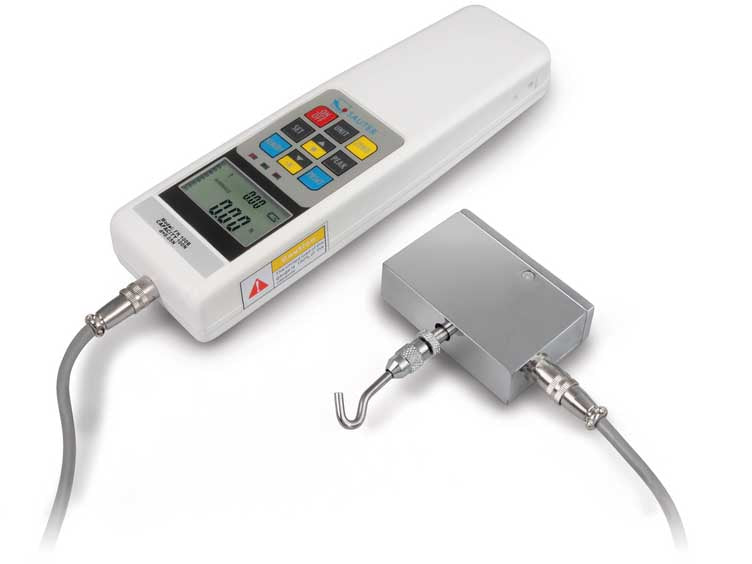

Kern Digital Force Gauge (External) FH 100 EXT
MSE Supplies offers a Digital Force Gauge (External) from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Force-measuring device with external high-resolution measuring cell for small loads.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- Force-measuring device combination consisting of an external measurement sensor and a high-resolution display unit
- Ideal for force measurement of very slight forces or loads in machines and plants
- Peak-Hold function to capture the peak value or Track function for continuous display of measurement
- Push- ＆ Pull function to capture tensile and compressive forces
- Function to set limits: Input of an upper/ lower limit value. A visual and acoustic signal supports the measuring operation, Battery charger included
- Only one measuring cell can be connected per display unit
- Suitable for all SAUTER test stands (When ordering please state which test stand you are using).
Product Parameters
| Measuring range force [Max] (N) | 100 N |
| Readability force [d] (N) | 0,05 N |
| Tolerance (% of [Max]) | 0,5% |
| Measuring head measuring frequency | 2 kHz |
| Number of platforms / channels | 1 |
| Supplied power supply | Accu & Power supply |
| Rechargeable battery | 8,4V / 1200mAh Ni-Hi |
| Memory function | ü |
| Statistic function | ü |
| Limit-setting function | ü |
| Hold function | ü |
| Peak function | ü |
| Dimensions completely mounted (W×D×H) | 232×66×36 mm |
| Interfaces | RS-232 standard |
| Cable length | 2,5 m |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
