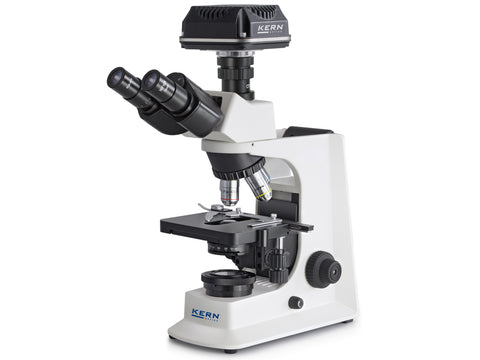

Kern Digital Microscope Set OBL 137C825
SKU: OBL 137C825
Kern Digital Microscope Set OBL 137C825
Buy Kern products from MSE Supplies at the best value.
MSE Supplies offers a Digital Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
A digital microscope is a variation of a traditional optical microscope in which a digital/microscope camera is connected, and image output is displayed on a screen and/or monitor. Most models include software and a computer for use. The magnification produced by a digital camera is determined by the size of the monitor an image is displayed on, giving it greater magnification capabilities than the average optical microscope. The power of magnification in a traditional microscope is determined by multiplying eyepiece magnification by objective lens magnification.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- Laboratory microscopes from the OBL series are also available to you as a comprehensive digital solution with an mounted C-mount camera for your live investigations. Naturally, the appropriate C-mount adapter is included with the delivery
- The mounted C-mount camera is available in different versions and can be used anywhere
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.
OBL 137
- The OBL series stands out through its infinity optical unit and is therefore ideally suited for all demanding transmitted illumination applications. The robust and ergonomic stand base guarantees safe and comfortable working
- Strong and continuously dimmable 3W-LED illumination
- The fixed, pre-centred and focusable 1,25 Abbe condenser with aperture diaphragm and field diaphragm gives you a simplified Koehler illumination, without having to move the centre.
- The large mechanical stage and its specimen holder holds up to two samples at the same time and is quick and easy to focus using a coaxial coarse and fine focusing knob on both sides
ODC 825
- Through the proven CMOS technology, in connection with the USB 2.0 the images are shown quickly and clearly
- These cameras are also ideal for more demanding applications, such as, for example, darkfield, phase contrast and for fluorescence applications.
- Your daily work is made significantly easier with the very best synchronisation, a high frame rate as well as stable image performance together with our Microscope VIS software which we deliver with the product.
- The power supply is through the USB cable, which means that no additional power supply is required
- As well as the camera, the delivery includes our multi-lingual KERN Microscope VIS Basic KERN OXM 901, a USB cable (Length: 2000 mm) various eyepiece adapters and an object micrometer to calibrate the software.
Product Parameters
Optical system | Infinity |
Tube type | Trinocular |
Ocular magnifications | 10 x |
Ocular visual field | 20 mm |
Standard objectives | 4×, 10×, 40×, 100× |
Lens quality | Infinity E-Plan |
Nosepiece screw-in locations | 4 |
Illuminance | Transmitted light |
Illumination type transmitted light | LED |
Illumination intensity transmitted light | 3 W |
Illumination type incident light | none |
Focusing mechanism | coaxial coarse and fine drive |
Fine drive minimum | 0,002 mm |
Camera sensor type | CMOS |
Camera colour depth | Colour |
Camera sensor size | 1/2,5" |
Camera resolution | 5,1 MP |
Interfaces | USB 2.0 |
Camera framerate | 6,8 - 55 fps |
Dimension (W×D×H) | 394×185×450 mm |
Product family | OBL-S |
