Kern IoT-Line Platform Scale IFC 30K5DM
SKU: IFC 30K5DM

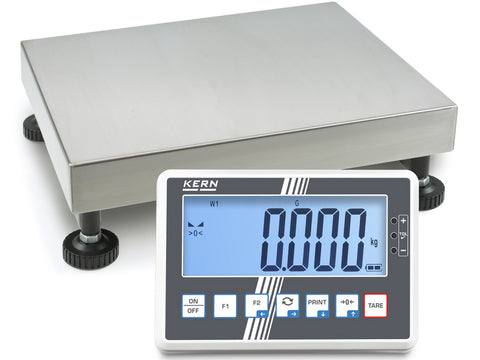

Kern IoT-Line Platform Scale IFC 30K5DM
MSE Supplies offers a Platform Scale from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Robust industrial scales with up to three interfaces, with optional verification.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- Tough industry standard suitable for use in harsh industrial applications
- Standardised, convenient KERN concept of operation, consistency across products in terms of design, menu structure, button functions, interface connection and interface protocol
- Industry 4.0: Data and control commands can be exchanged through the KERN Universal Port using one interface, which can be connected to the housing, or through three parallel interfaces using the KUP Extension box. The following interfaces are available as an option: RS-232, USB, Ethernet, WiFi, Bluetooth
- Each interface can be set up separately, e.g.:
- Interface 1 (WiFi): Continuous sending to a PC for documentation of a process
- Interface 2 (RS-232): Print stable weight
- Interface 3 (analogue module): Controlling a device when the target weight is reached - With Real Time Clock as standard: Enables you to log the weighing results with accurate time information. Even if the power supply is interrupted, the balance can continue to work with the correct time
- Available as an option with alibi memory for paperless archiving of weighing results. This also means the results of weighings with mandatory verification can be electronically evaluated and processed further
- Data query and remote control of the balance using a computer or CRM/ERP systems using the KERN Communication Protocol
- Simplified battery replacement through easily-accessible housing. Particularly advantageous for models with optional verification, as the verification seal remains intact
- Platform: weighing plate of stainless steel, painted steel base, silicone-coated aluminium load cell with protection against dust and water splashes IP65
- Benchtop stand incl. wall mount for display device as standard
- Protective working cover included with delivery.
Product Parameters
| Weighing capacity [Max] | 15 kg; 30 kg |
| Readability [d] | 0,005 kg; 0,01 kg |
| Units | kg, g |
| Verification scale interval [e] | 0,005 kg; 0,01 kg |
| Minimum weight [Min] | 0,1 kg; 0,2 kg |
| Dimensions weighing platform (W×D×H) | 400×300×117 mm |
| Dimensions weighing surface (W×D) | 400×300 mm |
| Reproducibility | 0,005 kg; 0,01 kg |
| Linearity | ± 0,005 kg; 0,01 kg |
| Ambient temperature | -10 °C – 40 °C |
| Smallest piece weight when piece counting - normal conditions | 10 g |
| Conformity assessment possible ex works | ü |
| Display type | LCD |
| Display digit height | 48 mm |
| Material weighing plate | stainless steel |
| Material platform | steel, powder-coated |
| Display device cable length | 3 m |
| Net weight approx. | 8 kg |
| IP protection - display | no IP protection |
| IP protection - platform | no IP protection |
| IP protection - load cell | IP65 |
| Construction type of the scale | Multi-range balance |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
