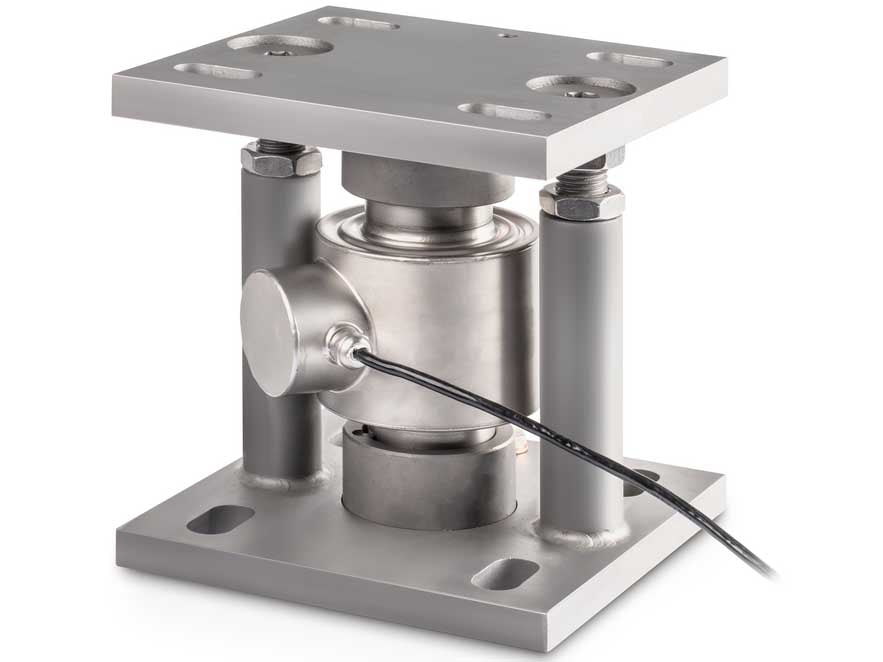

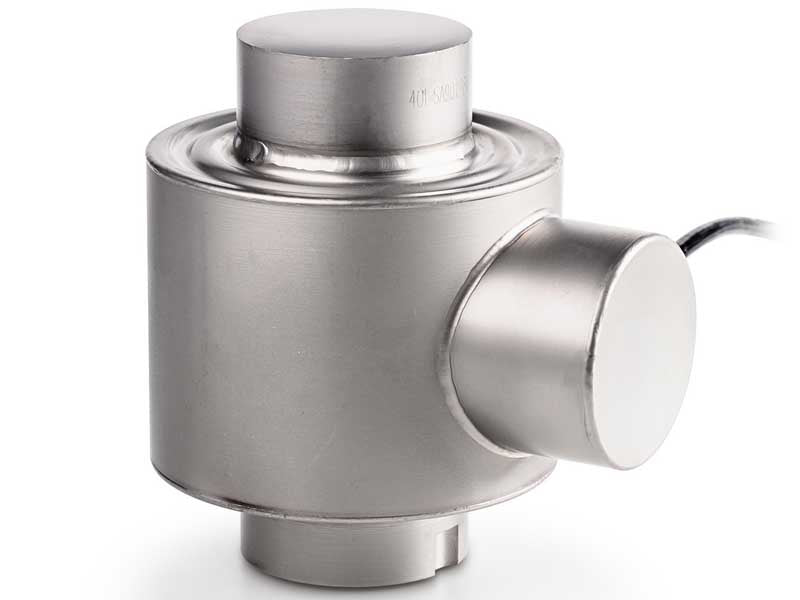

Kern Load/Force Measuring Cell CD 40-3P1
SKU: CD 40-3P1
Kern Load/Force Measuring Cell CD 40-3P1
MSE Supplies offers a Load/Force Measuring Cell from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Loadcell made of stainless steel.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- RoHS compliant
- Area of application: Measuring mass as well as compressive force
- Suitable for vehicle scales, weigh hoppers, vehicle testing equipment, test stands.
Product Parameters
| Weighing capacity [Max] | 40000 kg |
| Measuring range force [Max] (N) | 400 kN |
| Design | Load cell |
| Directions of force | compression |
| Measuring applications | force, mass |
| Load cell - Combined error | 0,023% |
| Load cell OIML class | C3 |
| Load cell - Resolution (verifiable) | 3000 e |
| Load cell - Y-value | 10000 |
| Load cell - characteristic value - nominal | 2 mV/V |
| IP protection - complete device | IP68 |
| Material | stainless steel |
| Load cell connection | 4-wire |
| Cable length | 15 m |
| Mounting - force application | Pressure piece |
| Mounting - force dissipation | Pressure piece |
Note
- EX version or accuracy class C4 on request.
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
