Kern Spring Tester - Electronic, One Column SD 100N100
SKU: SD 100N100
Kern Spring Tester - Electronic, One Column SD 100N100
MSE Supplies offers a Spring Tester - Electronic, One Column from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.

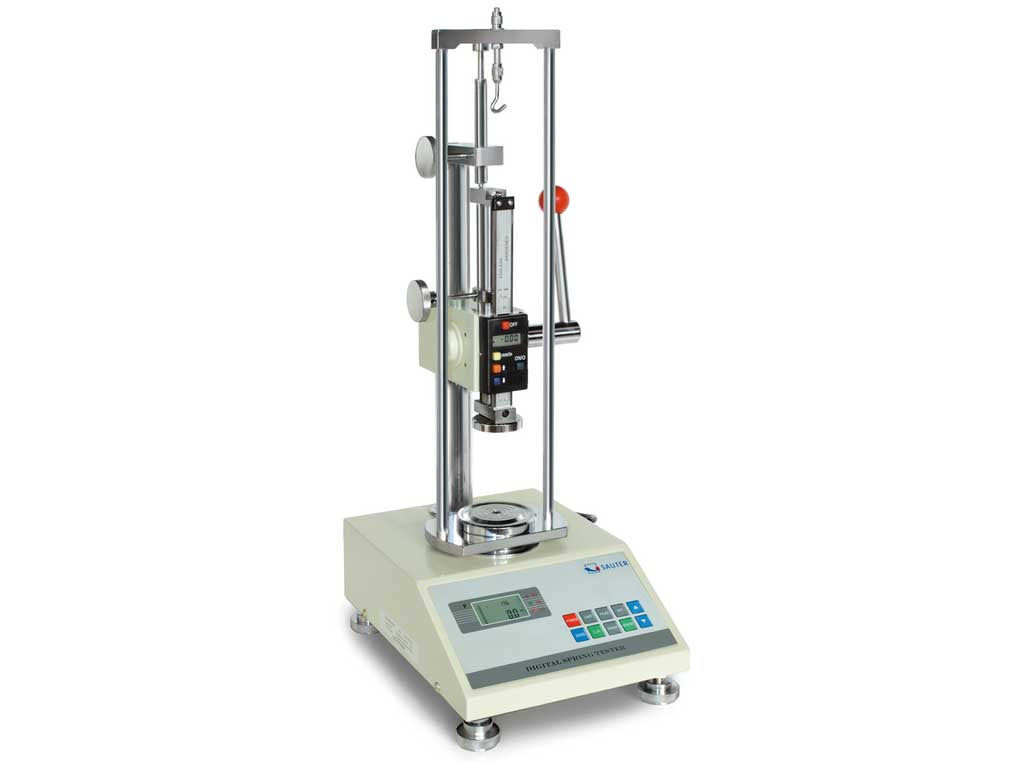

Manual test stand for tensile and compressive testing of springs, medium version up to 100 N.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- Spring tester for tension and compression tests
- Measuring device integrated in housing

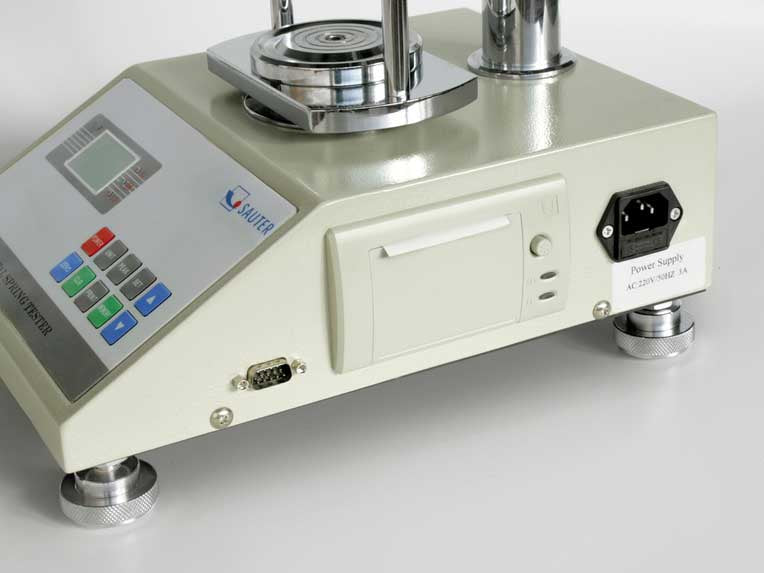

- Integrated thermal printer
- Digital length measuring unit SAUTER LA as standard:
- Manual zero adjustment possible
- Pre-length can be set manually
- Readability: 0,01 mm - 10 memories to print out the results or to calculate average values
- Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by an audible and visual signal
- Peak load display (peak hold)
- Selectable measuring units: kg N lbf.
Product Parameters
| Measuring range force [Max] (N) | 100 N |
| Traverse distance with lever movement / release [Max] | 100 mm |
| Input voltage power supply / power [Max] | 220 V AC, 50 Hz |
| Material housing | metal, lacquered |
| Dimensions completely mounted (W×D×H) | 235×300×620 mm |
| Product family | SD-M |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
