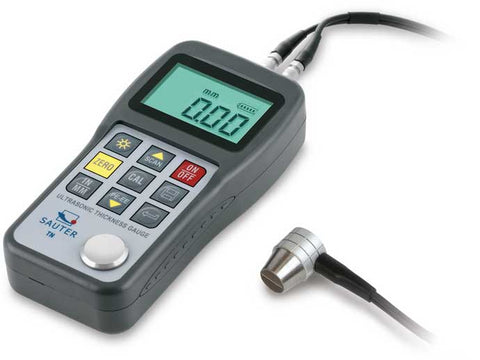

Kern Ultrasonic Thickness Gauge External TN 80-0.1US
SKU: TN 80-0.1US
Kern Ultrasonic Thickness Gauge External TN 80-0.1US
MSE Supplies offers a Ultrasonic Thickness Gauge External from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Portable measuring device for ultrasonic material thickness testing.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- External measuring head
- Scan mode (10 measurements per sec.) or single point measuring mode possible
- Internal memory for up to 20 files (with up to 100} values per file)
- Selectable measuring units: mm inch
- Scope of delivery: Operating instructions, batteries, external measuring head (∅ 6 mm) and ultrasound contact gel

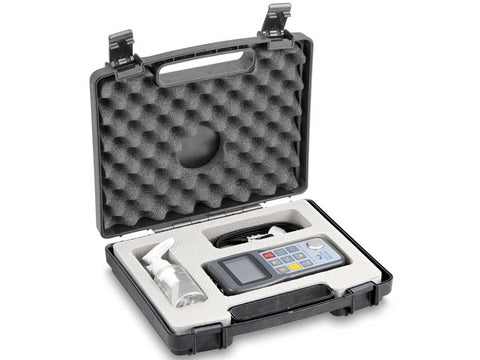

- Delivered in a robust carrying case.
Product Parameters
| Material thickness pulse-echo [Max] (mm) | 80 mm |
| Material thickness pulse-echo [Min] (mm) | 0,75 mm |
| Measuring range pulse-echo | 0,75 mm – 80 mm |
| Measuring range echo-echo | – |
| Readability material thickness [d] (mm) | 0,1 mm |
| Tolerance (% of [Max]) | 0,5% |
| Units | mm, inch |
| Speed of sound [Max] (m/s) | 9999 m/s |
| Speed of sound [Min] (m/s) | 1000 m/s |
| Speed of sound | 1000 m/s – 9999 m/s |
| Measuring head measuring frequency | 7 MHz |
| Battery | 2×1.5 V AA |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 150×74×32 mm |
| Cable length | 0,9 m |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
