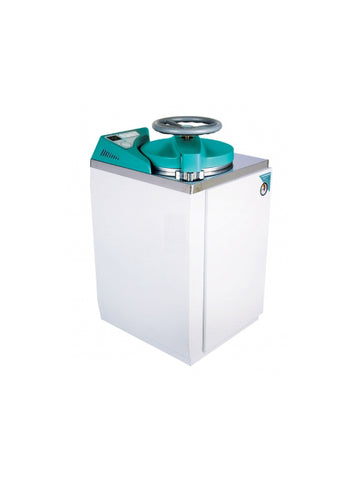

Jeio Tech Lab Companion Autoclaves (Vertical Type)
SKU: AAHL1015K
Lab Companion Autoclaves (Vertical Type)
Buy Lab Companion products from MSE Supplies at the best value.
MSE Supplies offers Lab Companion Autoclaves (Vertical Type) from Jeio Tech. All models come with microprocessor control with reliable safety functions guarantees optimum sterilization temperature.
Country of Origin: Made in South Korea
Manufacturer: Jeio Tech
Main Features:
- Microprocessor controller and temperature calibration function allows for high precision temperature control.
- Automatic sterilization system for unattended operation.
- Convenient operation modes for various uses.
- Slide opening door with plastic cover of low thermal conductivity prevents burns from the contact.
- Conveniently monitored by an independent control display, sterilization process display, and pressure gauge.
Accessories:
-
Recorder set (Dot, 6 points)
-
Recorder set (Thermal Line)
-
Pressure sensor
- Exhaust tank
- Temperature sensor for recorder
For accessories, please contact us so we can help you choose appropriate products for your needs.
Technical Specifications:
SKU# |
AAHL1015K |
AAHL1025K |
AAHL1035K |
AAHL1045K |
|
Dimension |
Interior (inch) |
15.75x18.03 |
15.75x21.97 |
15.75x29.84 |
15.75x35.75 |
Exterior (inch) |
24.57x26.46x34.25 |
24.57x26.46x38.23 |
24.57x26.46x42.64 |
24.57x26.46x48.54 |
|
Exterior with exhaust tank (inch) |
28.42x26.46x34.25 |
28.42x26.46x38.23 |
28.42x26.46x42.64 |
28.42x26.46x48.54 |
|
Door max. opening (inch) |
39.84x26.46x34.72 |
39.84x26.46x38.7 |
39.84x26.46x43.11 |
39.84x26.46x49.01 |
|
Basket (inch) |
14.96x7.09 |
14.96x9.05 |
14.96x12.99 |
14.96x15.94 |
|
Chamber volume (L) |
50 |
65 |
85 |
105 |
|
Net weight (lbs) |
208.34 |
219.36 |
229.28 |
242.51 |
|
Control |
Microprocessor PID control |
||||
Temperature |
Sterilization temp. (℃ / ℉) |
110 to 123 / 230 to 253.4 |
|||
Melting temp. (℃ / ℉) |
60 to 100 / 140 to 212 |
||||
Pressure |
Sterilization at 121℃ (kg/cm2) |
1.1 to 1.2 |
|||
Gauge range in analog (MPa) |
-0.1 to 0.6 |
||||
Permissible altitude (m) |
Up to 800 |
||||
Safety |
Over temperature protector / Pressure safety valve / Over current protector |
||||
Warning alert (over temp. / low temp. / low heat / sterilization fail / low water level) |
|||||
Timer |
0 to 999 min. |
||||
Electrical requirements (230V, 50/60 Hz) |
14.3A |
14.3A |
14.3A |
14.3A |
About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.
MSE Supplies is an authorized distributor for Jeio Tech.
