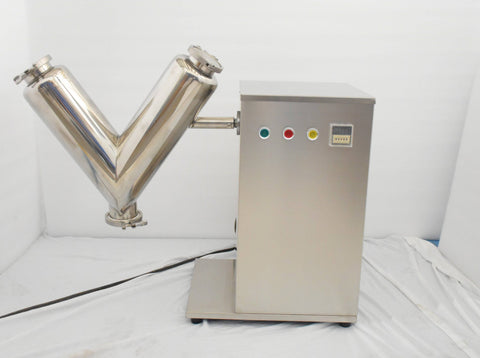

MSE PRO Lab Scale V-shape Mixer
SKU: MA0801
Product Features for the MSE PRO Lab Scale V-shape Mixers from MSE Supplies LLC
- Closed disk valve design to avoid dust
- Polished grade 304 stainless steel container to minimize contamination (316 grade stainless steel is also available upon request)
- Unique mixing barrel structure
- High efficiency blending
- No dead zones
These lab scale V-shape mixers from MSE Supplies are widely used for powder/granule mixing in pharmaceutical, food, chemical, metallurgy and electronics research and industries.
The default input electric voltage is single-phase 220V. 110V version is available with additional cost. MSE Supplies can offer larger size V-shape mixers with the volume up to 500L. Please Contact Us for quotation.
| Model Number | Container Volume (L) | Mixing Volume (L) |
Rotation Speed (RPM) |
Power (kW) | Outer Dimension (mm) | Net Wight (kg) |
| MA0801 | 5 | 2.5 | 10-50 | 0.37 | 1060*410*890 | 78 |
| MA0802 | 10 | 5 | 10-50 | 0.37 | 1060*410*890 | 82 |
| MA0803 | 20 | 10 | 8-34 | 0.75 | 1360*480*980 | 139 |
