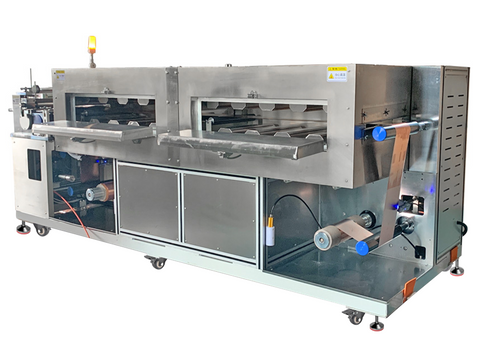

MSE PRO Laboratory Transfer Coating Machine With Two Oven For Battery Electrode
SKU: BR0417
MSE PRO™ Laboratory Transfer Coating Machine With Two Oven For Battery Electrode
MSE PRO™ Laboratory Transfer Coating Machine offers advantages such as high precision, uniform coating, and flexible operation, making it ideal for small-scale production in research and development settings. It is widely applied in fields like thin-film deposition, optical materials, electronic components, and new energy materials, particularly where strict control of coating thickness, uniformity, and surface quality is required.
- High Precision: It allows for accurate control of coating thickness, meeting strict experimental requirements.
- Excellent Uniformity: Ensures consistent coating distribution for uniform material performance.
- Flexibility: Easy to operate, suitable for various coating materials and process needs.
- Efficiency: Quick configuration changes make it ideal for multiple tests and optimizations in research settings.
-
Small-Scale Production: Suitable for laboratory-scale production, reducing costs for experimental batches.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Lab Transfer Coating Machines. Please contact us for more information.
Specifications:
| SKU# | BR0417 |
|
Coating method |
Continuous coating, intermittent coating |
|
Number of oven sections |
2 sections |
|
Mechanical speed |
Max. 2m/min |
|
Coating speed |
0~1m/min |
|
Coating gap |
Max. 100mm (free setting without limit) |
|
Substrate thickness |
Copper foil： 8～30um Aluminum foil： 8～30um |
|
Roll surface design width |
330 mm |
|
Ensure coating width |
≤300mm |
|
Coated rollers, rubber rollers |
Φ120mm |
|
Squeegee rollers |
Φ80mm |
|
Coating accuracy |
±3um |
|
Double-coated film weight accuracy (mg/cm2) |
Coated centre value ±1.0% |
|
Slurry viscosity |
2000~12000 mpas |
|
Single-coated dry thickness range |
20-200μm |
|
Solid content |
20~85% |
|
Coating size accuracy (mm) |
L≤±1、W≤±0.5 |
|
Positive and negative alignment accuracy (mm) |
L≤±1、W≤±0.5 |
