100 ml Tungsten Carbide Planetary Mill Jar - MSE Supplies LLC

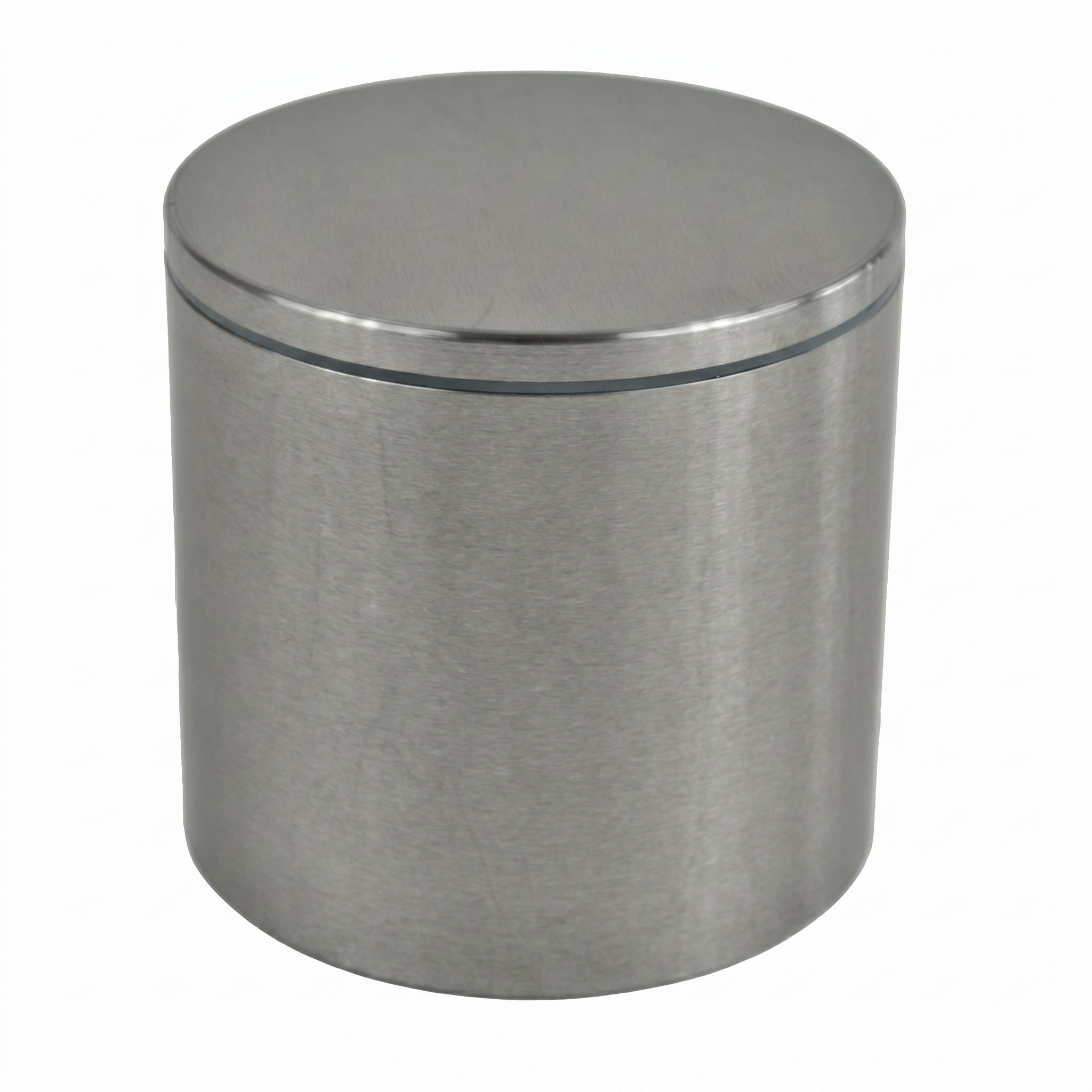

MSE PRO 100 ml Tungsten Carbide Planetary Mill Jar

SKU: JA0801

  • $ 93995

Specifications for Tungsten Carbide Mill Grinding Jar

  • High polished tungsten carbide ball mill grinding jars, highly wear-resistant and resistant to acid and alkali.
  • High hardness, can meet the vast majority of metal powder crushing and refining.
  • Each jar set includes grinding jar, lid, rubber sealing gasket. Milling media are available here.

  • Milling media sold separately

  • The grinding jars are extensively applied to in the fields of Metallurgy, Ceramics, Electronics, Light Industry, Paint, Medicine, Geology, Chemical Engineering and so on.
Tungsten Carbide Milling Jars for Planetary Mill
Product # Volume (ml) OD (mm) ID (mm) Height (mm)
JA0804 50 48 38 58
JA0801 100 64 53 57
JA0803 250 86 74 68
JA0805 500 104 90 94
JA0802 1000 131 115 110

Features of Tungsten Carbide Mill Grinding Jar

    • Acid and alkali resistant; heat resistant; very good wear resistant; anti-oxidation
    • Grinding jars can be made in customized sizes to meet all kinds of requirements of planetary ball mills
    • High hardness, can meet the vast majority of metal powder crushing and refining.
    • SKU# : JA0801
    • Main Material : Tungsten Carbide --WC-YG6
    • Jar Volume : 50 mL~1000 mL
    • Max Loading Capacity : 2/3 capacity of the grinding jar
    • Density : 14.95g/cm3
    • Main Chemical Compositions : WC (94%), Cobalt (6%)
    • Surface Treatment : blank finish
    • Abrasion Resistance : very good
    • Attachment : lid and rubber sealing gasket
    • Grinding Balls : mixed Tungsten Carbide ball (should be ordered separately)
    • Hardness : 92.1 HRA
    • Suitable for : hard and abrasive samples

    Tungsten Carbide jar cleaning process

    1. Soaking: Soak the surface-stained hard alloy products in a solution of tartaric acid diluted with water or vinegar according to the proportion.
    2. Cleaning: The soaking duration is determined based on the size of the stains and the level of difficulty in removal, generally not exceeding 2 hours.
    3. Rinsing: After cleaning with the solvent, rinse with clean water to thoroughly remove any residue.
    4. Wiping: Use a dry cloth or absorbent paper to wipe off any remaining water stains on the surface.
    5. Drying: If available, use a drying machine or a hairdryer with hot air to quickly dry the products.
