MSE PRO 2 inch Si-doped N-type GaN 4.5 um Gallium Nitride Template on Sapphire (0001)

SKU: WA0204

  • $ 22995

Features for 2 in Si-doped N-type 4.5 um Gallium Nitride Template on Sapphire, SSP or DSP

Part No: WA0204 for SSP sapphire substrate, WA0223 for DSP sapphire substrate

  • Conductivity type: N-Type (Si-doped)
  • Sapphire Substrate Polish: Single side polish (SSP) or double side polish (DSP)

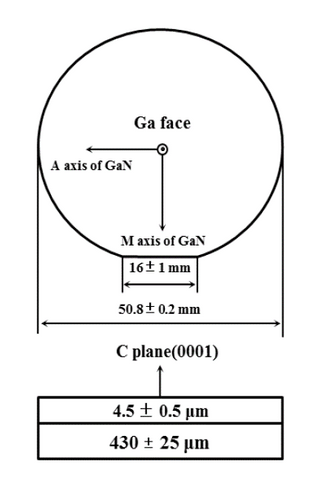

  • Dimension: 50.8 mm +/- 0.2 mm (2 inch diameter)
  • Thickness/Thickness STD:4.5 ±0.5 μm / < 3%
  • Usable area: > 90% (edge and macro defects exclusion)
  • Orientation of GaN: C plane (0001) off angle toward A-axis 0.2 ± 0.1 deg
  • Orientation Flat of GaN: (1-100) +/- 0.2 deg, length 16.0 +/- 1.0 mm
  • Resistivity (300K): < 0.05 Ohm-cm
  • Carrier concentration (~ doping concentration): > 1x1018 cm-3
  • Mobility > 200 cm2/V.s
  • Sapphire substrate thickness: 430 +/- 25 um
  • Orientation of sapphire substrate: C plane (0001) off angle toward M-axis 0.2 ± 0.1 deg
  • Orientation Flat of sapphire: (11-20) 0 ± 0.2 deg, length 16.0 +/- 1.0 mm
  • Structure: ~ 2 μm nGaN/~ 2.5 μm uGaN/~ 25 nm uGaN buffer/430 ±25 μm sapphire
  • Package: packaged in a clean room environment, in cassettes or single wafer containers.
