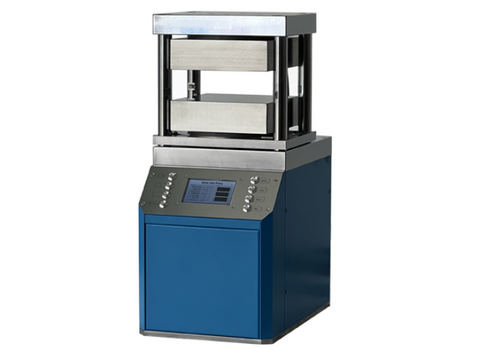

MSE PRO 25-Ton Automatic Benchtop Heated Lab Press (300°C) with Dual Flat Heating Plates (180x180 mm)
SKU: PR0333
MSE PRO™ 25-Ton Automatic Benchtop Heated Lab Press (300°C) with Dual Flat Heating Plates (180x180 mm)
The MSE PRO™ benchtop 25T automatic hydraulic heated lab press is designed for heated pressing of polymer, ceramic powder and electrode/membrane films (Manual style is available upon request). The water cooling jackets are installed with the heating plates to allow the heated plates to achieve fast cooling.
At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing. We also supply pellet pressing dies which are compatible with this press for pellet pressing.
MSE Supplies can offer heated lab presses with a heating plate size from 100x100 mm to 400x400 mm. We also have heated presses that can be heated up to 500 °C. Please contact us for your heated lab press.
| Brand | MSE PRO™ |
| Product SKU # |
PR0333 (without water chiller) PR0333-1 (with water chiller) |
| Pressure range | 0-25 Metric Tons |
| Working process | Programmed pressure increase-programmed pressure maintenance-timed pressure release (pressure release cannot be programmed) |
| Heating range | up to 300 °C |
| Temperature control accuracy | 0.1 °C |
| Pressure holding time | 0-999.59 Sec |
| Cooling mode | Air / Water cooling |
| Heating plate (MxN) | 180x180 mm |
| Hot press dimension (LxWxH) | 280mm x 420mm x 620 mm |
| Power supply | 110V/2000W |
| Net weight | 75kg |
| Warranty | Limited one year warranty, excluding damages caused by improper use |
| Note | Please clean the press after each use to ensure the best performance and longer life time |
