MSE PRO 30 mm Diameter Dry Pellet Pressing Die Set

30 mm Diameter Dry Pellet Pressing Die Set

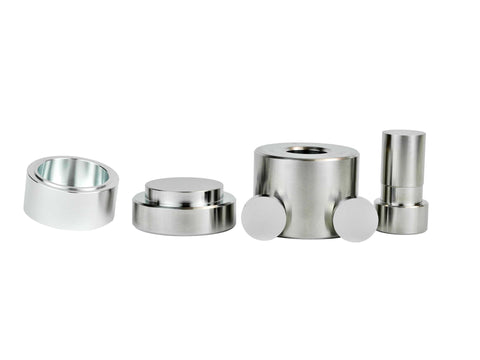

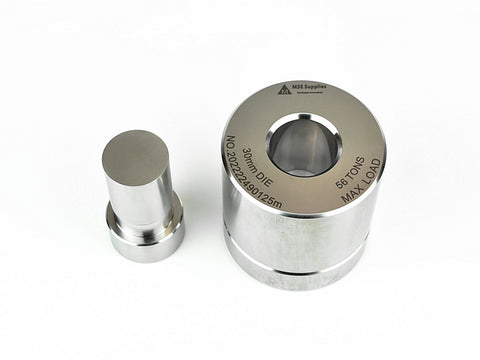

The 30 mm diameter dry pellet pressing die set uses pressure to compress powder into 30 mm pellets. The die is made from high quality, high hardness carbon steel, which ensures a successful compression of both ceramic and metal powders into pellet form. A common use of pellet pressing die sets is to create pellets of potassium bromide (KBr) for use in infrared spectroscopy. Additional uses for laboratory pellets can be found in the minerals, ceramic, or pharmaceutical industries.

In order to grind the desired materials into the correct granularity of powder (from millimeters to microns), we recommend using either our powder processing ball milling products & accessories or our agate mortar & pestle sets.

We don't recommend to use this pressing die set to press hard powder with size of 100 microns or smaller. Small particles may slip into the gap of the die parts and damage the sleeve during the compression. MSE Supplies is not responsible for the damage caused by improper use.

To avoid rust, store the pressing die set in a dry environment and clean after each use. If you do not intend to use for an extended period of time, it is recommended to apply some oil on the pressing die surfaces to avoid the formation of rust. MSE Supplies is not responsible for rust or damage caused by improper use. Please inspect the pressing die upon arrival. Pressing dies are considered consumables, the warranty only covers manufacturing defects.

Pressing die is considered as consumables which is not covered by warranty.

Click here to order the spacer and anvil replacements.

Specifications

• Product #: PR0123
• Core Diameter (ID): 30 mm
• Core Height: 45 mm
• Pressing Force: maximum 56 metric Ton
• Pressing Pressure: Less than 800 MPa (116 kPSI) is recommended, maximum 1200 MPa (174 kPSI)
• Rockwell Hardness: Rc >60

• Material: Hardened alloy steel, AISI D2 tool steel, equivalent to JIS SKD11 steel or GB Cr12MoV steel or DIN.EN 1.2379 steel

Pressing Die Set Pressing Force and Pressure Conversion
