MSE PRO™ 50X-1000X IMM-01 Inverted Metallurgical Microscope

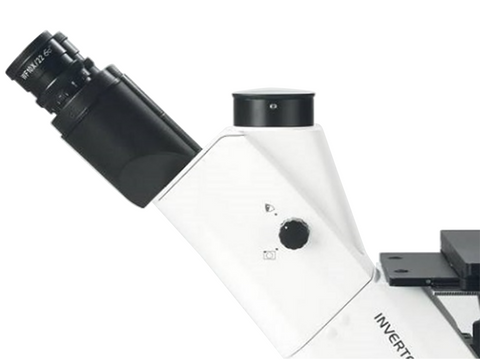

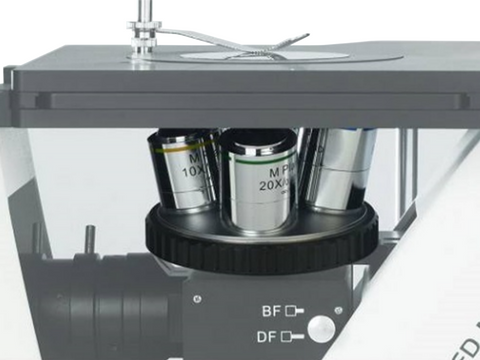

MSE Supplies offers an IMM-01 Inverted Metallurgical Microscope. The trinocular design allows a digital camera to be mounted for convenient data acquirement. With super wide field optics eyepiece, a polarizer and analyzer unit, a 5 holes nosepiece, a 50W halogen illuminator, and a three-layer mechanical stage with coaxial coarse & fine focusing, it is ideal for metallurgical studies such as grain boundaries, grain size, etc. and semiconductor studies such as circuits, chips, micro-electronics, etc.

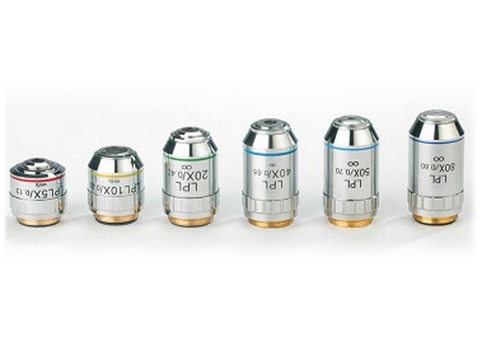

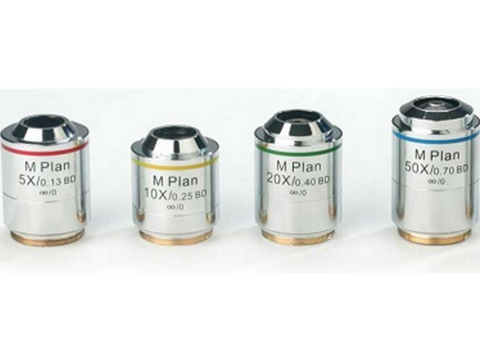

In order to achieve 1000X, Metallurgical LWD Infinity Plan Objectives LPL 100×/0.90 is needed at extra cost.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

The price is for standard unit. For different accessories, please contact us.

• Capable of bright field, dark field, polarizing observation etc.
• Widely used in metal, mineral, electronic field.

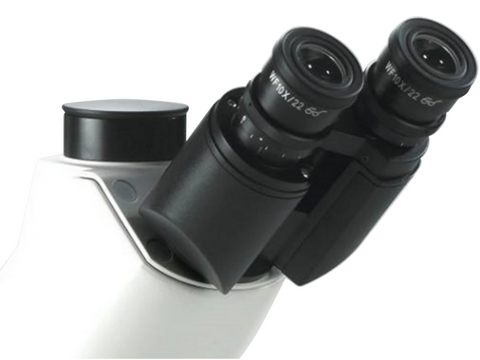

• Large view field eyepiece, view field up to 22mm for comfortable observation.

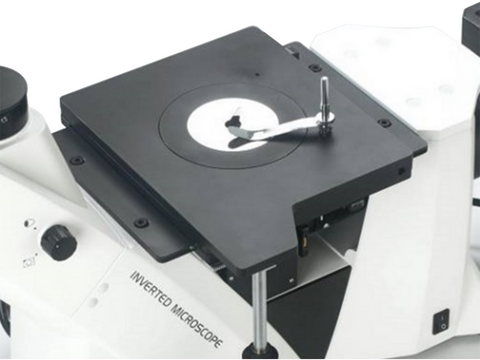

• Large working stage.
• Light distribution (both): 100:0 (100% for eyepiece);
                                           80:20 (80% for trinocular head and 20% for eyepiece).

Technical Data

• Packing Size: 660mm×590mm×325mm
• Gross Weight: 17kg
• Net Weight: 12.5kg
• Include one year warranty

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
