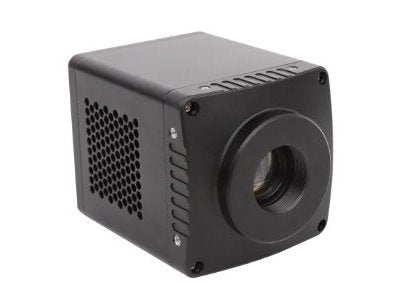

MSE Pro 900nm-1700nm Camera Link NIR Camera (0.33M 3/4" Buit-in TEC, FPS 517@640x512)
SKU: TPSWIR331KMA-CL500
MSE PRO™ 900nm-1700nm Camera Link NIR Camera (0.33M 3/4" Buit-in TEC, FPS 517@640x512)
MSE PRO™ provide 900nm-1700nm Camera Link NIR Camera (0.33M 3/4" Buit-in TEC, FPS 517@640x512).
This Short-Wavelength Infrared Camera is a C-mount short-wave infrared cooling Camera using a nationally produced 640 x 512 InGaAs image sensor, which have CameraLink / USB3 (under development) / 10GigE (under development) and other data transmission methods. It has the advantages of 900 - 1700nm short-wave infrared wide spectral response, 330,000 resolution, high quantum efficiency and low noise.
This Short-Wavelength Infrared Camera can be widely used in short-wave infrared imaging, spectral imaging, monitoring (night vision), semiconductor detection, medicine and biology, optical fiber communication, astronomy, high temperature imaging, humidity distribution imaging and other applications.
Key Features
- 724FPS high frame rate
- InGaAs SWIR Detector
- 640 x 512
- 15um pixel size
- 900nm-1700nm
- Global shutter
- Built-in TEC refrigeration chip, the temperature difference can reach 45 degrees Celsius below the ambient temperature
- PID precise temperature control, the fluctuation is less than 0.3 degrees
- CameraLink Full / USB3 (under development) / 10GigE (under development)
- 12-bit output (14-bit ADC)
- Multiple working modes: video mode/soft trigger mode/external trigger mode
- Support field update firmware
- Accept OEM custom development
| SKU | TPSWIR331KMA-CL500 |
| Sensor type and size |
0.33M / 640x512 3/4” (9.60x7.68) Buit-in TEC |
| Pixel size (um) | 15x15 |
| Data Interface | CameraLink |
| Camera Type | China produced devices |
| FPS/Resolution |
517@640x512 |
| Exposure Time |
16us~1s |
| General Parameters | |
|---|---|
| Sensor model | National production |
| Sensor type | InGaAs CMOS image sensor |
| Spectral range | 900nm-1700nm |
| pixel size | 15µm x 15 µm |
| Target size | 3/4” |
| ADC | 12-bit output /14-bit output (14-bit ADC) |
|
Frame Rate & Resolution |
517fps@640 x 512 |
| Memory | 512MB |
| QE | 75%@1350nm |
| Conversion gain | 970.01e-/DN(LG)，18.02e-/DN(MG)，3.31e-/DN (HG) |
| Conversion gain | 69.2dB(LG)，63.2dB(MG)，57.4dB(HG) x1 |
| Read noise | 1.3DN(LG)，2.7DN(MG)，5.0DN(HG) |
| Full well charge | 3.5Me(LG)，70Ke(MG)，12Ke(HG) x1 |
| Maximum SNR | 65.4dB(LG)，48.5dB(MG)，40.7dB(HG) |
| Dark current | 30fa@0.1V&18 ℃ |
| Exposure time range | 31.25us~1s |
| Shutter mode | Global shutter |
| Data interface | CameraLink Full |
|
Digital I/O |
1 optocoupler isolated input, 1 optocoupler isolated output |
| Data Format | Mono 12 / Mono 14 |
| Cooling temperature difference | Below room temperature 40 degrees Celsius |
| Camera Type | High performance |
| General Specifications | |
| Power supply | DC12V power supply |
| Power consumption | 8.4W(TEC OFF)/ <16W(TEC ON) |
| Temperature | Working temperature -30 ~ 60 ℃, storage temperature - 40 ~ 85 ℃ |
| Humidity | 20%-80% , non-condensing |
| Size | 68mm×68mm×90.3mm |
| Weight | 485g |
| Lens mount | C-mount interface |
| Software | Provide SDK development kit and CL View software based on Delsa acquisition card |
MSE Supplies offers a variety of Scientific-Grade Cameras. Please contact us for more information.
