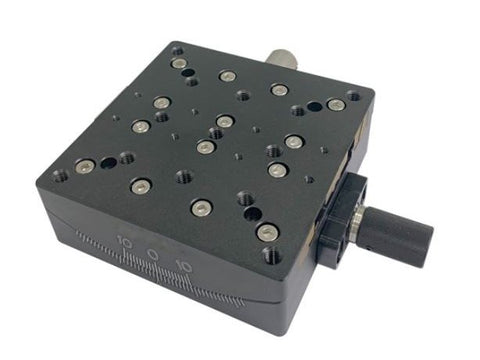

MSE PRO Aluminum Alloy Translation Stages (Angle ±20°, 100x100mm)

MSE PRO Aluminum Alloy Goniometer Stages (Angle ±20°, 100x100mm)

SKU: OPHS0225

  • $ 64995

MSE PRO™ Aluminum Alloy Goniometer Stages (Angle ±20°, 100x100mm)

MSE PRO™ provides Aluminum Alloy Goniometer Stages (Angle ±20°, 100x100mm). Goniometer Stages are precision tools designed for accurate manual angular adjustments in a variety of applications. Featuring ergonomic handles for smooth operation, these stages provide excellent stability and repeatability. Built with robust materials, they are durable and reliable, ideal for optical alignment, laser experiments, and calibration tasks. With flexible configurations to suit diverse needs, they offer a perfect balance of precision and simplicity for manual positioning.

Key Features

Table size

100mm×100mm

Angle range

±20°

Rotation center height

66.5mm

Rotation center deviation

φ0.1 mm

Drive mode

Worm gear drive

Guide rail type

Finely polished copper dovetail guide rail

Drive position

Central drive

Minimum scale

1°

Minimum reading

5′

Minimum adjustment

(Reference) 30″

Swing

200″

tilt

200″

Loading

15kg

Deadweight

0.68kg

Material

Aluminum Alloy

Surface treatment

Anodizing



MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
