MSE PRO Binocular 1.3M Build-in Camera Biological Microscope

MSE PRO Binocular 1.3M Build-in Camera Biological Microscope

SKU: BB0403

  • $ 94995

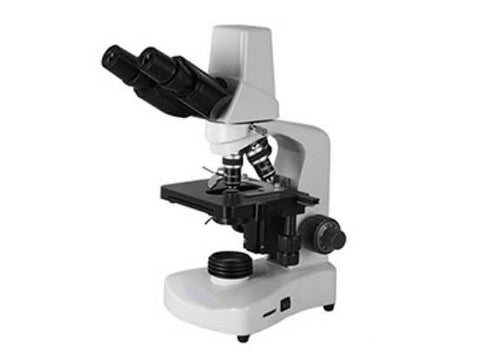

MSE PRO™ Binocular 1.3M Build-in Camera Biological Microscope

The MSE PRO™ Binocular 1.3M Build-in Camera Biological Microscope is a high-performance microscope designed for various applications, including research, education, and clinical settings. It features a comfortable and versatile binocular viewing head, a range of high-quality objectives, precise focusing mechanisms, and a powerful illumination system. The microscope also includes a mechanical stage for easy specimen manipulation and an imaging system for capturing and analyzing images.

  • Ergonomic Design: The binocular viewing head is inclined at 30° and rotatable 360°, offering comfortable viewing for extended periods. The interpupillary distance is adjustable for individual preferences.
  • High-Quality Optics: The microscope is equipped with a set of infinite plan achromatic objectives, providing sharp, clear, and distortion-free images across a wide field of view.
  • Precise Focusing: The coaxial coarse and fine focusing system allows for accurate and precise focusing adjustments, even at high magnifications.
  • Versatile Illumination: The halogen lamp provides bright and even illumination, while the Kohler illumination system ensures optimal image quality and contrast.
  • Imaging Capability: The 3M CMOS imaging system allows for capturing and analyzing images, making it ideal for documentation, research, and education.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE Supplies offers a variety of Biological Microscopes. Please contact us for more information.

Specifications:

SKU# Specification BB0403
Viewing Head Compensation Free Binocular Head. Inclined at 30°. Interpupilary Distance 48-75mm
Camera System
Valid Pixel 1280 x 1024 (1.3M Pixel)
1800 x 1200 (2.0M Pixel)
2048 x 1038 (3.0M Pixel) /
2052 x 1944 (5.0M Pixel) /
Output Mode USB2.0
Operation System WINDOWS7/8 2030 / KW VISTA
Software Scopelmage 9.0
Range of Viewing Field >90%(BMB-117M ); 18mm(BMB-300M)
Eyepiece WF10x/1 8
P16x/11
Extra wide filed eyepiece EW10x/20 with diopter adjustment /
Objective Achromatic Objective 4x, 10x, 40x, 100x
Infinite plan Achromatic Objective 4x, 10x, 40x, 100x /
Infinite Plan Achromatic Phase Objective 10x, 20x, 49x, 100x /
Oil Darkfield Objective with Iris Diaphragm 100x (NA0.36-1.25) /
Nosepiece Backward Quadruple Nosepiece
Quintuple Nosepiece /
Quadruple Nosepiece /
Stage Double Layers Mechanical Stage 140*140 mm. Moving range 75*50 mm
Condenser Abbe NA1.20 with Iris Diaphragm & Filter
Swing Condenser N.A.0.9/0.25 /
Turret Phase Contrast Condenser /
Dark Field Condenser (Dry) /
Dark Field Condenser (Oil) /
Focusing Coaxial Coarse & Fine Adjustment System, Range 24 mm. Fine Division 0.004 mm
Coaxial Coarse & Fine Adjustment System, Range 20mm /
Illumination LED 3W, Brightness Adjustable
Halogen Lamp 6V/20W. Brightness Adjustable
S-LED Powerful Illumination /
Power Supply AC 110-220V
Accessories Phase Contrast Kit
Dark-Field Attachment
Polarization Attachment

Note: ✓ Standard Outfit, • Optional, / without this feature
