MSE PRO BK7 Wedge Prisms with 1/4 Wave MgF<sub>2</sub> Coating@550nm, Ø3/2"

MSE PRO BK7 Wedge Prisms with 1/4 Wave MgF2 Coating@550nm, Ø3/2"

SKU: ACB7WP5-1.5-2

  • $ 6995

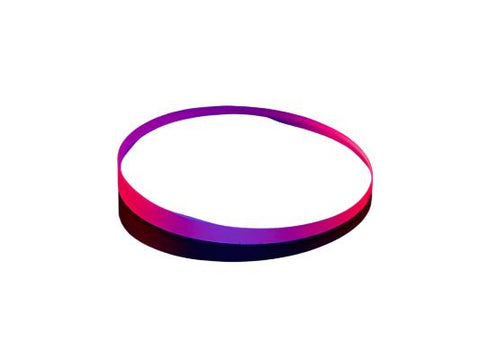

MSE PRO™ BK7 Wedge Prisms with 1/4 Wave MgF2 Coating@550nm, Ø3/2"

MSE supplies offers Ø3/2" BK7 Wedge Prisms with 1/4 Wave MgF2 Coating@550nm. An optical element has plane-inclined surface. Wedge prisms are used as small beam steering elements in optical systems. By combining two wedges of equal power (equal wedge angle) in near contact and independently rotating them, a ray passing through the combination can be steered in any direction within a narrow cone.

MSE Supplies can offer a variety of optical elements, with different angles and coating options. Please contact us for customization or bulk orders.

Technical Data:

Material BK7, fine annealed
Dimension Tolerance +0.0/-0.15
Flatness λ/4~λ
Surface Quality 60-40 scratch-dig
Clear Aperture 90% surface area
Coating 1/4 wave MgF2 coating at 550nm for 0° angle of incidence
Beam Deviation(e˚) ≈(n*-1)·α˚
